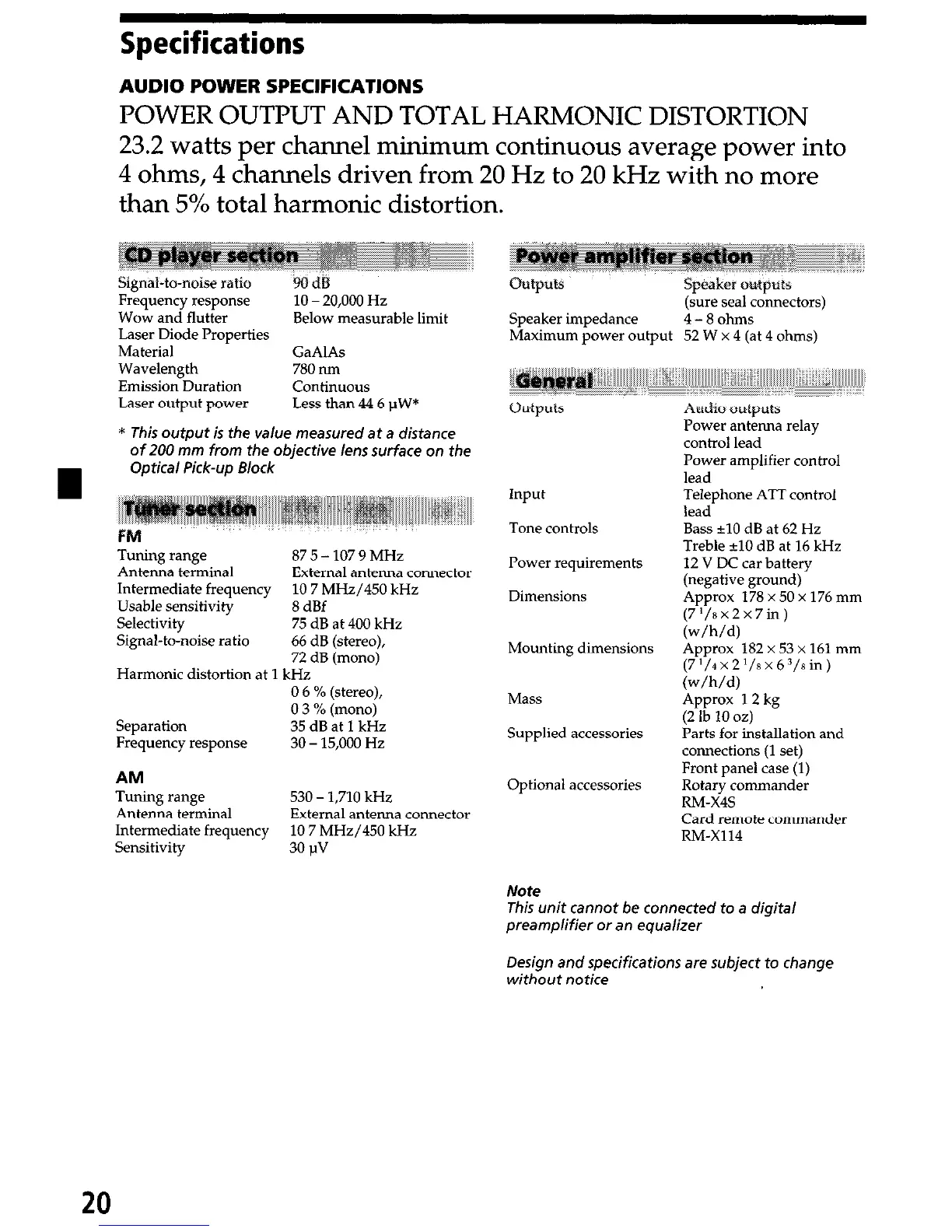

Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
Signal-to-noise ratio 9odB
Frequency response 10 - 20,000 Hz
Wow and flutter Below measurable limit
Laser Diode Properties
Material GaAlAs
Wavelength 780 nm
Emission Duration continuous
Laser output power Less than 44 6 VW*
* This output is the value measured at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block
Tuning range 875-1079MHz
Antenna terminal External antenna connector
Intermediate frequency 10 7 MHz/450 kHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 66 dB (stereo),
72 dB (mono)
Harmonic distortion at 1 kHz
0 6 % (stereo),
03%(mono)
Separation 35 dB at 1 kHz
Frequency response 30-15,000 Hz
AM
Tuning range 530-1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10 7 MHz/450 kHz
Sensitivity 3opv
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4-8ohms
Maximum power output
52 W x 4 (at 4 ohms)
Input
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Optional accessories
Audio outputs
Power antenna relay
control lead
Power amplifier control
lead
Telephone ATT control
lead
Bass +lO dB at 62 Hz
Treble +lO dB at 16 kHz
12 V DC car battery
(negative ground)
Approx 178 x 50 x 176 mm
(7'/8x2 x7 in)
(w/h/d)
Approx 182 x 53 x 161 mm
(7'/4~2'/ax6~/a in)
(w/h/d)
Approx 12 kg
(2 lb 10 oz)
Parts for installation and
connections (1 set)
Front oanel case (1)
Rota& commande;
RM-x4s
Card remote commander
RM-x114
Note
This unit cannot be connected to a digital
preamplifier or an equalizer
Design and specifications are subject to change
without notice
20
