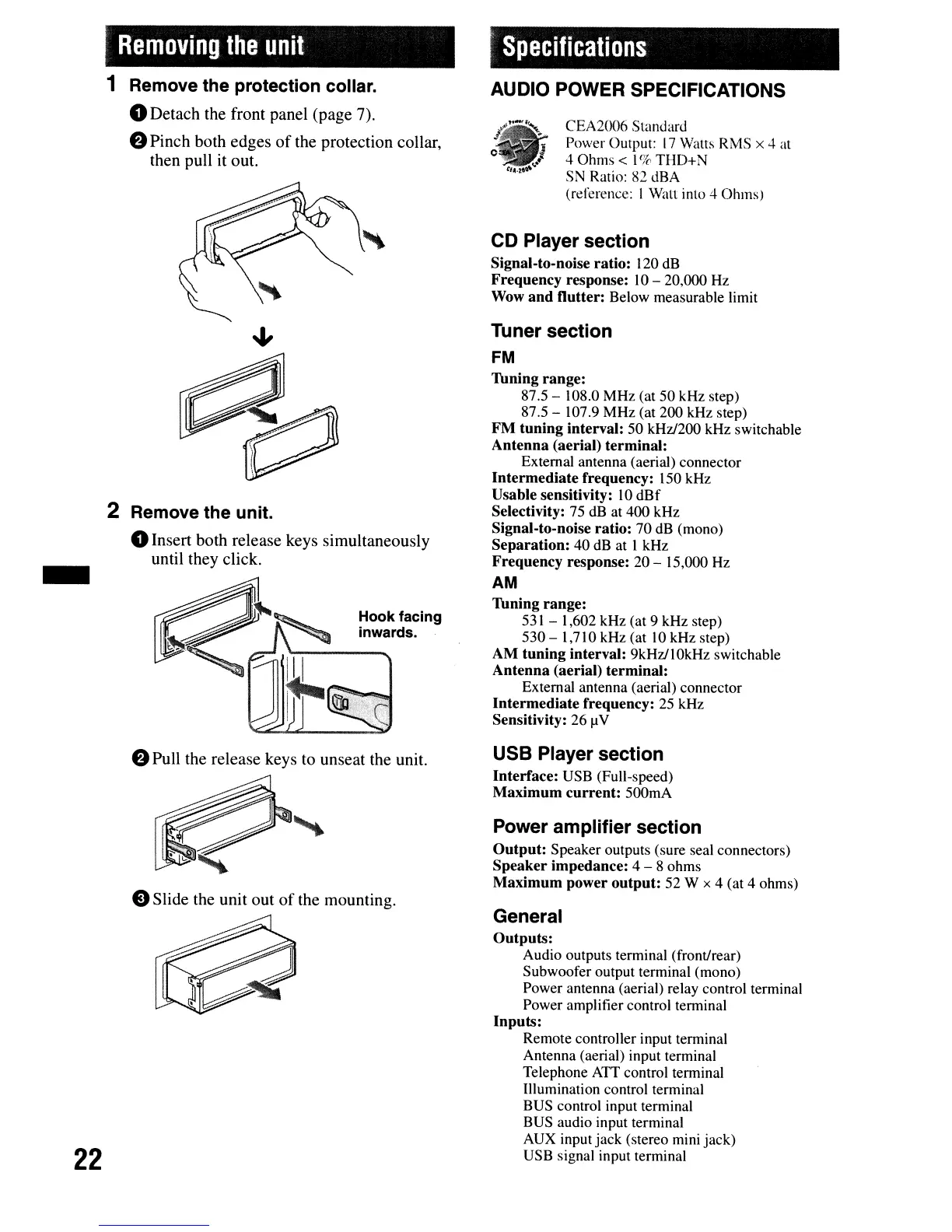

Removing the unit
1 Remove the protection collar.
oDetach the front panel (page 7).
ePinch both edges of the protection collar,
then pull it out.
2 Remove the unit.
oInsert both release keys simultaneously
until they click.
Hook facing
inwards.
, Specifications
AUDIO POWER SPECIFICATIONS
CEA2006 Standard
Power Output:
17 Watts RMS x 4 at
4 Ohms < 1% THD+N
SN Ratio: 82 dBA
(reference:
I Watt into 4 Ohms)
CD Player section
Signal-to-noise ratio: 120 dB
Frequency response: 10 - 20,000 Hz
Wow
and flutter: Below measurable limit
Tuner section
FM
Tuning range:
87.5 - 108.0 MHz (at 50 kHz step)
87.5 - 107.9 MHz (at 200 kHz step)
FM tuning interval: 50 kHzJ200 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150 kHz
Usable sensitivity:
10 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 70
dB (mono)
Separation: 40 dB at I kHz
Frequency response: 20 - 15,000
Hz
AM
Tuning range:
531 - 1,602 kHz (at 9 kHz step)
530 - 1,710 kHz (at
10 kHz step)
AM tuning interval: 9kHzJIOkHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Sensitivity: 26
~V
22
ePull the release keys to unseat the unit.
eSlide the unit out of the mounting.
USB Player section
Interface: USB (Full-speed)
Maximum current: 500mA
Power amplifier section
Output: Speaker outputs (sure seal connectors)
Speaker impedance: 4 - 8 ohms
Maximum power output: 52 W x 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
Telephone
ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input terminal
AUX input jack (stereo mini jack)
USB signal input terminal
