ICF-CD73/CD73V

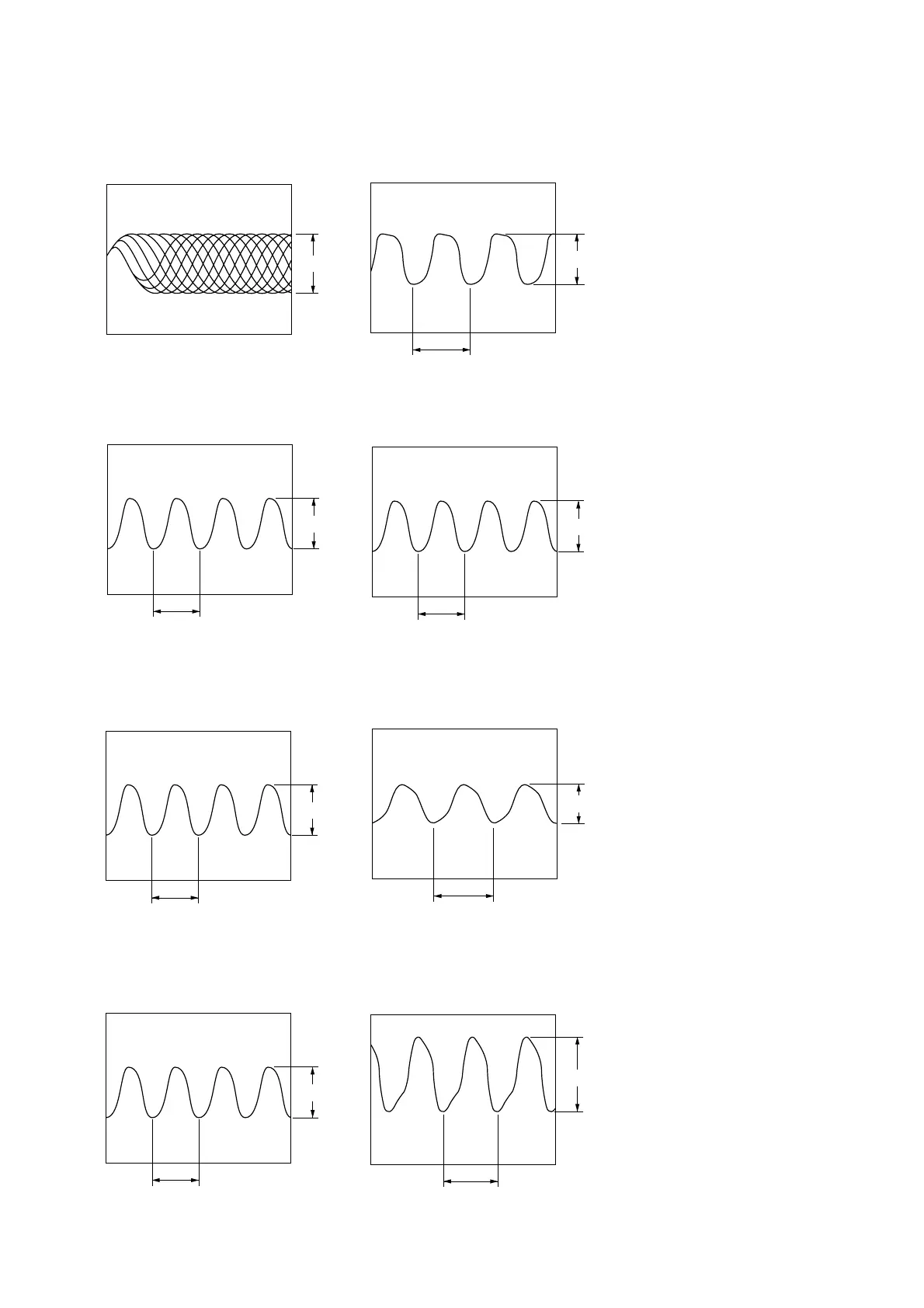

• Waveforms
– CD Board –
1 IC701 4 (RF) (CD Play mode)
qs IC2 w; (XOUT) (ICF-CD73V)
– LCD Board –
wa IC401 ua (XT2)
3.1 Vp-p
238.6 ns
2.0 Vp-p
59.1 ns
ws IC401 ug (X2) (CD Play mode)
3.2 Vp-p
30.5 µs
– POWER Board –
ea Q304 (Collector) (Tuner Mode)
1.0 Vp-p
13.3 µs
1.7 Vp-p
13.3 µs
– TUNER Board –
qa IC2 w; (XOUT) (ICF-CD73)
460 mVp-p
32.3 µs
es Q305 (Collector) (Tuner Mode)
3.8 Vp-p
32.3 µs
2 IC701 rk (XOUT) (CD Play mode)
1.2 Vp-p
