Sony CF-CD73 - Page 57

3
ICF-CD73/CD73V
adhesive agent

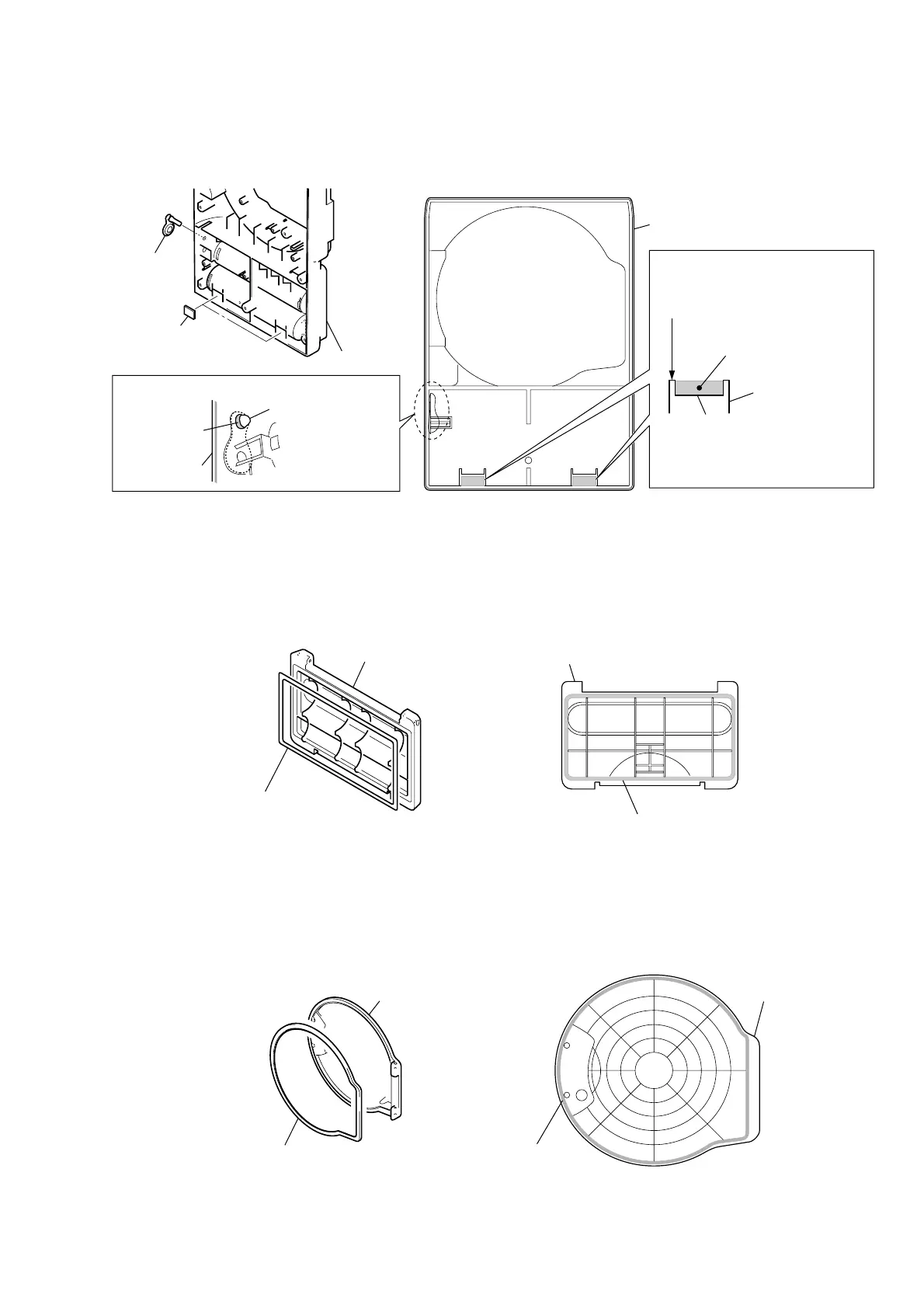

– CABINET (REAR) SECTION –
– BATTERY CASE LID –
– CD LID –
cover (DC)
sheet (buckle)
cabinet (rear)
cabinet (rear)
cabinet (rear)
cabinet (rear)
cover (DC): protrusion
Apply along the groove.
Apply along the groove.
– SECTIONAL VIEW –
– CABINET (REAR): INSIDE –
Note: Attach the sheet (buckle) and cover (DC) to the cabinet (rear), and then apply an adhesive agent.
Note: Do not apply an adhesive agent
except the specified range.
Note: Apply an adhesive agent before attaching the packing (battery) to the battery case lid.
Note: Apply an adhesive agent before attaching the packing (CD) to the CD lid.
adhesive agent
hole
battery case lid
battery case lid
packing (battery)
packing (CD)
CD lid
CD lid
Apply so as to be flush
with this surface.
