Sony CFD-980 - SECTION 3 DISASSEMBLY; CABINET COMPONENTS

— 11 —

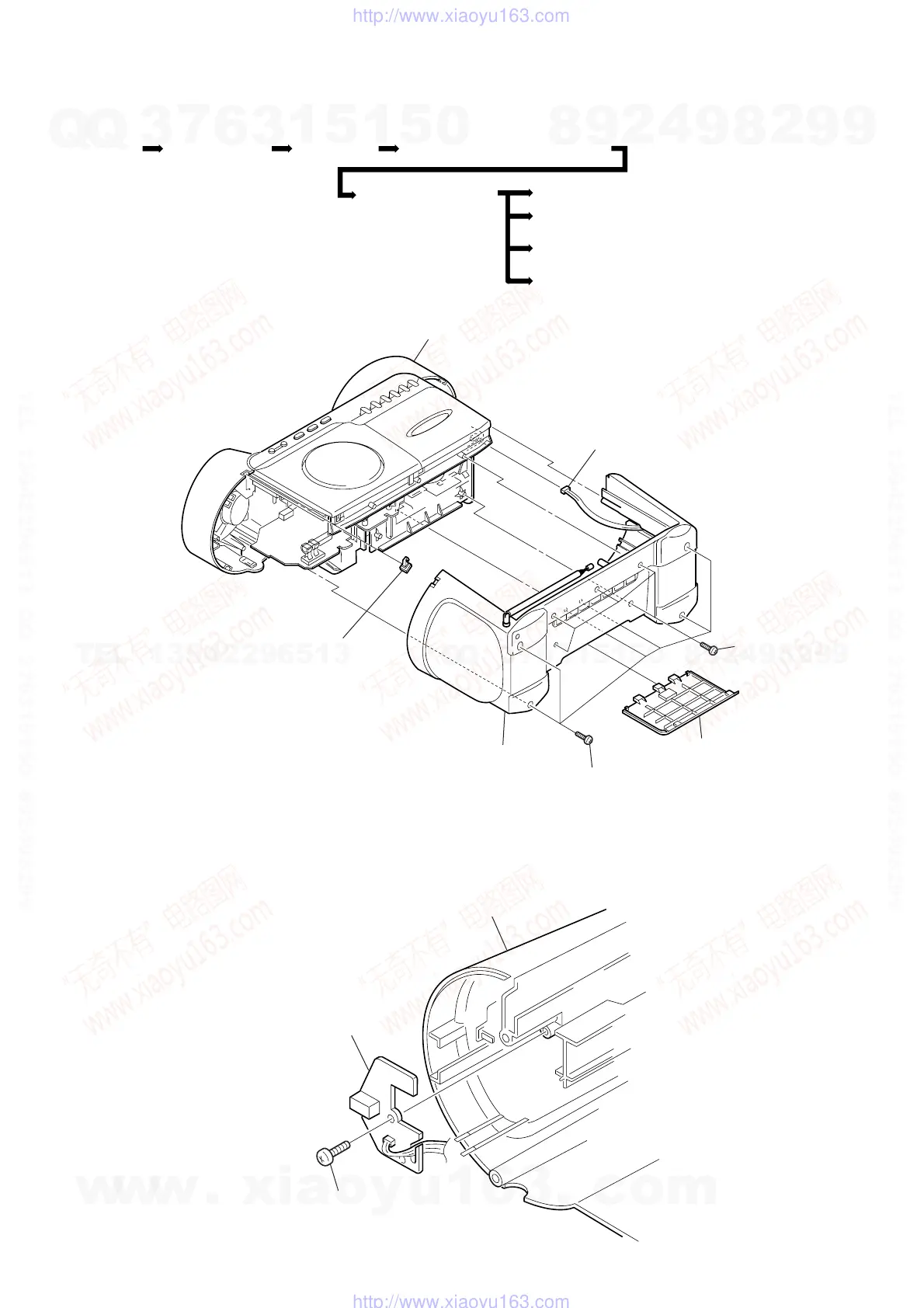

SECTION 3
DISASSEMBLY
2 DC board
1 Screw (+BV 3 × 10)
Rear cabinet
Note : Follow the disassembly procedure in the numerical order given.
REAR CABINETSET
DC BOARD
BATTERY CASE / TUNER BOARD /
RESET BOARD
CABINET SUB ASSY,
FRONT / MAIN BOARD
CONTROL PANEL / SW1 BOARD
POWER SW BOARD / H/P BOARD
OPTICAL PICK-UP (KSM-213CAM) SECTION /
SW2 BOARD
REC BOARD / MECHANISM DECK (MF-980-146) SECTION
Front cabinet
5 CN318
1 Lid, battery case
6 Rear cabinet
4 Catcher, antenna
3 Screws 6pcs
(+B 3 × 20)
2 Screws 5pc
s
(+BV 3 × 12
)
3-1. REAR CABINET
3-2. DC BOARD
