SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 51 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• Abbreviation
CND : Canadian
1 3-017-929-01 LID, BATTERY CASE (YELLOW)
1 3-017-929-11 LID, BATTERY CASE (BLACK) (AEP)
* 2 A-3306-941-A TUNER BOARD, COMPLETE (US, CND)
* 2 A-3306-948-A TUNER BOARD, COMPLETE (AEP)
3 3-017-964-01 CASE, BATTERY (YELLOW)
3 3-017-964-11 CASE, BATTERY (BLACK) (AEP)
4 3-017-953-01 SPRING (L) (+, –), BATTERY
5 3-017-955-01 SPRING (S) (+, –), BATTERY
* 6 1-667-644-11 BATTERY BOARD
7 3-939-057-01 SPRING (–), BACK UP
8 3-017-954-01 SPRING(L) (–), BATTERY
* 9 1-668-684-11 RESET BOARD (US,CND)
10 3-911-135-01 SCREW (2.6 × 10), (+PWH) TAPPING
11 3-017-947-01 CABINET, REAR (YELLOW)
11 3-017-947-11 CABINET, REAR (BLACK) (AEP)
12 3-017-948-01 TERMINAL, ANTENNA
* 13 1-667-642-11 DC BOARD
14 3-352-215-11 PACKING (JACK)
15 3-017-949-01 RUBBER (1), REAR
16 3-017-950-01 RUBBER (2), REAR
17 1-533-217-31 FUSE HOLDER
18 3-017-967-01 RUBBER (3), REAR
19 3-017-968-01 RUBBER (4), REAR
ANT1 1-501-947-11 ANTENNA, TELESCOPIC (YELLOW)
ANT1 1-501-947-21 ANTENNA, TELESCOPIC (WHITE) (AEP)
L3 1-501-762-11 ANTENNA,FERRITE-ROD(MW)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

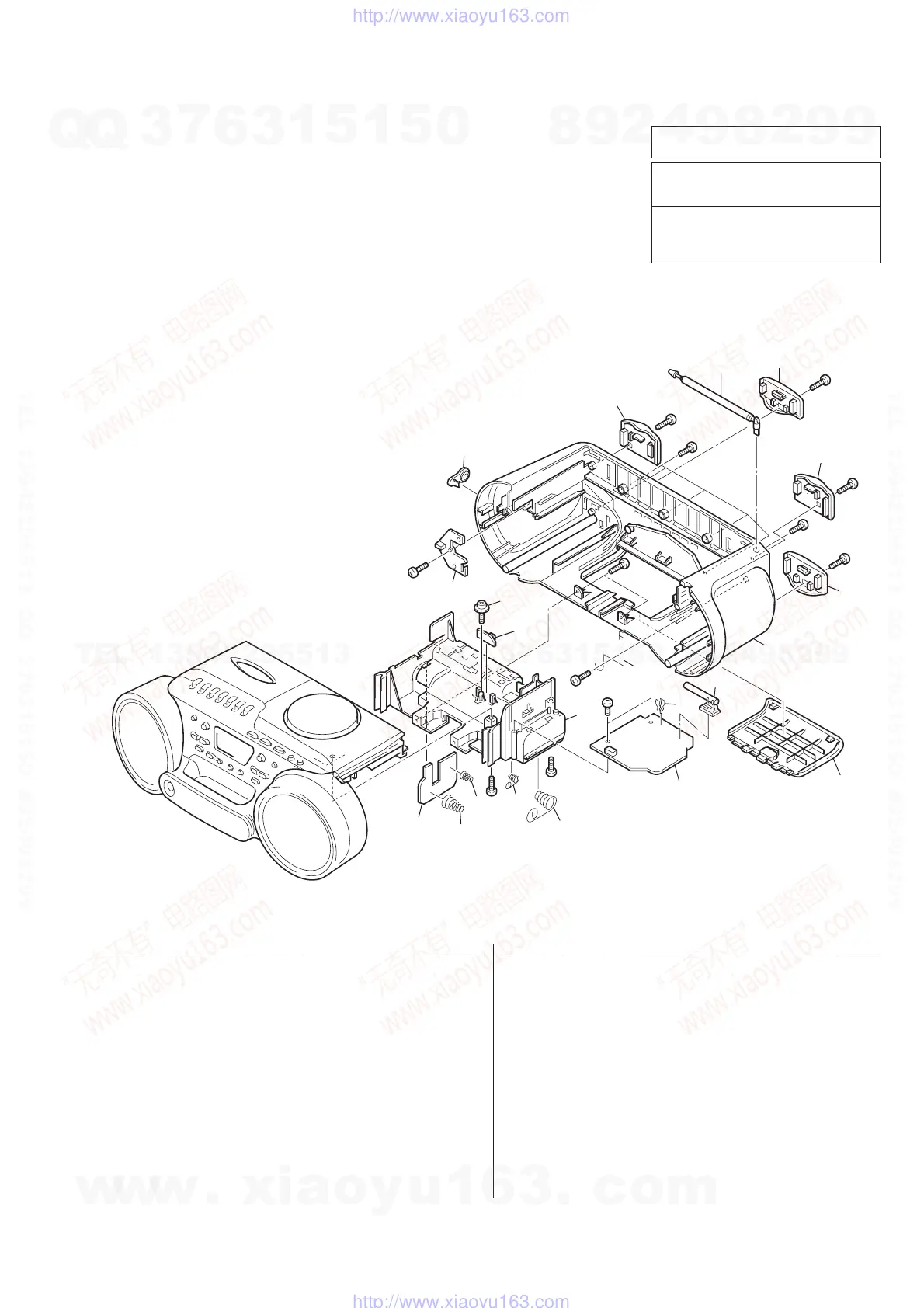

6-1. REAR CABINET SECTION
