Sony CFD-980 - Battery Case; Tuner Board; Reset Board; Cabinet Sub Assy, Front; Main Board

— 12 —
Upper cabinet
2 CN309
3 CN320
6 RESET boar
d
9 TUNER board
7 CN1
4 Battery case
1 Screws 2pcs (+BV 3 × 12)
8 Screw
5 Screw

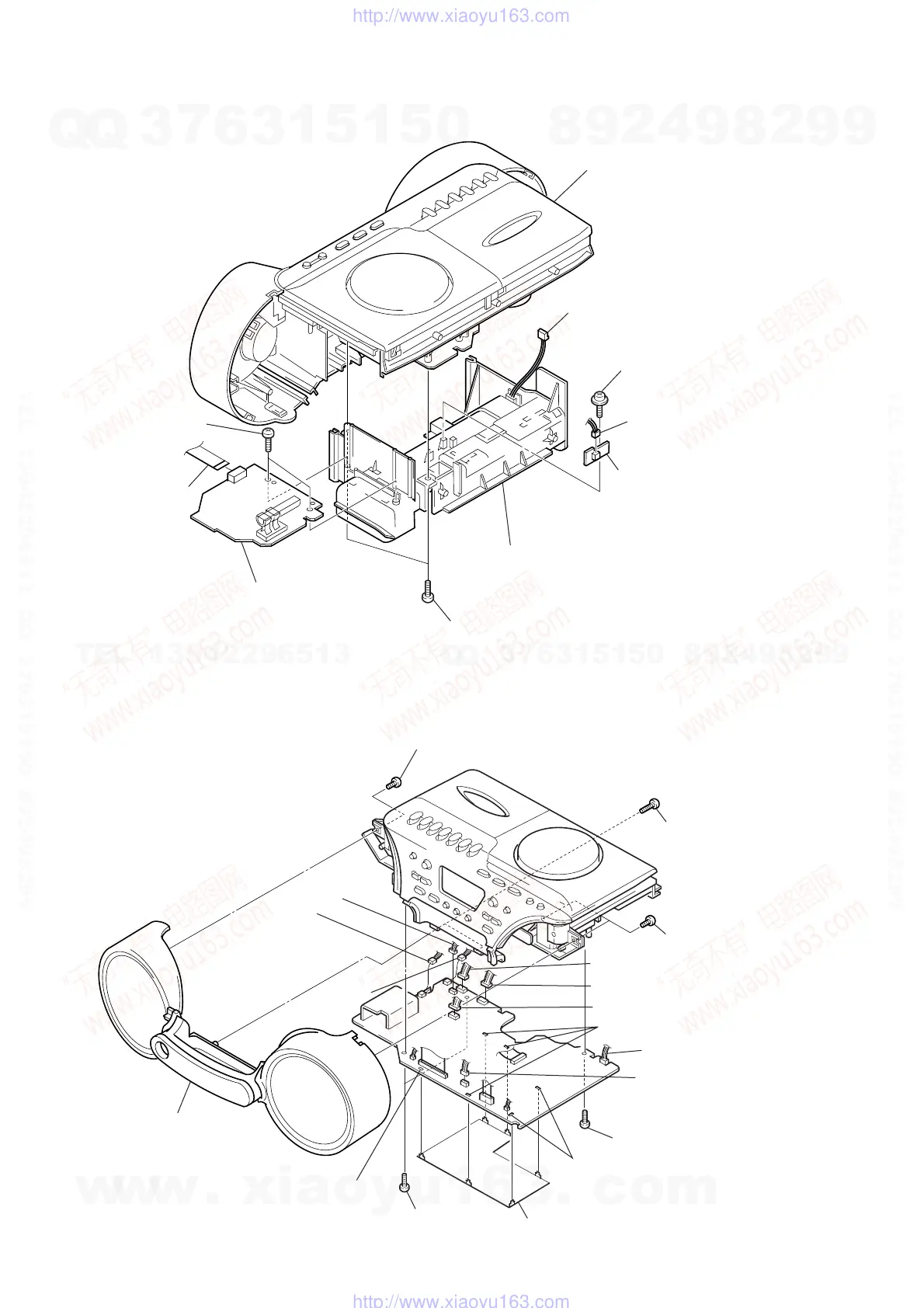

3-3. BATTERY CASE / TUNER BOARD / RESET BOARD
3-4. CABINET SUB ASSY, FRONT / MAIN BOARD
1 Screw (+B 3 × 20)
1 Screws 2pc
s
(+B 3 × 20)
4 Screw (+BV 3 × 12)
4 Screws 2pcs
(+BV 3
× 12)
3 Cabinet sub assy, front
5 CN302
7 CN305
8 CN309
6 CN318
9 CN304
8 CN702
!º CN301
!¡ CN315
!™ Shield case, Main
Remove solder
Remove solder
Remove solder
2 Screws 2pcs
(+BV 3
× 12)
