— 53 —
* 101 A-3293-761-A MAIN BOARD, COMPLETE (US, CND)
* 101 A-3293-763-A MAIN BOARD, COMPLETE (AEP)
102 3-911-135-01 SCREW (2.6 × 10), (+PWH) TAPPING
103 3-931-379-31 RUBBER, VIBRATION PROOF
104 3-931-379-21 RUBBER, VIBRATION PROOF
105 3-017-957-01 SPRING, TENSION
106 3-923-736-01 COVER, CD
* 107 1-667-641-11 REC BOARD
108 X-3374-447-1 BUTTON SUB ASSY, MD
109 3-017-937-01 BRACKET, REC
110 1-667-645-11 SW2 BOARD
111 3-017-933-01 HOLDER, CASSETTE
112 3-017-942-01 SPRING, CASSETTE UP
113 X-3374-449-1 LID SUB ASSY, CASSETTE
114 3-017-941-01 PACKING (MD)
115 3-017-945-01 PACKING (VOLUME)
116 3-017-946-01 WINDOW, AZIMUTH
117 3-017-878-11 SLIDER, PUSH
118 3-023-761-01 SPRING, CD COIL
119 1-692-960-11 SWITCH, PUSH (1 KEY)
120 3-926-926-01 GEAR, DAMPER
121 3-017-943-01 SPRING (CD UP)
122 3-017-963-01 BRACKET (CLOSE)
123 1-639-678-12 CD MOTOR BOARD
124 3-351-377-11 GEAR, DAMPER
125 3-017-934-01 CD LID
125 3-017-934-11 CD LID (AEP)
126 1-452-952-11 MAGNET
127 3-017-951-01 PLATE, CHUCKING
128 X-3374-494-1 CABINET SUB ASSY, UPPER
129 1-782-832-11 WIRE,PARALLEL(14 CORE)
130 1-782-830-11 WIRE, PARALLEL (16 CORE)
131 3-023-759-01 SCREW +B 3 × 10
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

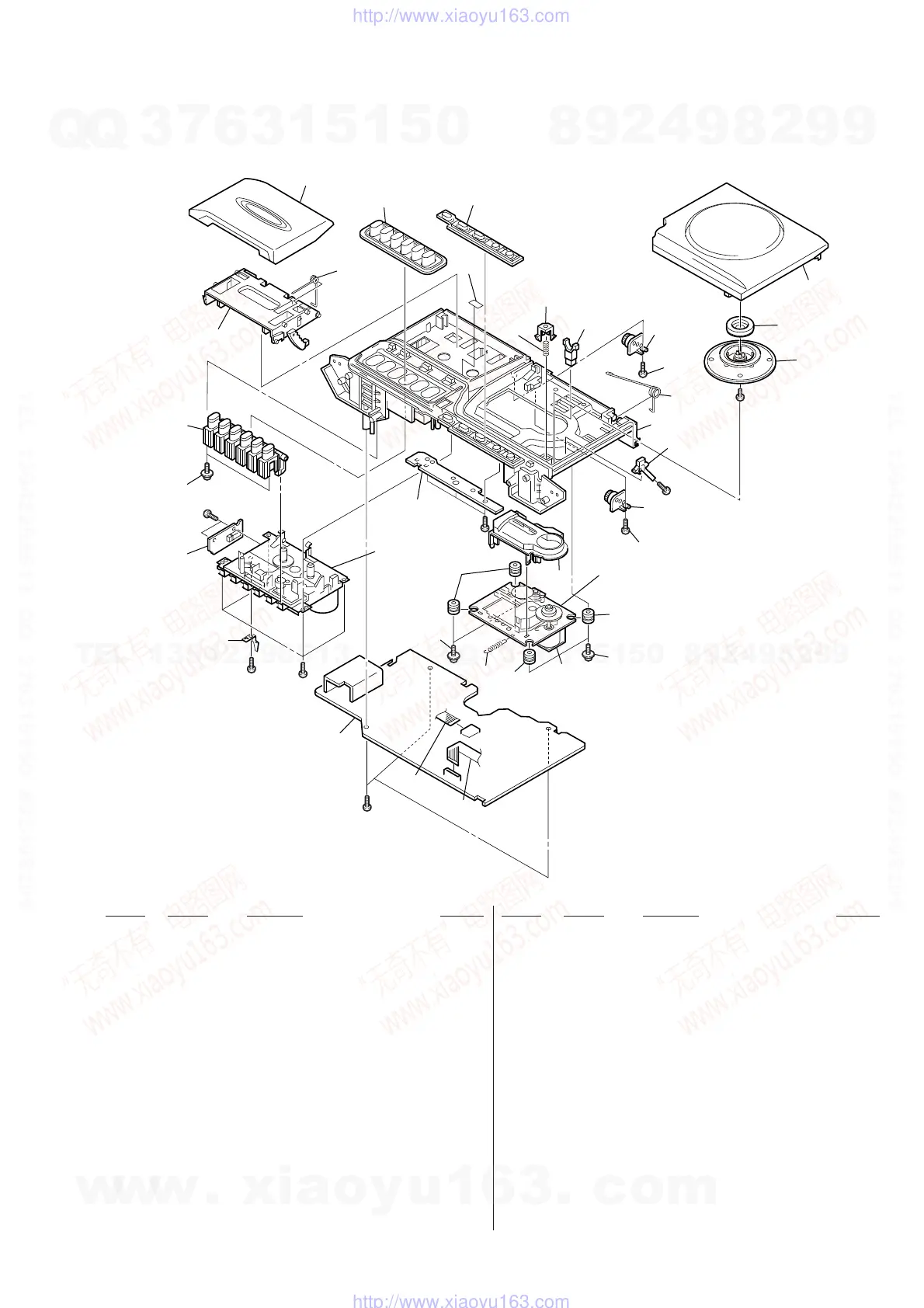

6-3. UPPER CABINET SECTION
114
115
116
117
119
118
120
121
125
126
127
122
128
123
124
106
103
103
129
130
102
102
104
110
105
101
107
109
102
108
111
112
113
#4
#10
#5
#3
#6
KSM-213CAM
MF-980-146
#7
#1
131
