Sony CFD-E77L - Head (HRP301), Motor Assy (M301), Belt; Connector Setting

13
CFD-E77L

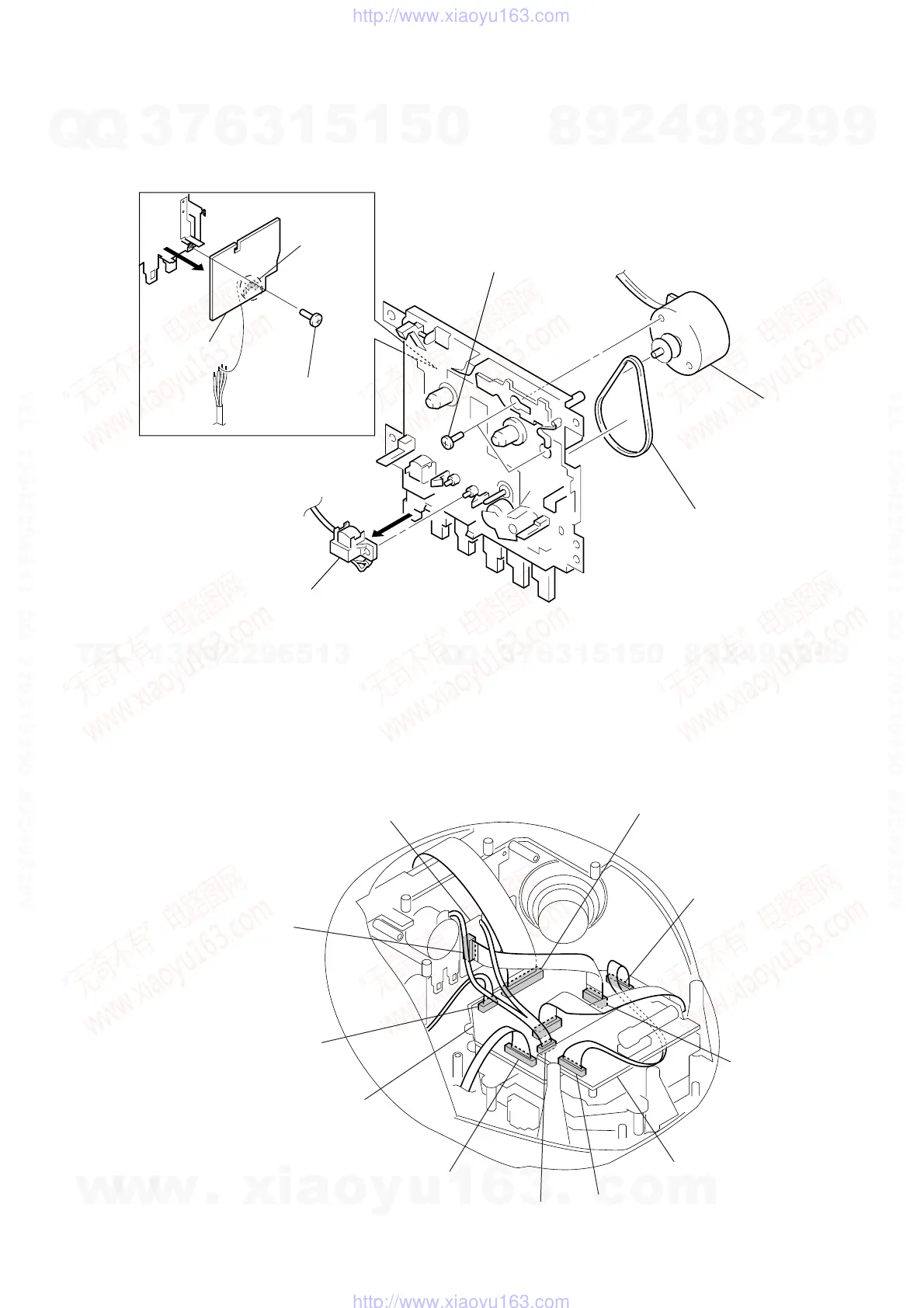

3-13. CONNECTOR SETTING
MAIN board
TUNER board
CNP1
CNP321
CN322
CNP802
CNP801
CN303
TC board
CN321
CNP322
Note: When connecting leads, set it as shown in the figure.
3-12. HEAD (HRP301), MOTOR ASSY (M301), BELT
6 two screws
(B2.6
× 5)
7 motor assy (M301)
8 belt
5 head (HRP301)
1 screw
(BVTT2
× 6)
3 Remove
four solders.
4 TC board
2
