47
CFD-E77L

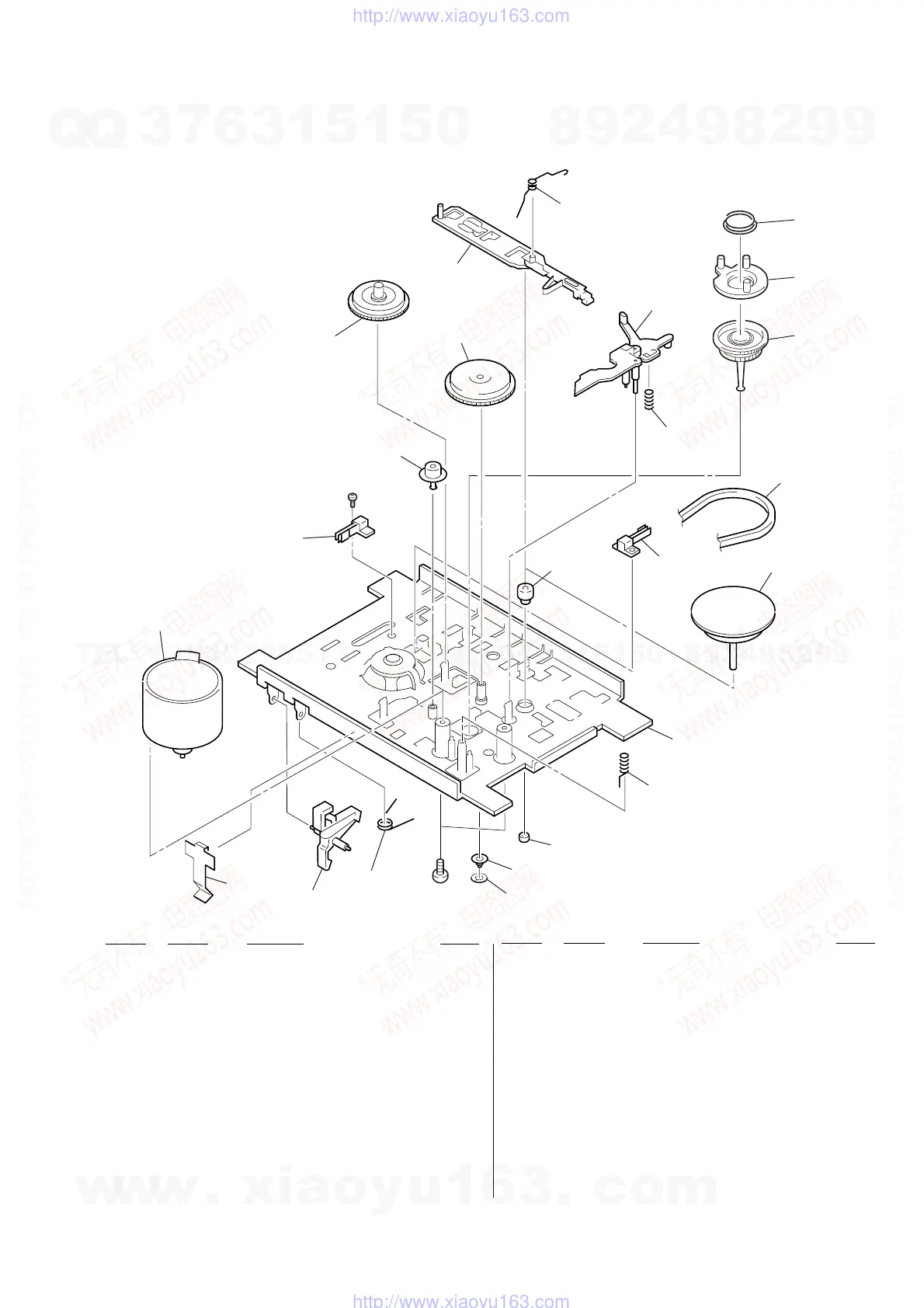

7-7. TAPE MECHANISM DECK SECTION-2
(MF-V5-117)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
751 3-933-029-01 LEVER, ERASING PREVENTION
752 3-933-182-01 SPRING, CASSETTE
753 3-932-995-01 GEAR (MID)
754 X-3371-667-1 CLUTCH ASSY
755 3-932-997-01 GEAR (CAM)
* 756 3-932-999-01 SLIDER (SW)
757 3-932-998-01 SPRING (GROUND), TORSION
758 3-009-648-01 LEVER (S.OFF)
759 3-936-438-01 LEVER (K)
760 X-3373-572-1 REEL ASSY (N), T
761 3-933-020-11 BELT
762 X-3377-877-3 FLYWHEEL ASSY
763 3-932-993-01 CHASSIS, OUTSERT
764 3-343-358-01 RING, RETAINING
765 3-933-005-01 SPRING (CAM), COMPRESSION
766 3-016-349-01 WASHER
767 3-937-760-01 SPRING (GROUND), COMPRESSION
768 3-934-336-01 BEARING
769 3-939-383-02 SPRING, COMPRESSION
770 3-009-650-02 SPRING (K), COMPRESSION
772 3-023-780-01 SPRING
M301 A-3320-446-A MOTOR ASSY (WITH PULLEY)
(CAPSTAN/REEL)
S303 1-762-679-11 SWITCH, LEAF (MOTOR ON/OFF)
S304 1-771-059-11 SWITCH, LEAF (TAPE PLAY)
#9 7-621-770-87 SCREW +B 2.6X5
#10 7-685-783-09 SCREW +PTT 2X6 (S)
760
759
770
S304
S303
757
756
754
753
758
769
755
761
762
763
767
768
M301
764
765
766
772
752
#10
#9
751
