CFD-E77L
AM IF ADJUSTMENT
Adjust for a maximum reading on level meter
T1 450 kHz
MW VCO VOLTAGE ADJUSTMENT
Frequency Display Reading on Digital Voltmeter
531 kHz 0.9 ± 0.5 V
1,611 kHz 5.2 ± 0.6 V
MW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L3-1 621 kHz
CT3 1,404 kHz
LW VCO VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on Digital Voltmeter
L4 153 kHz 0.6 ± 0.3 V
Confirmation 279 kHz 5.0 ± 0.15 V
LW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L3-2 162 kHz
CT5 261 kHz
FM IF ADJUSTMENT
Adjust for a minimum reading on level meter
T2 10.7 MHz
FM VCO VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on Digital Voltmeter
L2 108 MHz 3.0 ± 0.3 V
Confirmation 87.5 MHz 1.3 ± 0.4 V
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L1 87.5 MHz
CT1 108 MHz
Adjustment Location: TUNER and POWER board (See page 16)
TUNER SECTION 0 dB=1 µV
[MW/LW]
Setting:
Function : RADIO
RADIO BAND button : MW or LW
[FM]
Setting:
Function : RADIO
RADIO BAND button: FM
• Repeat the procedures in each adjustment several times, and the
tracking adjustments should be finally done by the trimmer ca-
pacitors.
• Remove FM antenna in FM adjustment.

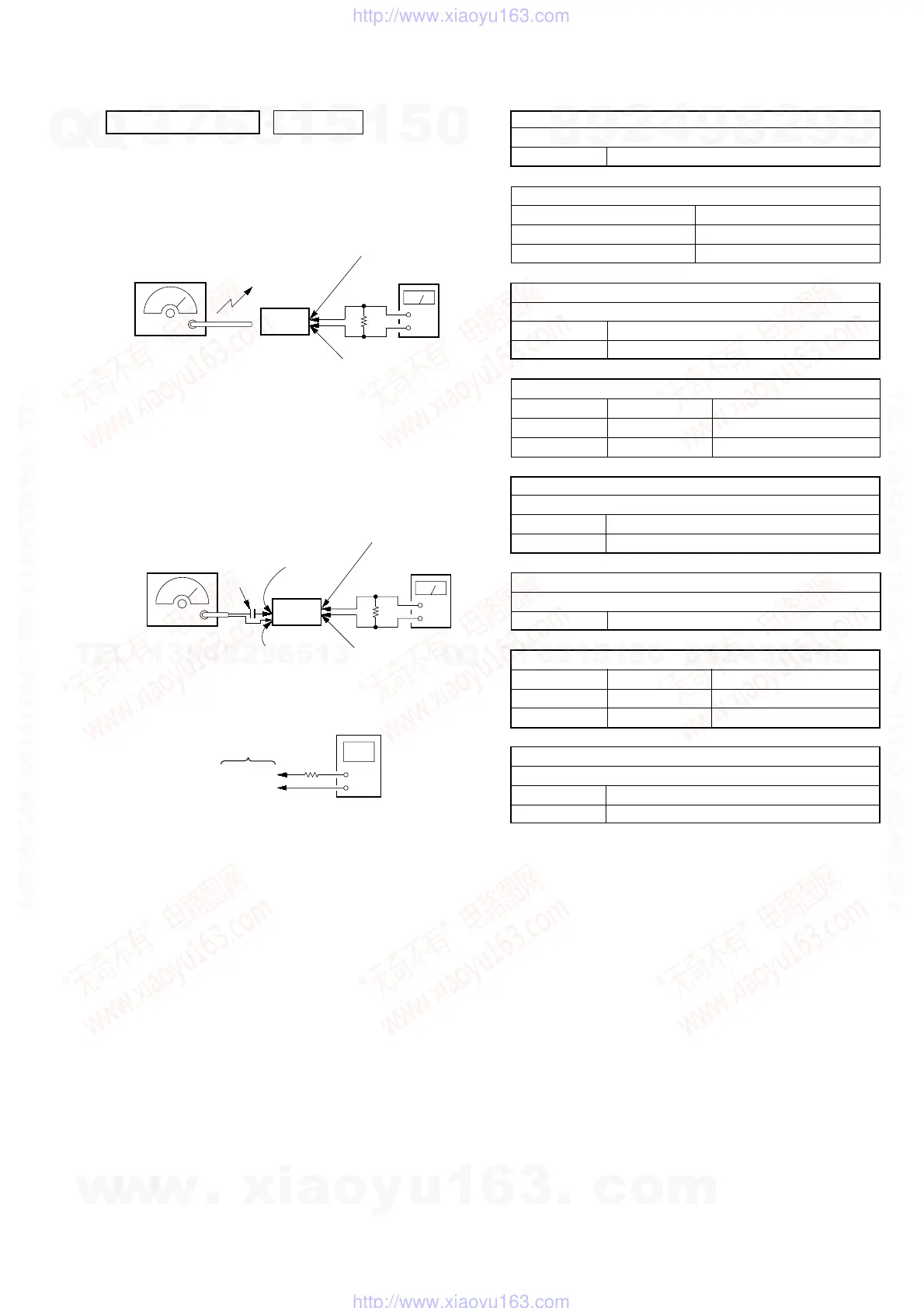

AM RF signal
generator
30% amplitude
modulation by
400 Hz signal
Output level:
as low as possible
Put the lead-wire
antenna close to
the set.
+
–
level mete
set
3.2 Ω
POWER board
CNP392 pin 2
POWER board
CNP392 pin 1
FM RF signal
generator
22.5 kHz frequency
deviation by 400 Hz
signal
Output level:
as low as
ossible
+
–
level meter
POWER board
CNP392 pin 2
POWER board
CNP392 pin 1
set
3.2 Ω
0.01 µF
TUNER board
TP (GND)
TUNER board
TP (ANT)
digital voltmete
TP (VT)
TP (GND)
