43
CFD-E77L

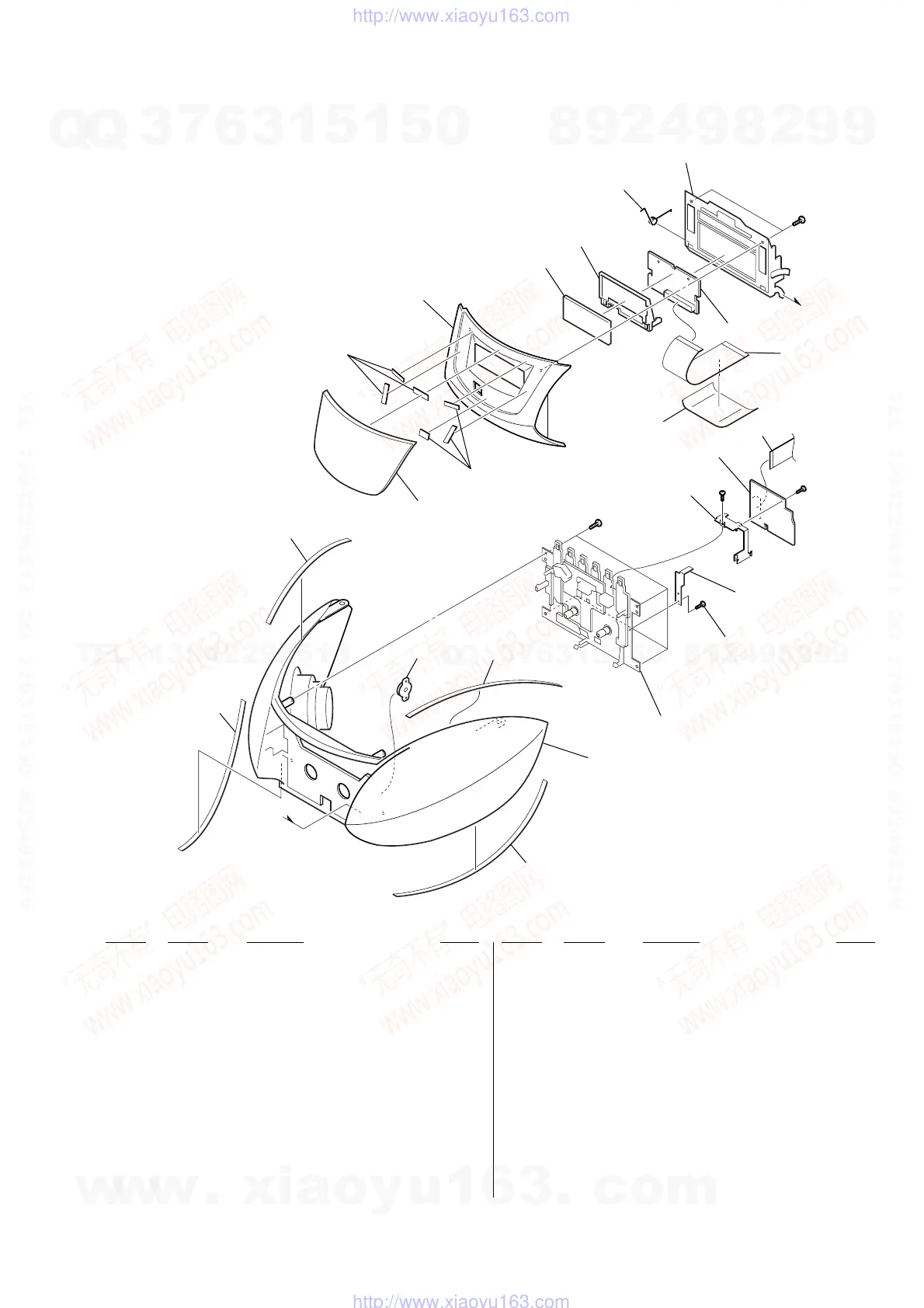

7-3. CABINET FRONT SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-757-967-11 FFC CABLE 27P
102 3-229-989-01 HOLDER LCD
* 103 1-681-675-13 LCD BOARD
104 3-229-993-01 SPRING CASSETTE
105 3-241-091-01 HOLDER CASSETTE (BLUE)
105 3-241-091-11 HOLDER CASSETTE (SILVER)
105 3-241-091-21 HOLDER CASSETTE (YELLOW)
106 3-229-992-21 WINDOW CASSETTE (BLUE)
106 3-229-992-31 WINDOW CASSETTE (SILVER)
106 3-229-992-41 WINDOW CASSETTE (YELLOW)
107 3-230-319-01 TAPE (CST WINDOW), DOUBLE-FACE
108 3-241-092-01 LID CASSETTE (BLUE)
108 3-241-092-11 LID CASSETTE (SILVER)
108 3-241-092-21 LID CASSETTE (YELLOW)
109 3-343-248-01 DAMPER (P), SMALL
110 3-222-726-01 CHASSIS (TC)
* 111 1-757-969-11 FFC CABLE 13P
* 112 A-3347-189-A TC BOARD, COMPLETE
113 3-231-847-01 LEVER (REC)
114 4-951-620-01 SCREW (2.6X8), +BVTP
115 X-3382-241-1 CABINET FRONT SUB ASSY (L)
116 3-233-633-01 SHEET, PE FOAM
117 3-232-615-01 SHIELD, PAPER
LCD801 1-804-401-11 DISPLAY PANEL, LIQUID CRYSTAL
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-685-853-04 SCREW +BVTT 2X6 (S)
#6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
101
117
103
115
116
116
102
104
106
105
tape deck section
(MF-V5-117)
#3
#6
#5
#5
LCD801
107
107
108
109
114
113
110
112
111
116
116
