44
CFD-E77L
151
152
153
#6
not supplied
not
supplied
not supplie
not supplied
not supplied
#7
ANT1
#8
#8
#6
#6
T901
155
156
166
157
154
160
159
158
161
162
156
163
164
165
166
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

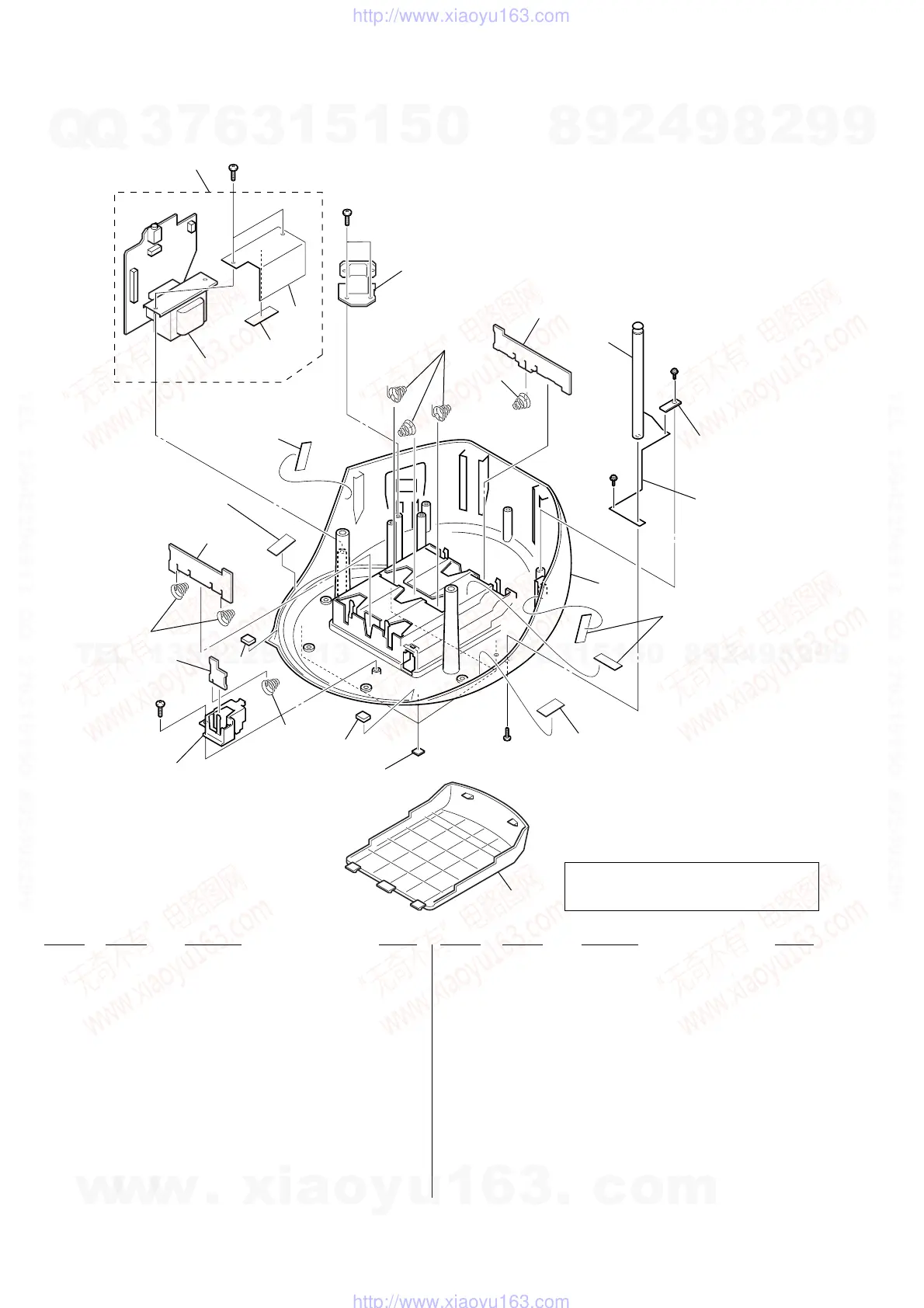

7-4. CABINET LOWER SECTION
151 3-229-970-01 LID BATTERY (for SILVER, BLUE)
151 3-229-970-51 LID BATTERY (for YELLOW)
152 3-232-533-01 FOOT RUBBER
153 3-229-971-01 CASE BATTERY
154 3-229-976-01 SPRING BATTERY (S) (–)
* 155 1-681-678-13 BACK-UP BOARD
156 3-229-975-01 SPRING BATTERY (–)
* 157 1-681-677-13 BATY B BOARD
* 158 A-3062-740-A POWER BOARD, COMPLETE
159 3-232-530-01 PLATE SHIELD (TRANS)
160 3-232-531-01 ADHESIVE SHEET (TRANS)
* 161 1-681-679-13 AC INLET BOARD
162 3-229-982-01 SPRING BATTERY (+ –)
* 163 1-681-676-13 BATY A BOARD
164 3-229-974-01 ANTENNA TREMINAL
165 3-241-093-01 CABINET LOWER (BLUE) (EXCEPT EE)
165 3-241-093-11 CABINET LOWER (SILVER) (EXCEPT EE)
165 3-241-093-21 CABINET LOWER (YELLOW) (EXCEPT EE)
165 3-241-093-31 CABINET LOWER (BLUE) (EE)
165 3-241-093-41 CABINET LOWER (SILVER) (EE)
165 3-241-093-51 CABINET LOWER (YELLOW) (EE)
166 3-233-760-01 CUSHION, PU
ANT1 1-754-191-11 ANTENNA, TELESCOPIC
0T901 1-437-320-11 TRANSFORMER, POWER
#6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#7 7-682-548-04 SCREW +B 3X8
#8 7-685-903-31 SCREW +PTPWH 3X10 (TYPE2)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
