Sony CFD-E77L - Cabinet Lower Assy; AC INLET Board, Power Board

8
CFD-E77L

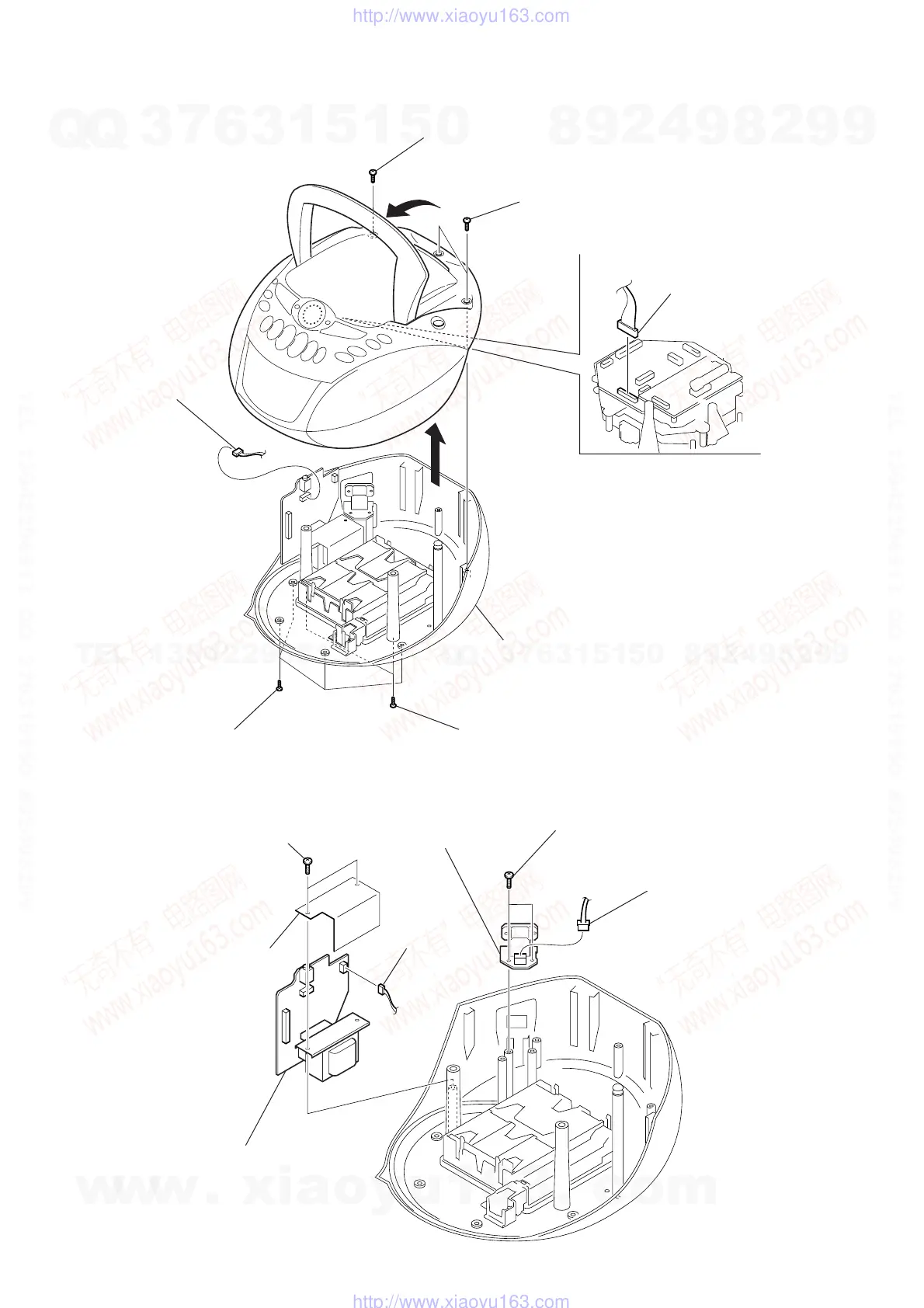

3-3. AC INLET BOARD, POWER BOARD
2 two screws
(BVTP3
× 10)
3 AC INLET board
5 two screws
(BVTP3
× 10)
6 plate shield (TRANS)
1 connecto
r
(CN902)
4 connector
(CNP901)
7 POWER board
Note: Follow the disassembly procedure in the numerical order given.
3-2. CABINET LOWER ASSY
1 two screws
(BVTP3
× 14)
2 four screws
(BVTP3
× 10)
3
5
4 two screws
(BVTP3
× 14)
6 connector
(CN322)
7 connector
(CNP392)
8 cabinet lower assy
4 screw
(BVTP3
× 14)
