CFD-E77L

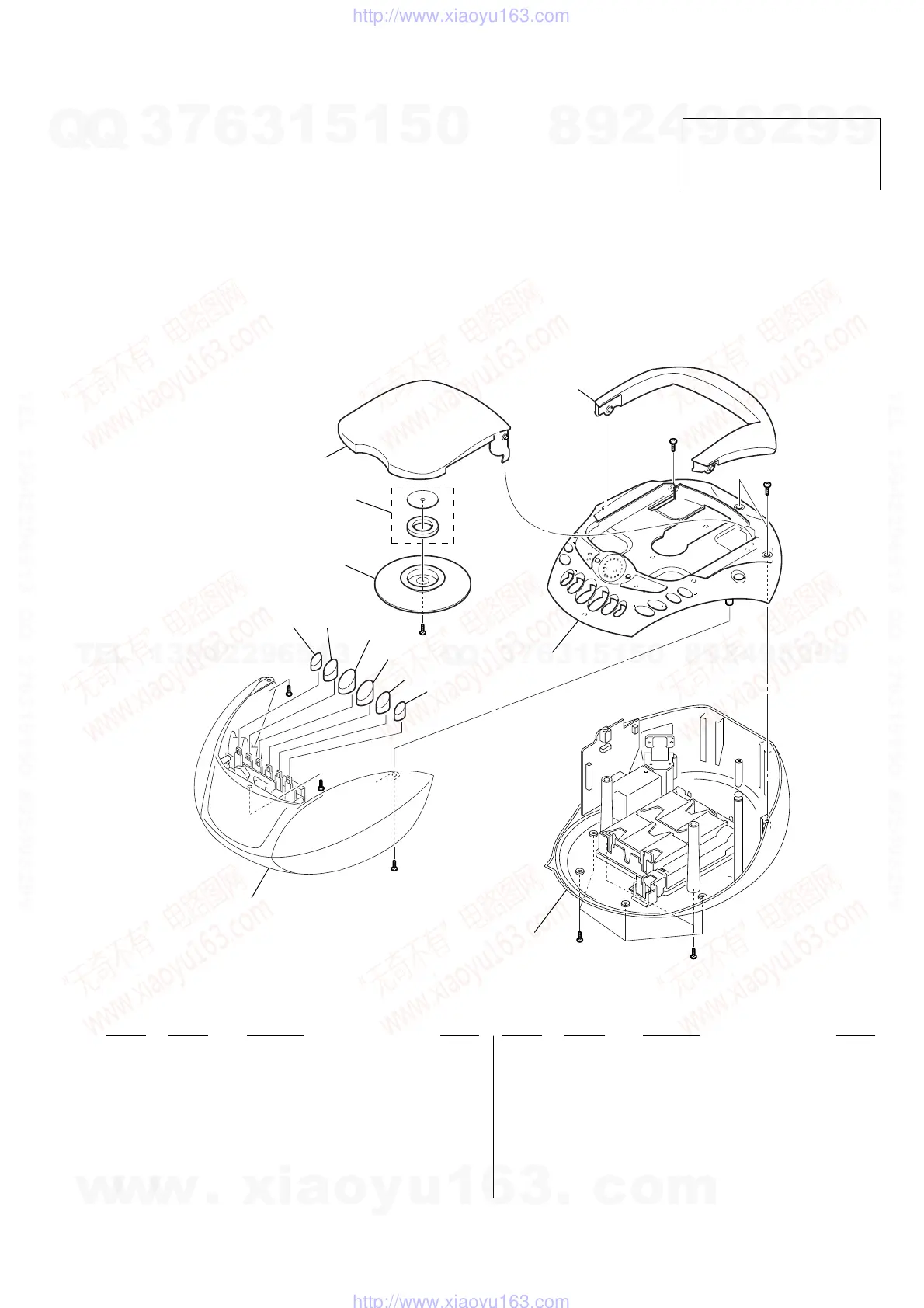

7-1. CABINET SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1 3-229-988-01 KNOB (REC)
2 3-229-987-01 KNOB (PLAY)
3 3-229-985-01 KNOB (REW)
4 3-229-986-01 KNOB (FF)
5 3-229-984-01 KNOB (STOP/EJECT)
6 3-230-316-01 KNOB (PAUSE)
7 3-019-395-01 PLATE, CHUCKING
8 1-452-899-11 MAGNET
9 3-241-088-01 LID, CD (BLUE)
9 3-241-088-11 LID, CD (SILVER)
9 3-241-088-21 LID, CD (YELLOW)
10 3-241-090-01 HANDLE (BLUE)
10 3-241-090-11 HANDLE (SILVER)
10 3-241-090-21 HANDLE (YELLOW)
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
10
9
#4
cabinet front section
cabinet upper section
cabinet lower section
#1
#2
#2
#1
#1
#2
#3
8
7
6
5
4
3
2
1
• Abbreviation
