CFD-E77L

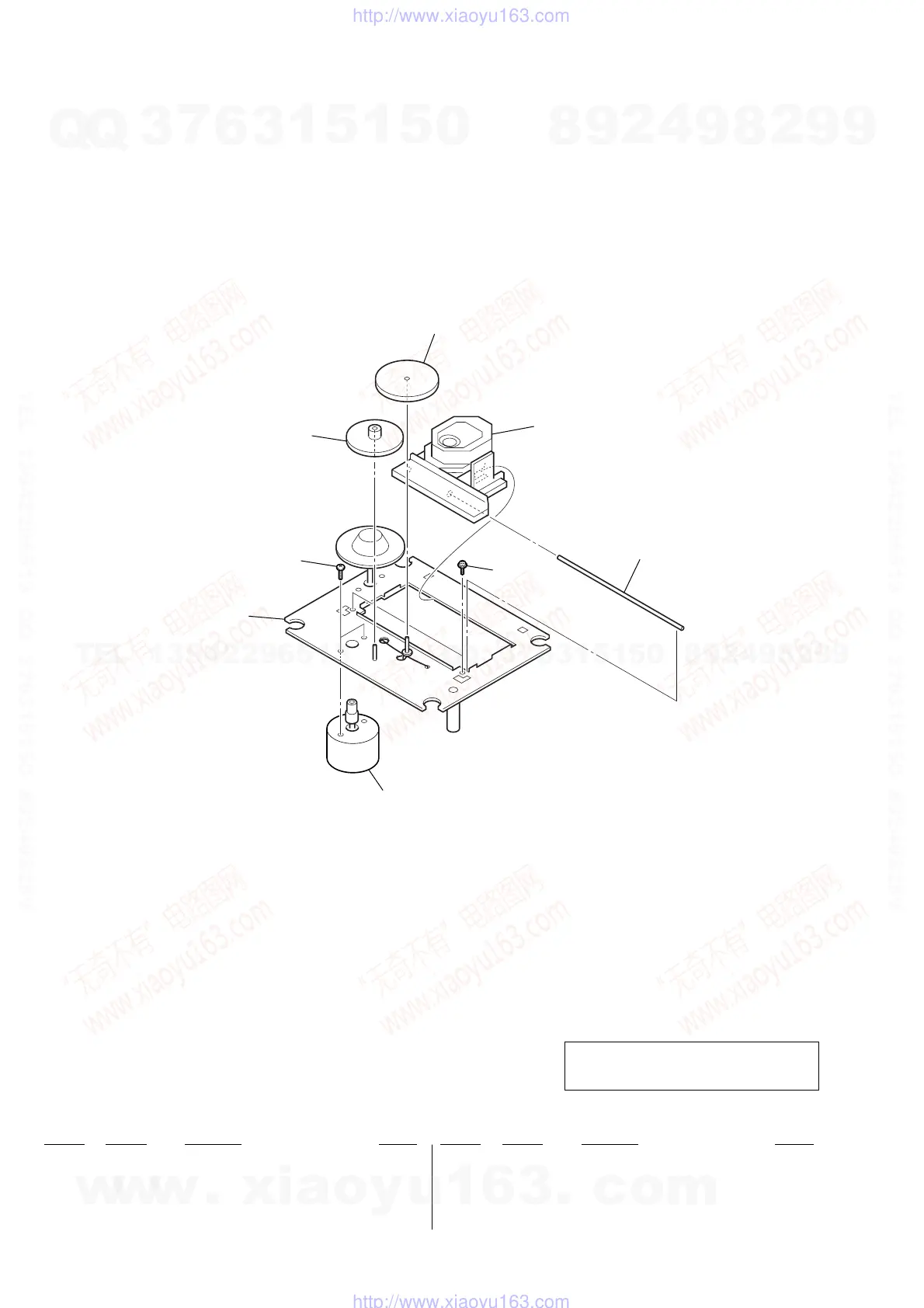

OPTICAL PICK-UP BLOCK (KSM-213RDP)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 X-2162-707-1 CHASSIS ASSY (RDP) (RP),
MOTOR (SPINDLE) (including M701)
* 552 2-647-408-02 GEAR (B)
* 553 2-169-065-01 GEAR (A)
554 2-169-388-01 TAPPING (M2), +PWB
0555 8-820-161-02 OPTICAL PICK-UP (KSS-213R/C2RP)
556 2-626-908-01 SHAFT, SLED
557 3-713-786-51 SCREW (M2X3)
M702 X-2162-712-1 GEAR ASSY (R) (RP), MOTOR (SLED)
552
553
555
556
551
557
554
M702
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
