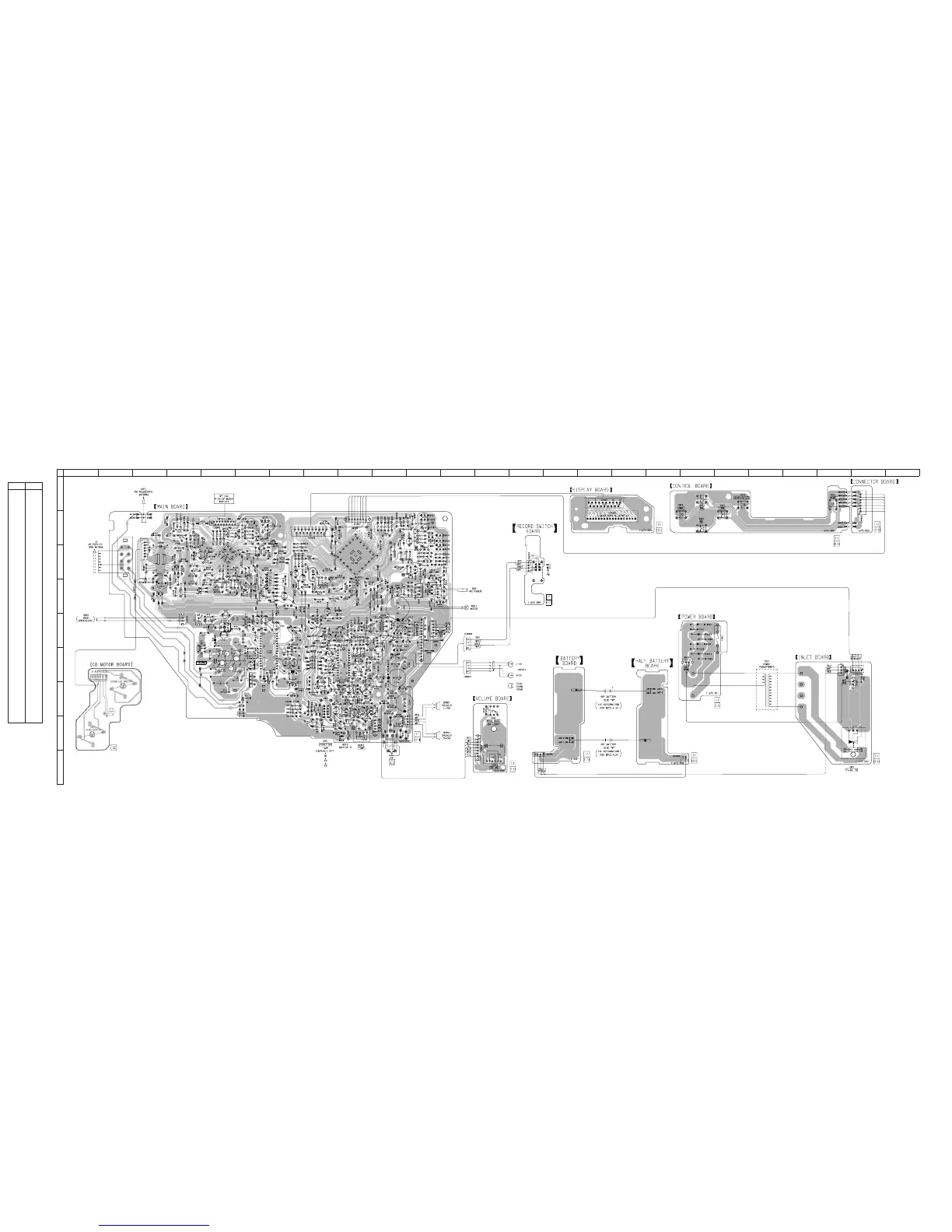

6-3. PRINTED WIRING BOARD • Refer to page 20 for Note on Printed Wiring Board. • Refer to page 17 for IC Circuit Board Location.
+
16
REC/PB
HEAD
CDM
Ref. No. Location
D1 G-6
D2 G-6
D301 G-10
D302 D-10
D303 G-8
D304 G-8
D307 E-8
D308 D-8
D309 G-7
D310 H-9
D312 F-8
D311 D-11
D314 G-7
D401 C-11
D402 C-12
D403 B-11
D404 B-11
D406 C-11
D407 C-11
D408 C-11
D409 C-12
D410 C-12
D411 C-12
D801 D-7
IC1 F-7
IC301 F-9
IC304 E-11
IC701 C-5
IC702 C-9
IC703 C-3
Q1 G-7
Q101 F-10
Q102 G-8
Q103 G-9
Q201 E-10
Q202 G-9
Q203 G-9
Q301 E-9
Q307 D-11
Q308 C-11
Q309 D-11
Q310 E-8
Q401 B-12
Q402 B-12
Q403 B-12
Q404 B-11
Q405 C-12
Q406 C-11
Q407 B-11
Q408 C-11
Q409 D-12
Q701 B-6
Q801 D-7
• Semiconductor
Location
