SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
• The equipment can be removed using the following procedure.

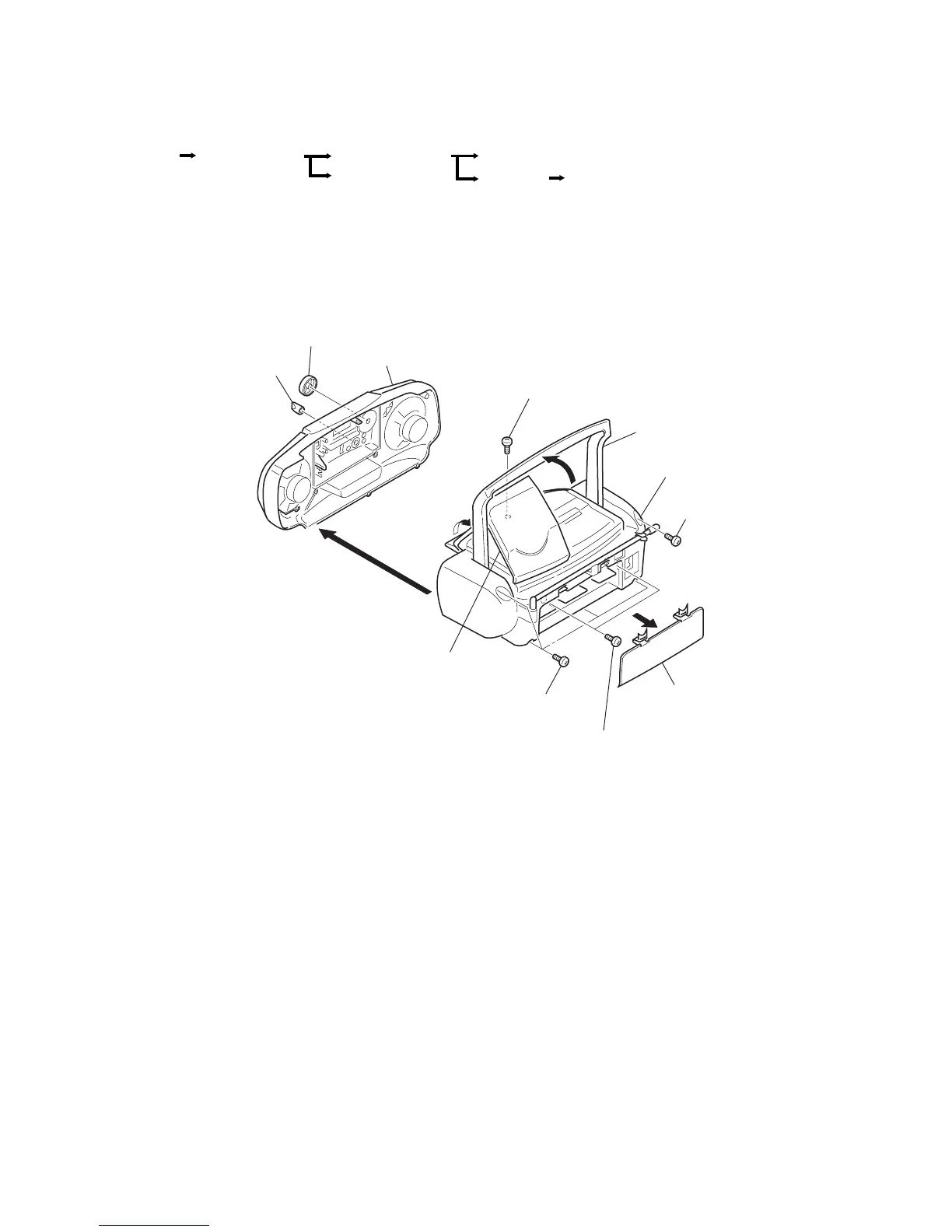

3-1. FRONT CABINET ASSY
Main board Mechanism deck, optical pick-up section
Control board
Cabinet (upper) assy
Front cabinet assySet
Inlet, power, battery, half battery board
0
Front cabinet assy
Rear cabinet assy
1
Lid, battery case
3
Four screws
+BVTP 3
×
10
6
Open the Lid (CD) in
the direction of the arrow.
2
Two screws
+BVTP 3
×
10
4
Screw
+BVTP 3
×
10
7
Screw
+BVTP 3
×
10
5
Remove the Handle
in the direction of the arrow.
8
Knob (Vol )
9
Knob (Tone)
