Sony CFD-V27 - Printed Wiring Board

CFD-V27
— 7 — — 8 — — 9 — — 10 —
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
®
: Through hole.
• b : Pattern from the side which enables seeing.

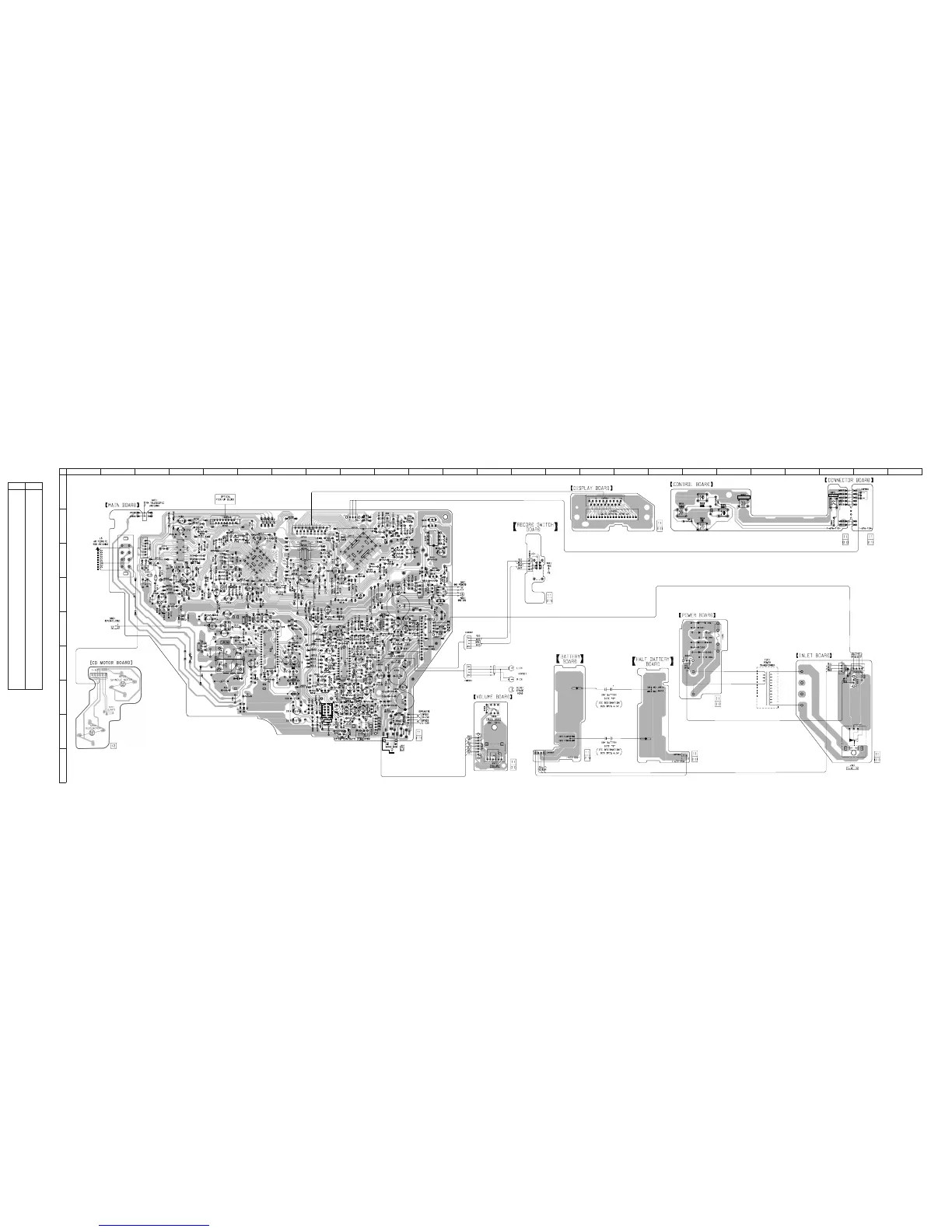

2-2. PRINTED WIRING BOARD
Ref. No. Location
D1 G-6
D2 G-6
D301 G-10
D303 G-8
D304 G-8
D307 E-8
D308 E-9
D309 H-8
D310 H-9
D312 F-8
D311 D-11
D314 H-9
D401 C-11
D801 D-9
D901 E-19
D902 E-19
D903 E-19
D904 F-19
IC1 F-7
IC301 F-9
IC304 E-11
IC401 B-11
IC701 C-4
IC702 C-6
IC703 C-8
IC801 C-9
IC802 B-9
Q1 G-7
Q101 F-10
Q102 G-8
Q103 G-9
Q201 E-10
Q202 G-9
Q203 G-9
Q301 E-9
Q307 D-11
Q308 C-11
Q309 D-11
Q310 E-8
Q401 B-11
Q402 B-11
Q405 B-11
Q409 D-12
Q701 D-4
Q801 D-9
• Semiconductor
Location
+
16
REC/PB
HEAD
1-676-115-
1-676-120-
1-676-118-
1-676-117-
1-676-116-
KSM-880DAA
CV1
CV1
CV1CV1
CV1
1-676-114-
TP
(VC)
TP
(FE)
TP
(RF)
TP
(TE)
FUNCTION
DISPLAY/ENTER
PLAY MODE
OFF
12
A
B
C
D
E
F
G
H
I
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
