Sony CFD-V27 - Mechanism Deck, Optical Pick-up Section

— 8 —

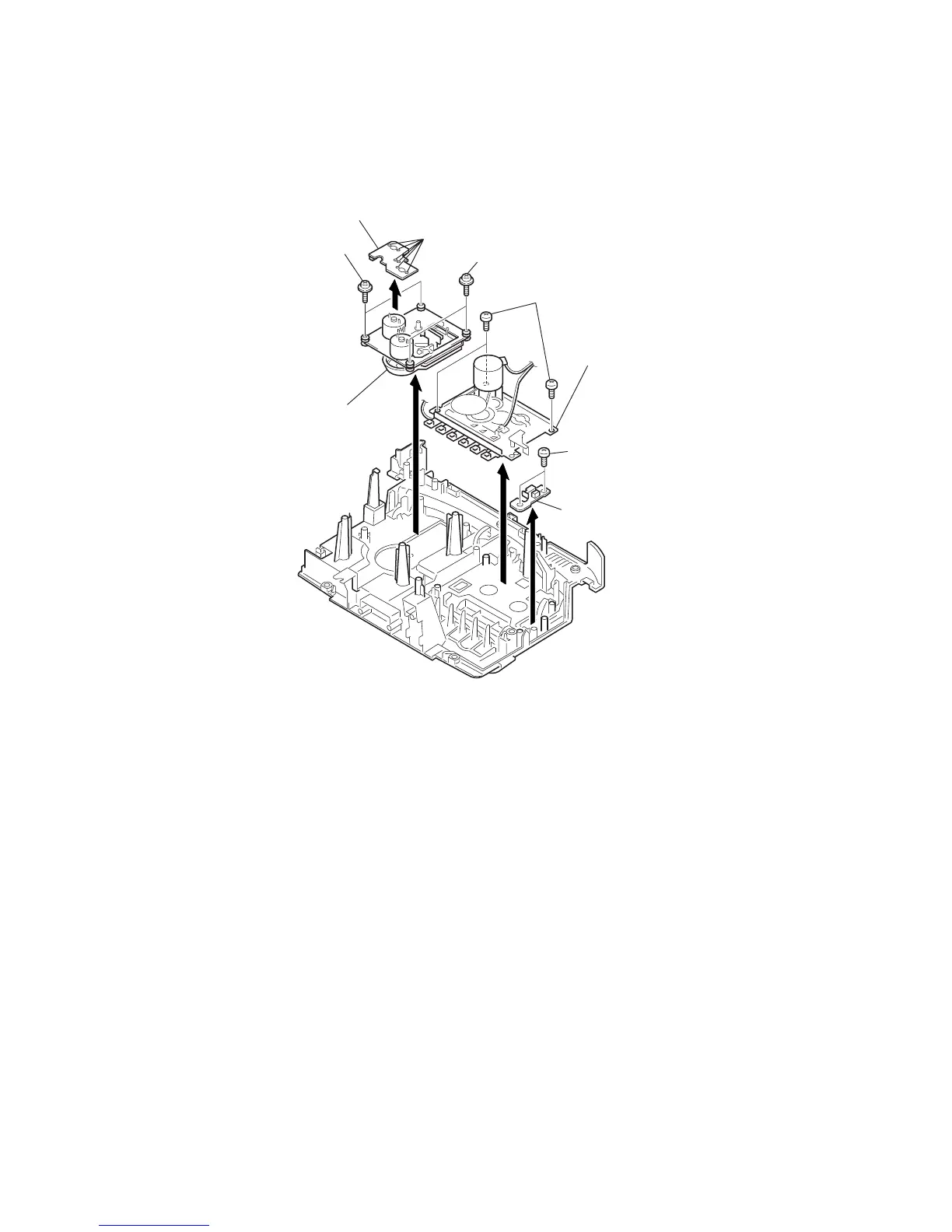

3-6. MECHANISM DECK, OPTICAL PICK-UP SECTION
9 Optical pick-up section
4 Mechanism dec
k
3 Three screws
+BVTP 3
× 10
7 Two screws
8 Two screws
5 Remove solder
6 CD MOTOR board
1 Two screws
+BVTP 3
× 10
2 RECORD
switch board
