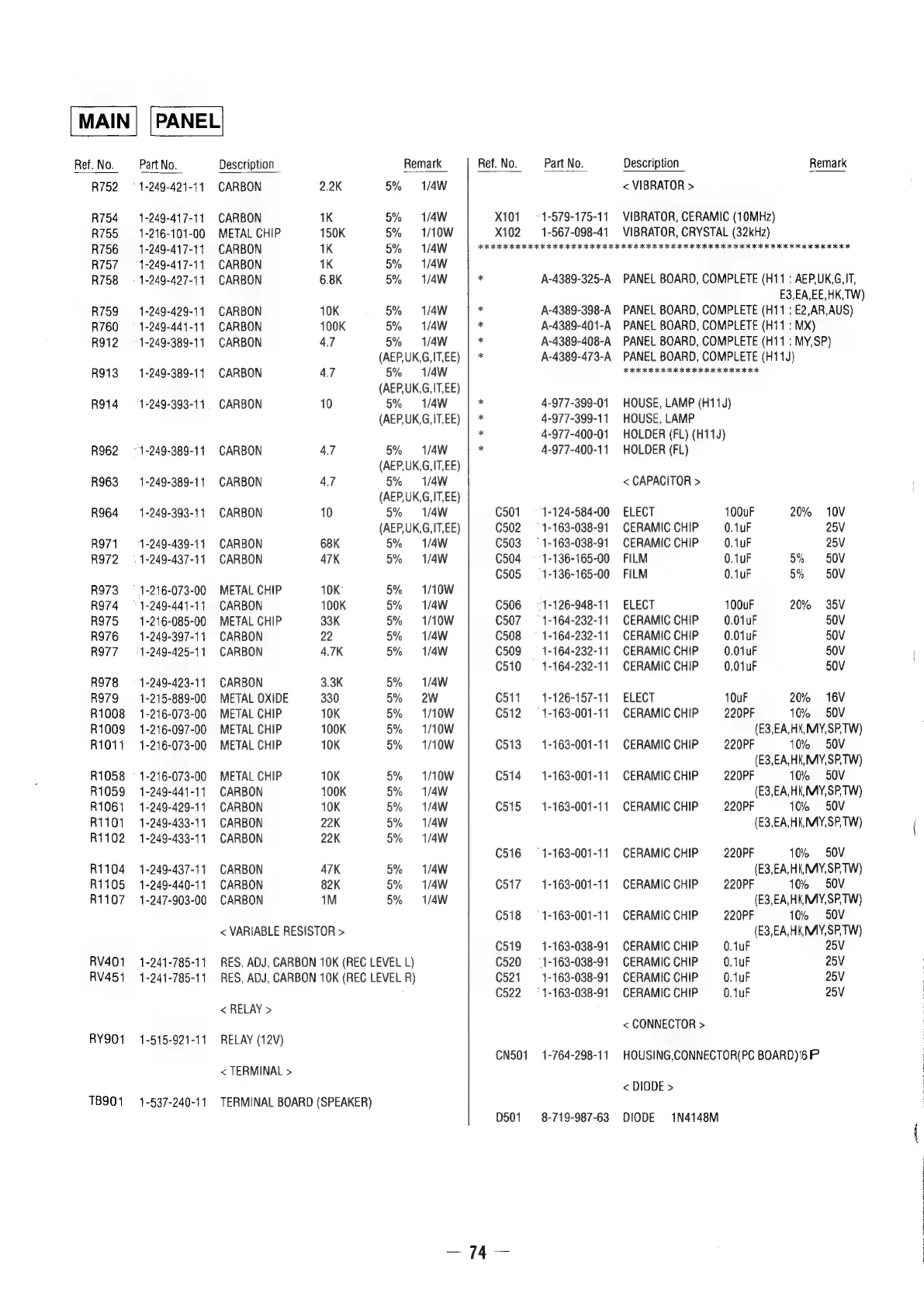

Sony CHC-P11 - Page 57

MAIN | |PANEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R752 = 1-249-421-11 CARBON 2.2K 5% 1/4W < VIBRATOR >
R754 ~—-1-249-417-11 CARBON 1K 5% 1/4W X101. =: 1-579-175-11 VIBRATOR, CERAMIC (10MHz)
R755 = 1-216-101-00 METAL CHIP 150K 5% 1/10W X102 1-567-098-41 VIBRATOR, CRYSTAL (32kHz)
R756 4-249-417-11 CARBON 1K 5% 1/4W SRR KR OR ROKR RK OK ORR OR OK RIO GRIGIO I kk RIC ak a
R757 ~—- 1-249-417-11 CARBON 1K 5% 1/4W
R758 = 1-249-427-11 CARBON 6.8K 5% 1/4W * A-4389-325-A PANEL BOARD, COMPLETE (H11 : AEP.UK,G,IT,
£3,EA,EE,HK,TW)
R759 ~—-1-249-429-11 CARBON 10K 5% 1/4W * A-4389-398-A PANEL BOARD, COMPLETE (H11 : E2,AR,AUS)
R760 = 1-249-441-11 CARBON 100K 5% 1/4W * A-4389-401-A PANEL BOARD, COMPLETE (H11 : MX)
R912 =‘ 1-249-389-11 CARBON 4.7 5% 1/4W * A-4389-408-A PANEL BOARD, COMPLETE (H11 : MY,SP)
(AEP,UK,G,IT,EE) | * A-4389-473-A PANEL BOARD, COMPLETE (H11J)
R913: 1-249-389-11 CARBON 4.7 5% 1/4W FI RE AE EA Ae
(AEP,UK,G,IT,EE)
R914 ~—s- 1-249-393-11. CARBON 10 5% 1/4W * 4-977-399-01 HOUSE, LAMP (H11J)
(AEP,UK,G,IT,EE) | * 4-977-399-11 HOUSE, LAMP
* 4-977-400-01 HOLDER (FL) (H11J)
R962 ~=—- 1-249-389-11 CARBON 4.7 5% 1/4W * 4-977-400-11 HOLDER (FL)
(AEP,UK,G,IT,EE)
R963 = 1-249-389-11 CARBON 4.7 5% 1/4W < CAPACITOR >
(AEP, UK,G,IT,EE)
R964 = 1-249-393-11 CARBON 10 5% 1/4W C501. ~—s- 1-124-584-00 ELECT 100uF 20% 10V
(AEP, UK,G,IT,EE) C502 =: 1-163-038-91 CERAMIC CHIP 0.1uF 25V
R971 —- 1-249-439-11 CARBON 68K 5% 1/4W C503. ~—s- 1-163-038-91 CERAMIC CHIP 0.1uF 25V
R972 = 1-249-437-11 CARBON 47K 5% 1/4W C504 ~—s- 1-136-165-00 FILM 0.1uF 5% 50V
C505 ~=—- 1-136-165-00 FILM 0.1uF 5% 50V
R973 =: 1-216-073-00 METAL CHIP 10K’ 5% 1/10W
R974 ~—- 1-249-441-11 CARBON 100K 5% 1/4W C506 =: 1-126-948-11 ELECT 100uF 20% 35V
R975 —-1-216-085-00 METAL CHIP 33K 5% 1/10W C507 ~—s- 1-164-232-11 CERAMIC CHIP 0.01uF 50V
R976 ~—-.1-249-397-11 CARBON 22 5% 1/4W C508 =: 1-164-232-11 CERAMIC CHIP 0.01uF 50V
R977 ~—- 1-249-425-11 CARBON 4.7K 5% 1/4W C509 = 1-164-232-11 CERAMIC CHIP 0.01 uF 50V
C510 = 1-164-232-11 CERAMIC CHIP 0.01uF 50V
R978 —- 1-249-423-11 CARBON 3.3K 5% 1/4W
R979 ~—-1-215-889-00 METAL OXIDE 330 5% 22W C511. 1-126-157-11 ELECT 10uF 20% 16V
R1008 1-216-073-00 METAL CHIP 10K 5% 1/10W C512 = 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
R1009 1-216-097-00 METAL CHIP 100K 5% 1/N0W (E3,EA,HK,MY,SP.TW)
R1011 1-216-073-00 METAL CHIP 10K 5% 1/10W C513 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
(E3,EA,HK, MY,SP.TW)
R1058 = 1-216-073-00 METAL CHIP 10K 5% 1/10W C514 = 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
R1059 1-249-441-11 CARBON 100K 5% 1/4W (E3,EA, HK, MY,SP.TW)
R1061 1-249-429-11 CARBON 10K 5% 1/4W C515 = 1-163-001-11 CERAMIC CHIP 220PF 10% SOV
R1101 1-249-433-11 CARBON 22K 5% 1/4W (E3, EA, HK, MY,SP, TW)
R1102 1-249-433-11 CARBON 22K 5% 1/4W
C516 = 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
R1104 1-249-437-11 CARBON 47K 5% 1/4W (E3,EA, HK, MY,SP, TW}
R1105 1-249-440-11 CARBON 82K 5% 1/4W C517 ~—-1-163-001-11 CERAMIC CHIP 220PF 10% 50V
R1107 1-247-903-00 CARBON 1M 5% 1/4W (E3,EA,HK,MY,SP,TW)
C518 = 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
< VARIABLE RESISTOR > (E3,EA,HK, MY,SP TW)
C519 = 1-163-038-91 CERAMIC CHIP 0.1uF 25V
RV401 1-241-785-11 RES, ADJ, CARBON 10K (REC LEVEL L) C520 =: 1-163-038-91 CERAMIC CHIP 0.1uF 25V
RV451 1-241-785-11 RES, ADJ, CARBON 10K (REC LEVEL R) C521 = 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C522 = 1-163-038-91 CERAMIC CHIP 0.1uF 25V
< RELAY >
< CONNECTOR >
RY901 1-515-921-11 RELAY (12V)
CN501_ 1-764-298-11 HOUSING,CONNECTOR(PC BOARD)6P
< TERMINAL >
< DIODE >
TB901 1-537-240-11 TERMINAL BOARD (SPEAKER)
D501 ~—«-8-719-987-63 DIODE 1N4148M
