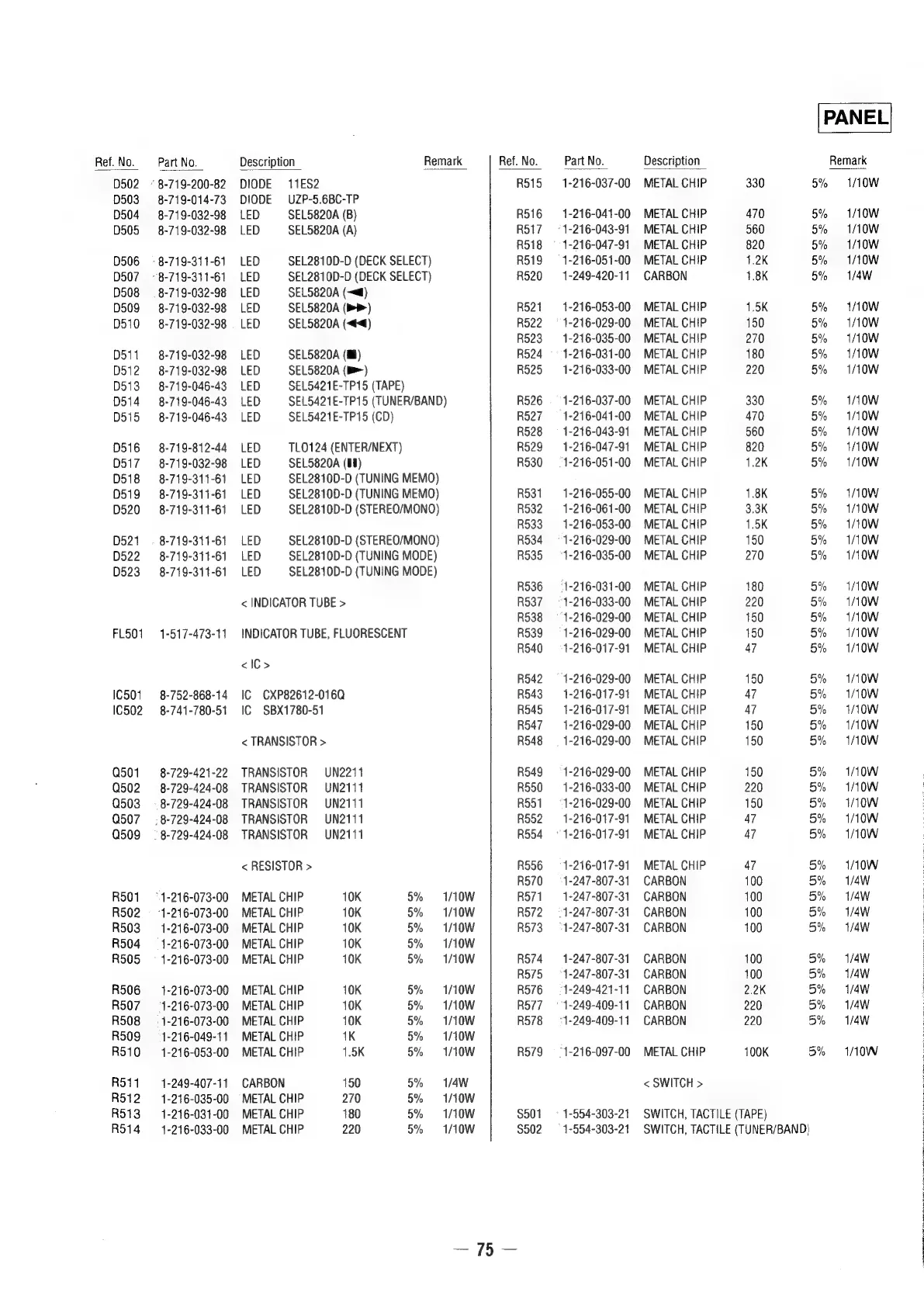

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D502 = 8-719-200-82 DIODE 11ES2 R515 ~—-1-216-037-00 METAL CHIP 330 5% 1/10W
D503 ~—-8-719-014-73 DIODE UZP-5.6BC-TP
D504 ~—-8-719-032-98 LED SEL5820A (B) R516 = 1-216-041-00 METAL CHIP 470 5% I1/10W
D505 8-719-032-98 LED SEL5820A (A) R517 ~—- 1-216-043-91 METAL CHIP 560 5% I/10W
R518 = 1-216-047-91 METAL CHIP 820 5% I1/10W
D506 = 8-719-311-61 LED SEL2810D-D (DECK SELECT) R519 = 1-216-051-00 METAL CHIP 1.2K 5% I/10W
D507 ~—s« 8-719-311-61 LED SEL2810D-D (DECK SELECT) R520 ~=—-1-249-420-11 CARBON 1.8K 5% 1/4W
D508 = 8-719-032-98 LED SEL5820A (~<a)
D509 ~=—«8-719-032-98 LED SEL5820A (>>) R521 ~—-1-216-053-00 METAL CHIP 1.5K 5% I1/10W
D510 ~—8-719-032-98 . LED SEL5820A (<<) R522 ~—- 1-216-029-00 METAL CHIP 150 5% I/OW
R523 ~—-1-216-035-00 METAL CHIP 270 5% 1/10W
D511 ~—-8-719-032-98 LED SEL5820A (if) R524 ~—- 1-216-031-00 METAL CHIP 180 5% 1/10W
D512 ~=—-8-719-032-98 LED SEL5820A (b>) R525 ~—-1-216-033-00 METAL CHIP 220 5% 1/10W
D513 ~=—-8-719-046-43 LED SEL5421E-TP15 (TAPE)
D514 ~—-8-719-046-43 LED SEL5421E-TP15 (TUNER/BAND) R526 ~—- 1-216-037-00 METAL CHIP 330 5% 1/10W
D515 ~—-8-719-046-43 LED SEL5421£-TP15 (CD) R527 ~—- 1-216-041-00 METAL CHIP 470 5% 1/10W
R528 = 1-216-043-91 METAL CHIP 560 5% I/1O0W
D516 = 8-719-812-44 LED TLO124 (ENTER/NEXT) R529 1-216-047-91 METAL CHIP 820 5% 1/HOW
D517 ~—-8-719-032-98 LED SEL5820A (HM) R530 =: 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
D518 ~=8-719-311-61 LED SEL2810D-D (TUNING MEMO)
0519 8-719-311-61 LED SEL2810D-D (TUNING MEMO) R531: 1-216-055-00 METAL CHIP 1.8K 5% 1/NOW
D520 = 8-719-311-61 LED SEL2810D-D (STEREO/MONO) R532 = 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R533 ~—-1-216-053-00 METAL CHIP 1.5K 5% 1/10W
D521 = 8-719-311-61 LED SEL2810D-D (STEREO/MONO) R534 —- 1-216-029-00 METAL CHIP 150 5% I1/10W
D522 ~=—-8-719-311-61 LED SEL2810D-D (TUNING MODE) R535 ~—- 1-216-035-00 METAL CHIP 270 5% INOW
D523 ~—s«8-719-311-61 LED SEL2810D-D (TUNING MODE)
R536 ~—s- 1-216-031-00 METAL CHIP 180 5% 1/10W
< INDICATOR TUBE > R537 ~—- 1-216-033-00 METAL CHIP 220 5% 1/10W
R538 ~—- 1-216-029-00 METAL CHIP 150 5% INOW
FL501_ -1-517-473-11 INDICATOR TUBE, FLUORESCENT R539 ~—- 1-216-029-00 METAL CHIP 150 5% 1/10W
R540 ~—- 1-216-017-91 METAL CHIP 47 5% i/10W
<IC>
R542 ~—- 1-216-029-00 METAL CHIP 150 5% I/10W
IC501 8-752-868-14 IC CXP82612-016Q R543. 1-216-017-91 METAL CHIP 47 5% INOW
IC502 =8-741-780-51 IC SBX1780-51 R545 1-216-017-91 METAL CHIP 47 5% 1/10W
R547. ~—s 1-216-029-00 METAL CHIP 150 5% i1/10W
< TRANSISTOR > R548 = 1-216-029-00 METAL CHIP 150 5% 1/10W
Q501 = 8-729-421-22 TRANSISTOR UN2211 R549 ~—- 1-216-029-00 METAL CHIP 150 5% 1/10W
Q502 =8-729-424-08 TRANSISTOR UN2111 R550 = 1-216-033-00 METAL CHIP 220 5% 1/10W ,
Q503 = 8-729-424-08 TRANSISTOR UN2111 R551 ~—s- 1-216-029-00 METAL CHIP 150 5% i/10W :
Q507 = 8-729-424-08 TRANSISTOR UN2111 R552 ~—s1-216-017-91 METAL CHIP 47 5% 1/10W
Q509 = 8-729-424-08 TRANSISTOR UN2111 R554 —s 1-216-017-91 METAL CHIP 47 5% 1/10W
< RESISTOR > R556 ~—- 1-216-017-91 METAL CHIP 47 5% 1/10W
R570 ~—- 1-247-807-31 CARBON 100 5% 1/4W
R501 ~—- 1-216-073-00 METAL CHIP 10K 5% 1/10W R571. ~—-1-247-807-31 CARBON 100 5% 1/4W
R502 ~—s- 1-216-073-00 METAL CHIP 10K 5% 1/10W R572 ~—- 1-247-807-31 CARBON 100 5% 1/4W
R503 ~—-1-216-073-00 METAL CHIP 10K 5% 1/10W R573 ~—s- 1-247-807-31 CARBON 100 5% 1/4W
R504 = 1-216-073-00 METAL CHIP 10K 5% 1/10W
R505 = 1-216-073-00 METAL CHIP 10K 5% 1/10W R574 ~—«-1-247-807-31 CARBON 100 5% 1/4W
R575 ~—- 1-247-807-31 CARBON 100 5% 1/4W
R506 ~—s-1-216-073-00 METAL CHIP 10K 5% 1/10W R576 ~—- 1-249-421-11 CARBON 2.2K 5% 1/4W |
R507 ~=—- 1-216-073-00 METAL CHIP 10K 5% 1/10W R577 ~—s-: 1-249-409-11 CARBON 220 5% 1/4W
R508 = 1-216-073-00 METAL CHIP 10K 5% 1/10W R578 ~=—- 1-249-409-11 CARBON 220 5% 1/4W
R509 =: 1-216-049-11_ METAL CHIP 1K 5% 1/10W
R510 = 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R579 ~—- 1-216-097-00 METAL CHIP 100K 5% 1/10W
R511. —-1-249-407-11 CARBON 150 5% 1/4W < SWITCH >
R512 = 1-216-035-00 “METAL CHIP 270 5% 1/10W
R513 1-216-031-00 METAL CHIP 180 5% 1/10W $501 = 1-554-303-21 SWITCH, TACTILE (TAPE)
R514 ~—-1-216-033-00 METAL CHIP 220 5% 1/10W $502 = 1-554-303-21 SWITCH, TACTILE (TUNER/BAND}
