Sony CMT-DC1 - Component Disassembly; CD Mechanism Deck Disassembly

HCD-DC1
9

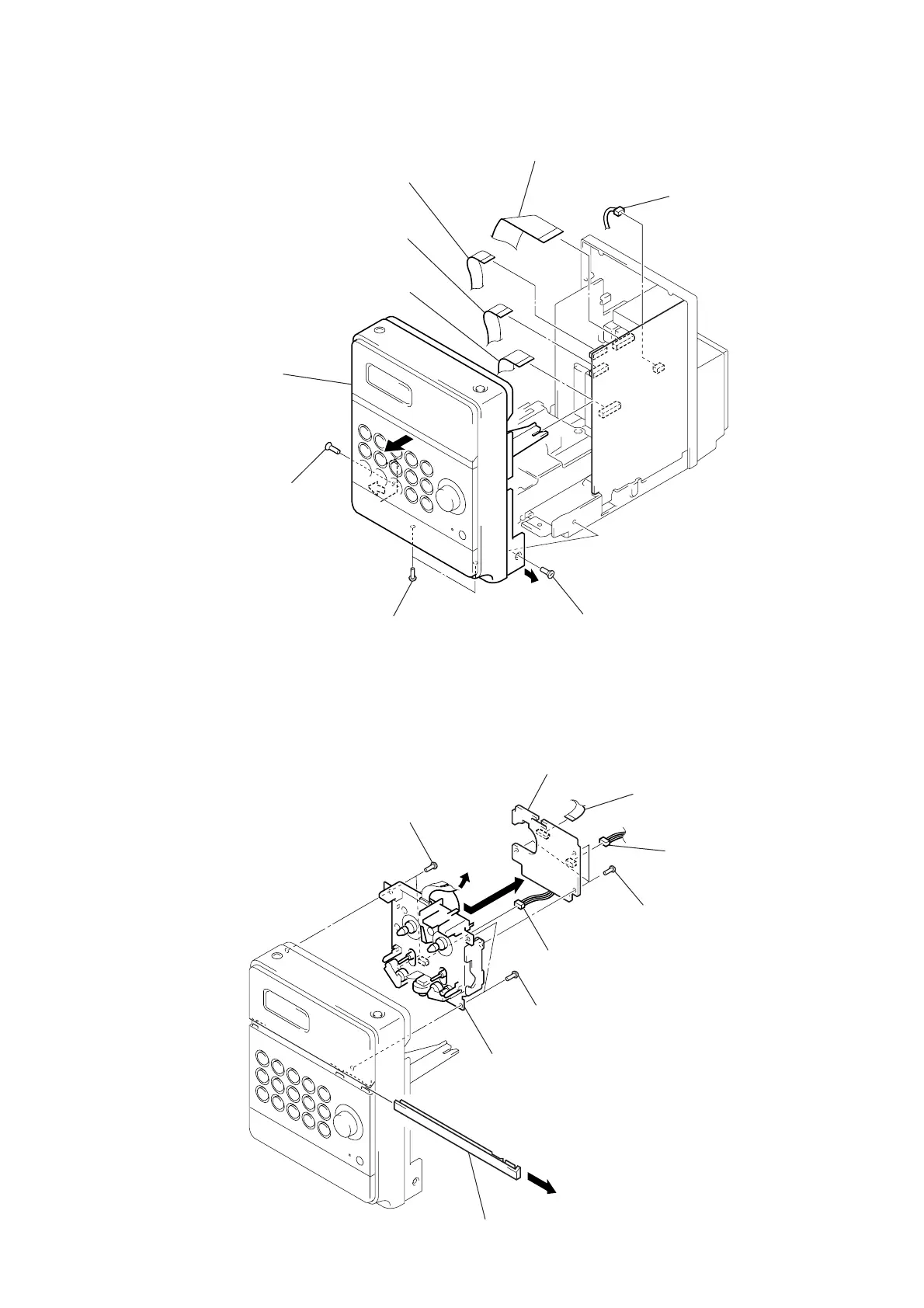

3-4. FRONT PANEL SECTION
3-5. TAPE MECHANISM DECK
1 flexible flat (18core) cable
(CN802)
1 flexible flat (18core) cable
(CN301)
1 flexible flat (20core) cable
(CN804)
1 flexible flat (16core) cable
(CN801)
2 connecto
r
(CN501)
3 two screws
(BTP3
× 8)
4 screw (KTP3 × 6)
4 screw (KTP3 × 6)
5 front panel section
4 three screws
(BVTT2.6 × 5)
8 two screws
(BTP3 × 8)
8 two screws
(BTP3 × 8)
9 tape machanism deck
7 TC board
2 flexible flat (9core) cabl
e
(CN302)
6 connector
(CNP1)
3 connector
(CN303)
5
1 azimuth cap
