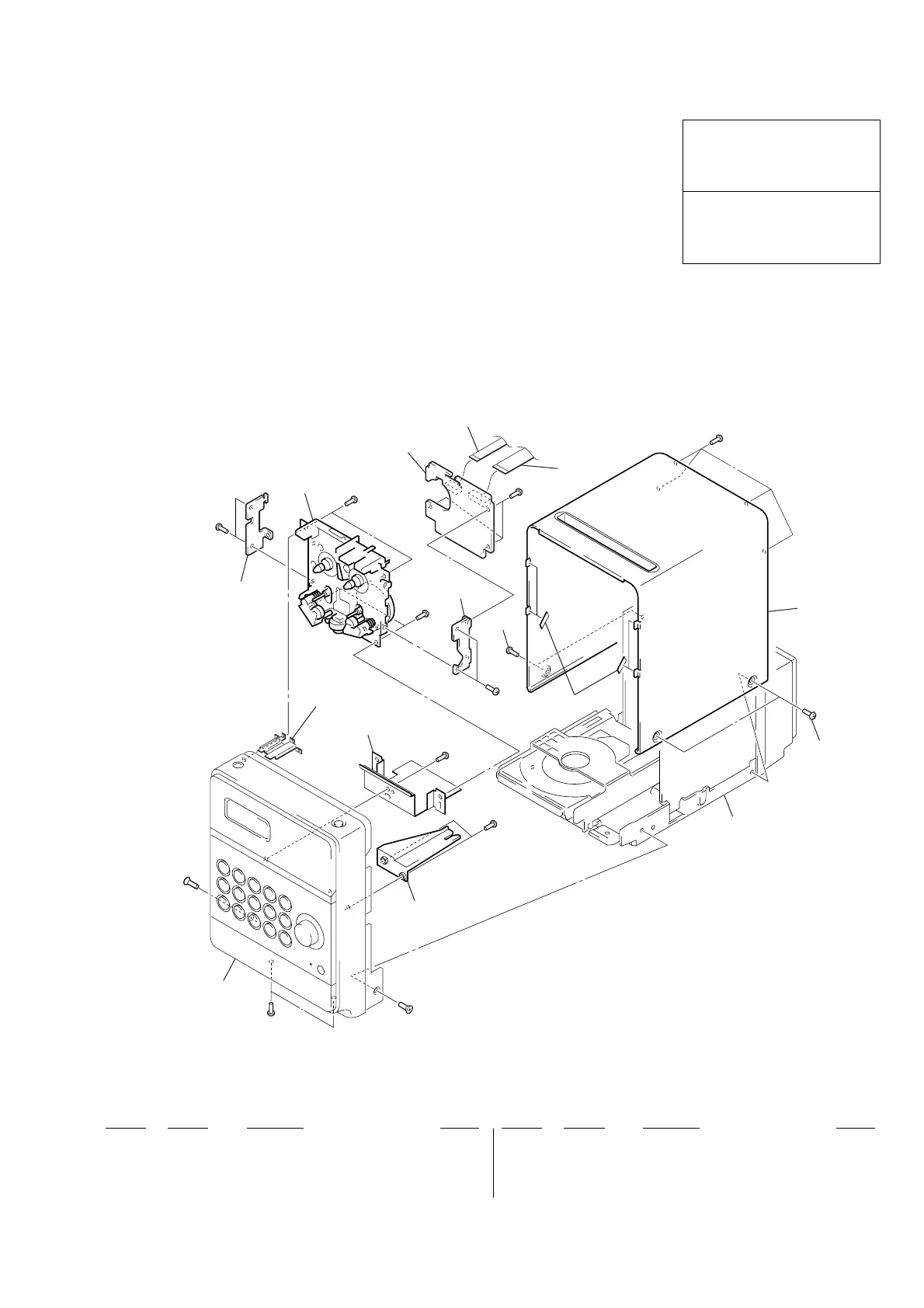

7-1. UPPER COVER, TAPE MECH DECK SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1
#3
not supplied
not
supplied
not supplied
not supplied
not supplied
chassis section
#1
#1
#3
#1
#3
#1
#1
#2
#2
#1
front panel
section
6
2
3
4
5
6
not supplied
1 1-796-101-12 DECK, MECH (TAPE)
2 A-4726-690-A TC BOARD, COMPLETE
3 1-757-809-11 CABLE, FLEXIBLE FLAT (9 CORE)
4 1-757-806-11 CABLE, FLEXIBLE FLAT (18 CORE)
5 X-4954-042-1 COVER SUB ASSY, UPPER (SILVER)
5 X-4954-077-1 COVER SUB ASSY, UPPER (BLACK)
5 X-4954-078-1 COVER SUB ASSY, UPPER (RED)
6 4-221-580-01 SCREW, CASE
