Sony CMT-DC1 - Cam (CDM55) Disassembly

HCD-DC1
11

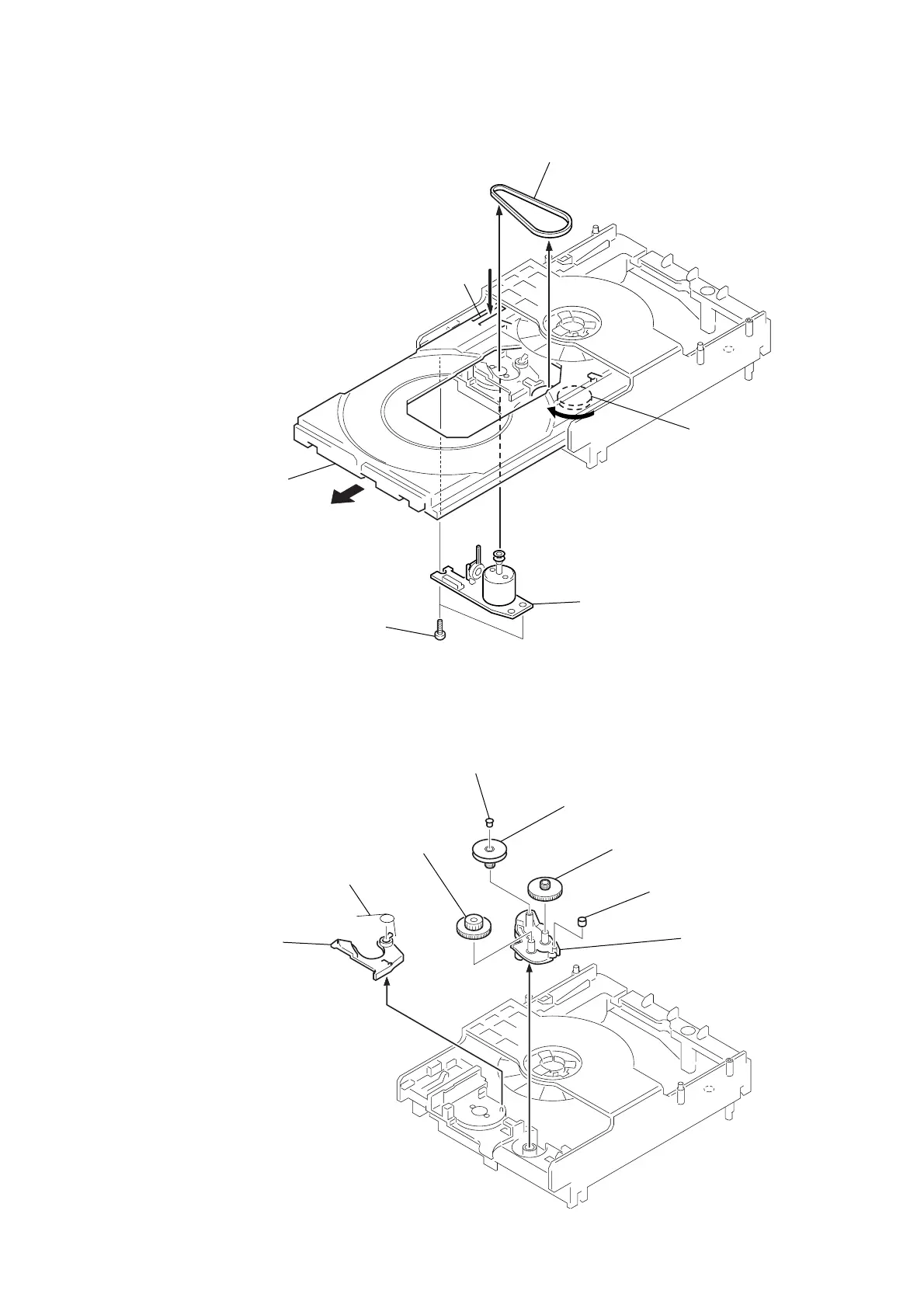

3-8. LOADING MOTOR BOARD
3-9. CAM (CDM55)
2 belt (CDM55)
B
3 Pull the tray pushing B .
4 two screws
(BTP2.6
× 6)
5 LOADING MOTOR board
1 Rotate the gear(B) in
the direction of arrow
A .
A
2 lever (SW)
1 torsion spring
6 gear (B)
3 spacer (55)
4 pulley (LDG)
5 gear (A)
7 roller
8 cam (CDM55)
