Sony CMT-DC1 - Printed Wiring Boards; Power Board Layout

HCD-DC1
3030
POWER BOARD
2
(AC IN)
SUB POWER
TRANSFORMER
MAIN POWER
TRANSFORMER
*
*
NOT REPLACEABLE:
BUILT IN TRANSFORMER.
1-682-413-
11
(11)
MAIN BOARD
CNP101
G
JW920
(HK, MY, SP)
(EXCEPT MX)
EXCEPT
HK, MY, SP
(US, CND, MX)
(US, CND, MX)
JW921
EXCEPT
HK, MY, SP
(HK, MY, SP)
(EXCEPT HK, MY, SP)
(US, CND)
(AEP, UK)
R909
VOLTAGE
SELECTOR
S901
110V – 120V
220V – 240V
(HK, MY, SP)
LF901
JW912 JW913
(US, CND, MX)
(EXCEPT US, CND, MX)
A
B
C
D
E
F
G
1 2 3 4 5 6

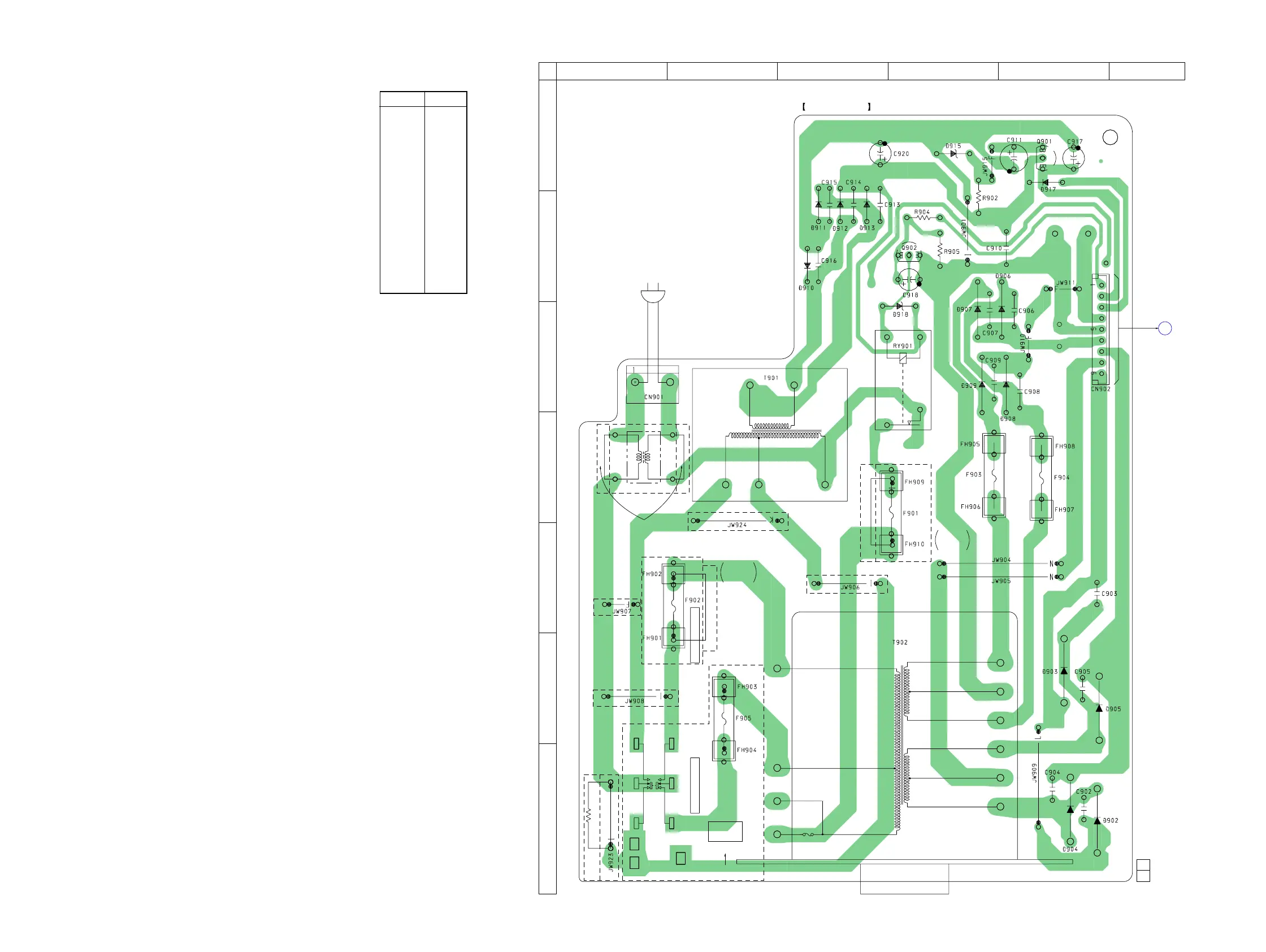

6-15. PRINTED WIRING BOARD – POWER Board – • See page 18 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
(Page 27)
D902 G-5
D903 F-5
D904 G-5
D905 F-5
D906 C-5
D907 C-4
D908 C-5
D909 C-4
D910 B-3
D911 B-3
D912 B-3
D913 B-3
D915 A-4
D917 A-5
D918 C-4
Q901 A-5
Q902 B-4
Ver 1.1
