Sony CMT-DC1 - Exploded Views; Front Panel Section View

38
HCD-DC1

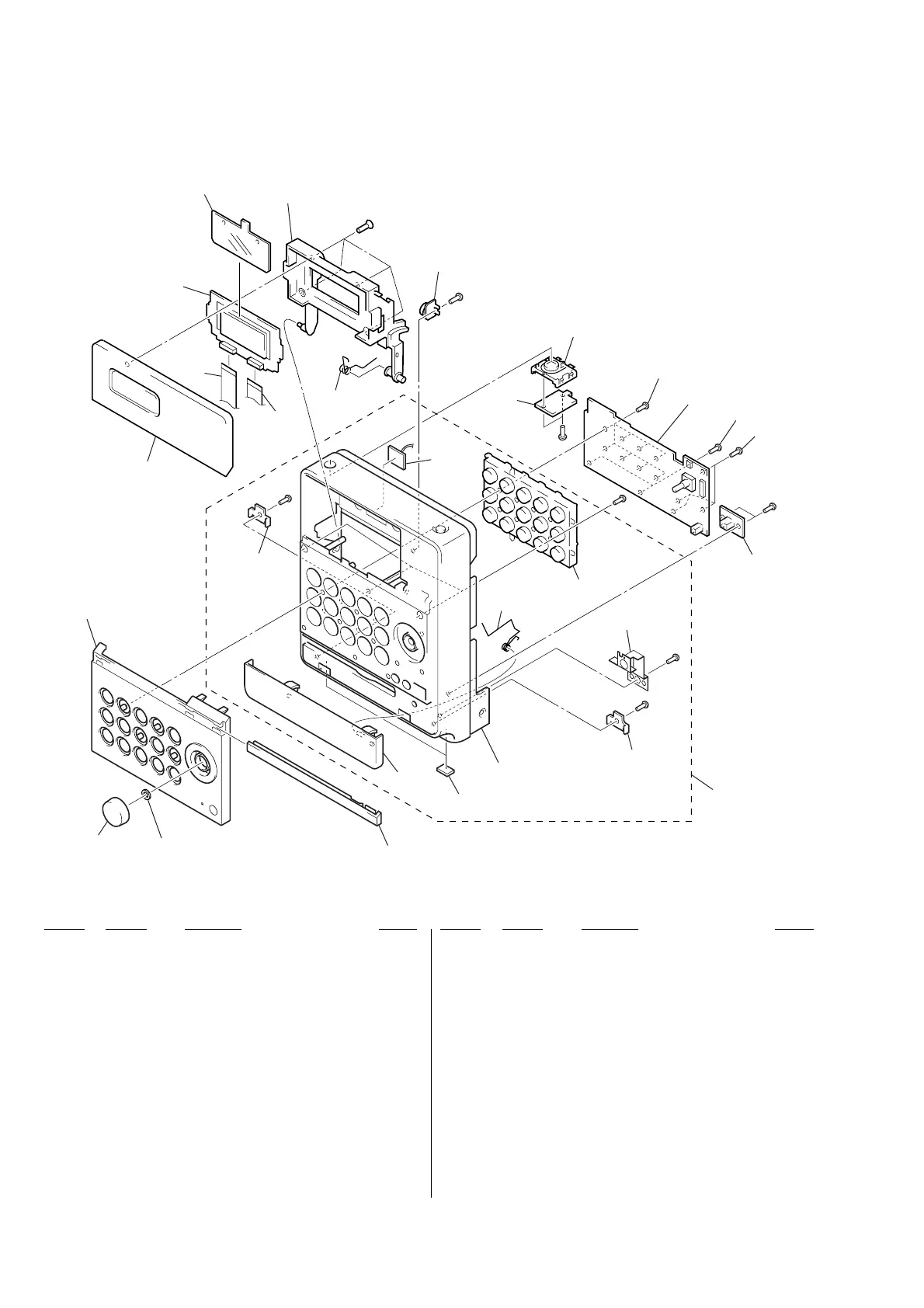

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
not
supplied
not supplied
not
supplied
not supplied
not supplied
#1
#4
#1
#1
#1
#7
#1
#1
54
56
57
58
59
61
60
70
55
62
63
64
64
64
66
67
68
69
51
52
53
65
not supplied
supplied with RV801
51 4-236-221-01 AZIMUTH CAP (SILVER)
52 X-4954-045-1 VOLUME KNOB ASSY
53 X-4954-041-1 COVER SUB ASSY, FRONT
54 X-4954-047-1 LID SUB ASSY, CASSETTE (SILVER)
54 X-4954-093-1 LID SUB ASSY, CASSETTE (BLACK)
54 X-4954-094-1 LID SUB ASSY, CASSETTE (RED)
55 1-823-469-11 CABLE, FLEXIBLE FLAT (20 CORE)
56 1-823-470-11 CABLE, FLEXIBLE FLAT (18 CORE)
57 1-682-412-11 LCD BOARD
58 4-217-319-11 PLATE, LCD LIGHT
59 X-4954-046-1 HOLDER SUB ASSY, CASSETTE
60 4-236-228-01 SPRING, CASSETTE
61 3-351-377-11 GEAR, DAMPER
62 4-236-214-01 BUTTON, POWER (SILVER)
62 4-236-214-11 BUTTON, POWER (BLACK)
62 4-236-214-21 BUTTON, POWER (RED)
63 1-682-417-11 I/O SWITCH BOARD
64 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
65 A-4726-692-A SWITCH BOARD, COMPLETE
(AEP, HK, MY, SP, UK)
65 A-4727-418-A SWITCH BOARD, COMPLETE (CND, MX, US)
66 1-682-409-11 HEADPHONE BOARD
67 X-4954-310-1 PANEL SUB ASSY, FRONT (SILVER)
67 X-4954-311-1 PANEL SUB ASSY, FRONT (BLACK)
67 X-4954-312-1 PANEL SUB ASSY, FRONT (RED)
68 4-232-478-01 FOOT
69 4-236-205-61 CD COVER (SILVER)
69 4-236-205-71 CD COVER (BLACK)
69 4-236-205-81 CD COVER (RED)
70 1-418-693-32 INDICATOR BLOCK, LED
Ver 1.1
