Sony CMT-DC1 - Printed Wiring Boards; TC Board Layout

HCD-DC1
2222
TAPE DECK BLOCK
SUPPLIED WITH
THE ASSEMBLED
BLOCK
B
MAIN BOARD
CN301
CASSETTE HOLDER
BACK LIGHT
2
HEAD
RELAY
BOARD
HRPE901
RECORD/PLAYBACK/ERASE
L-CH
R-CH
ERASE
1-681-239-
13
(13)
TC BOARD
8
17
A
B
C
D
E
1 2 3 4 5
C420
JW404
D401
A
K
(CHASSIS)
(CHASSIS)
(CHASSIS)

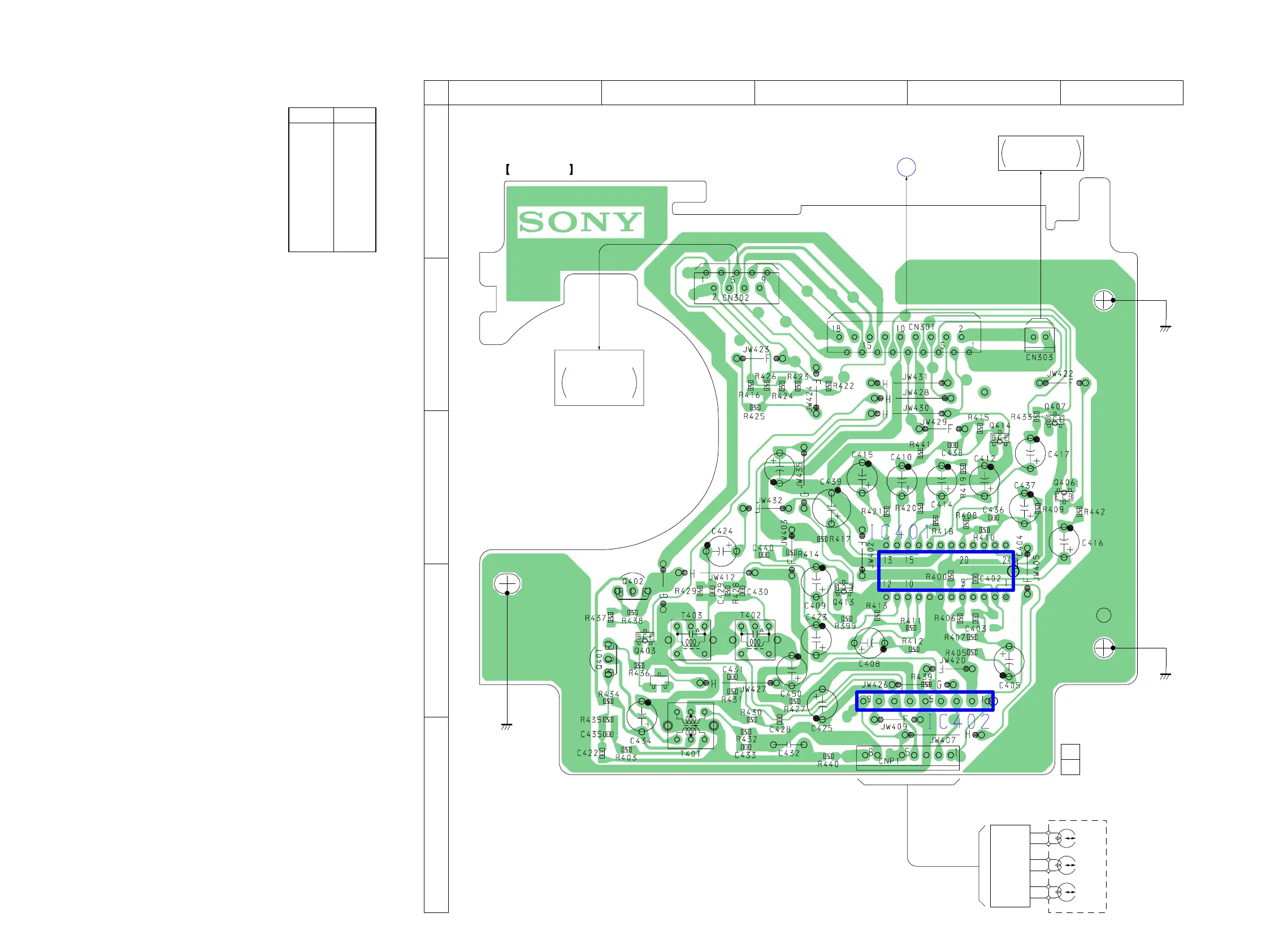

6-7. PRINTED WIRING BOARD – TC Board – • See page 18 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
(Page 27)
D401 D-2
IC401 D-4
IC402 D-4
Q401 D-2
Q402 D-2
Q403 D-2
Q406 C-5
Q407 C-4
Q413 D-3
Q414 C-4
