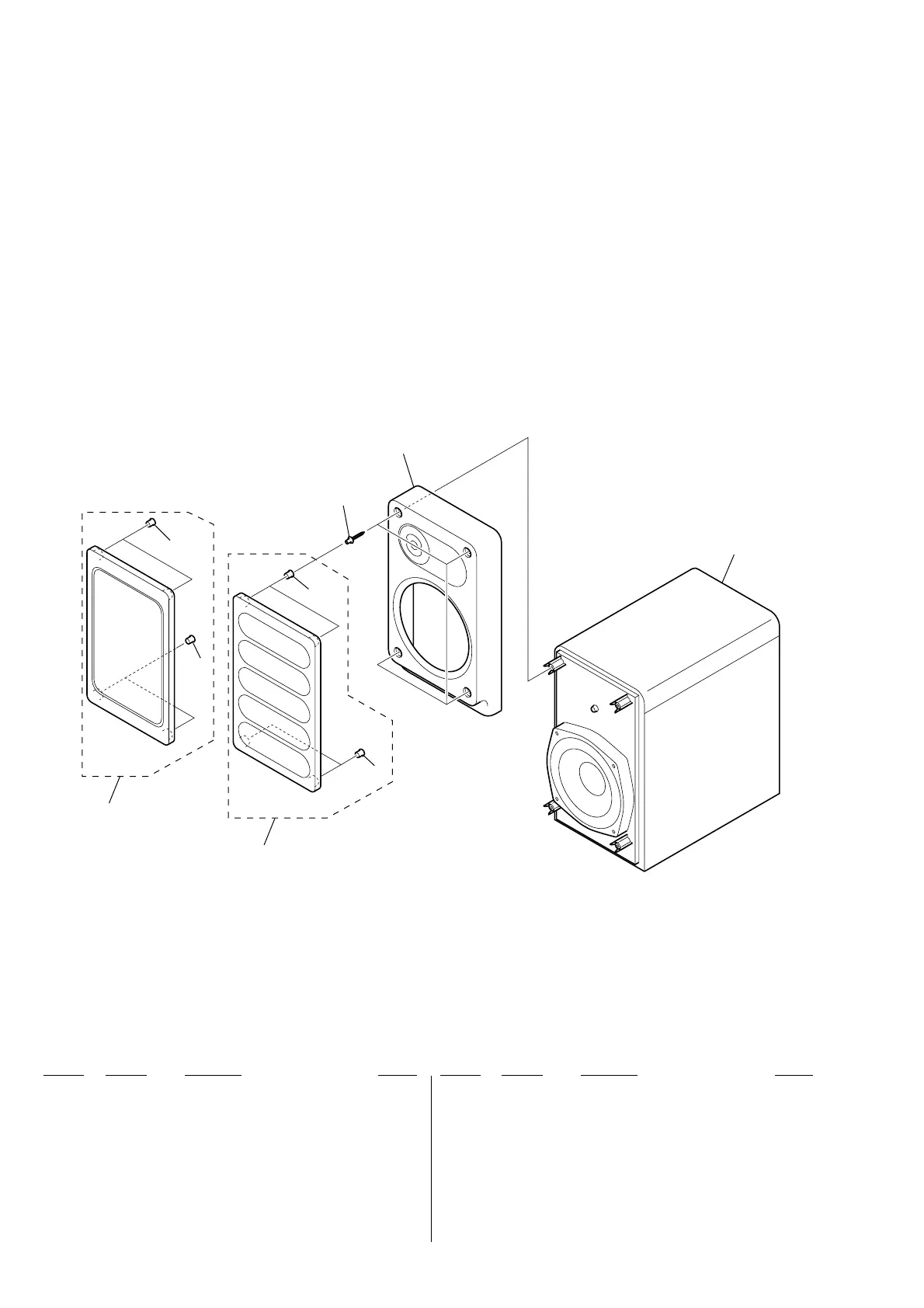

Sony CMT-DC1 - Speaker System Exploded View; SS-CDC1 Parts List

2
SS-CDC1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-4954-044-1 NET ASSY, SPEAKER (SILVER)
1 X-4954-079-1 NET ASSY, SPEAKER (BLACK)
1 X-4954-080-1 NET ASSY, SPEAKER (RED)
2 A-4735-768-A BOX ASSY, SPK (SILVER)
2 A-4735-769-A BOX ASSY, SPK (BLACK)
2 A-4735-770-A BOX ASSY, SPK (RED)
3 4-218-202-01 CATCHER, NET
4 A-4735-771-A FRONT PANEL ASSY, SPK (L, SILVER)
4 A-4735-772-A FRONT PANEL ASSY, SPK (R, SILVER)
4 A-4735-773-A FRONT PANEL ASSY, SPK(L, BLACK)
4 A-4735-774-A FRONT PANEL ASSY, SPK(R, BLACK)
4 A-4735-775-A FRONT PANEL ASSY, SPK (L, RED)
4 A-4735-776-A FRONT PANEL ASSY, SPK (R, RED)
5 4-874-614-11 SCREW (4) (3.5X14), TAPPING
6 X-4954-317-1 NET ASSY (A), SPEAKER (SILVER)
6 X-4954-318-1 NET ASSY (A), SPEAKER (BLACK)
6 X-4954-319-1 NET ASSY (A), SPEAKER (RED)
EXPLODED VIEW AND PARTS LIST
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
1
6
3
2
3
3
3
5
4
Ver 1.1
