Sony CX-LEM200 - Printed Wiring Board - CD Section

1919
CX-LEM200

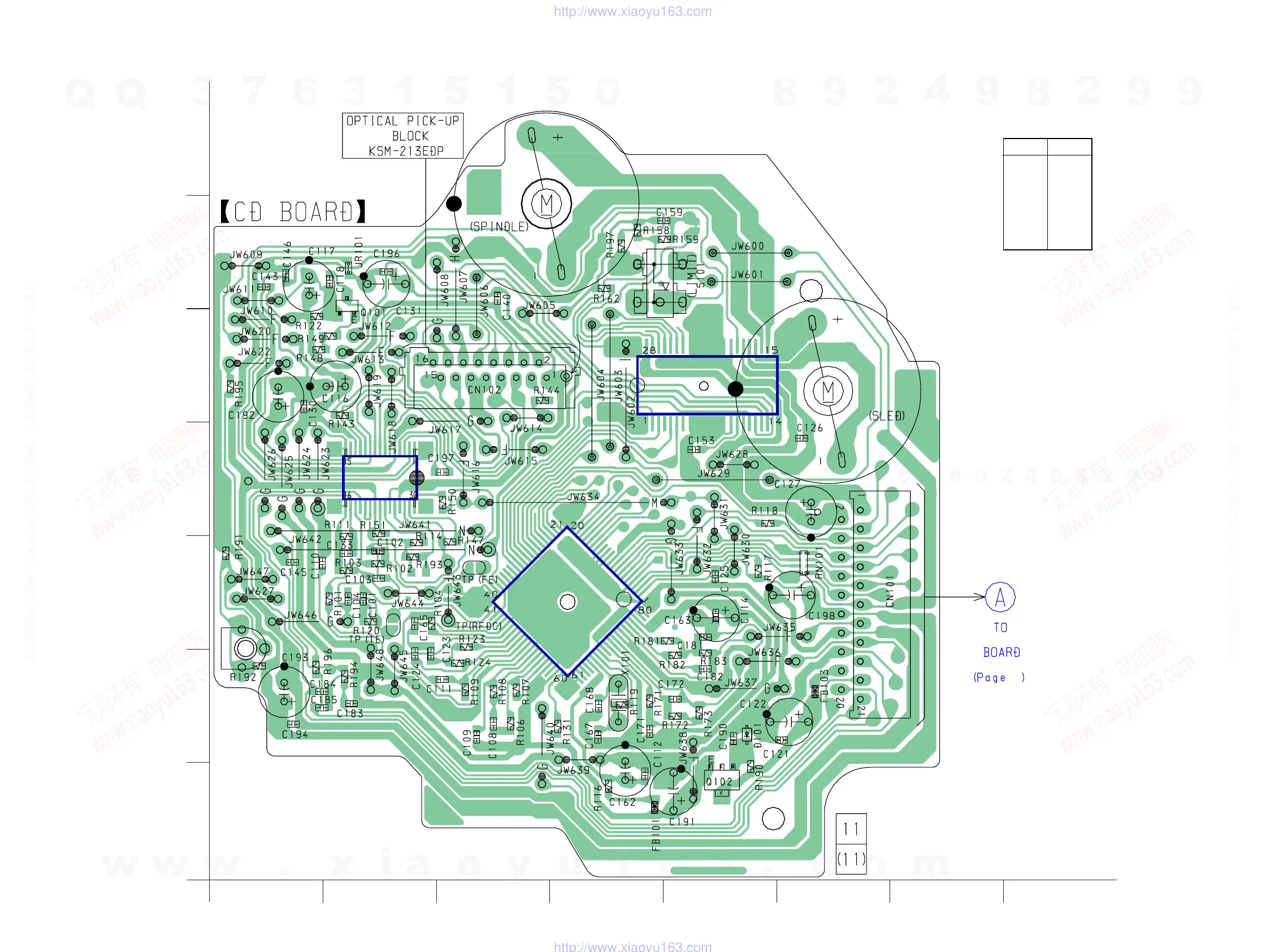

6-3. Printed Wiring Board – CD Section –
IC102
IC101
IC103
TP (VC)
TP (RFAC)
TP (DVC)
CN803
23
1-680-849-
CONTROL
12
A
B
C
D
E
F
G
345678
Ref. No. Location
D101 F-5
IC101 E-4
IC102 C-5
IC103 D-2
Q101 C-2
Q102 G-5
• Semiconductor
Location
• See page 15 for Circuit Boards Location.
