SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
30
CX-LEM200
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
AUS : Australian model.
CND : Canadian model.
SP : Singapore model.
MY : Malaysia model.
TW : Taiwan model.
KR : Korean model.
E51 : Chilean and Peruvian models.
MX : Mexican model.
1 A-4732-682-A MAIN BOARD, COMPLETE (EXCEPT US,CND)
1 A-4732-687-A MAIN BOARD, COMPLETE (US,CND)
7 4-245-014-11 CABINET REAR (US,CND,AEP,UK)
7 4-245-014-31 CABINET REAR (E51,AUS,MX,TW,KR)
7 4-245-014-41 CABINET REAR (SP,MY)
08 1-696-169-12 CORD, POWER (AEP,UK)
08 1-769-079-22 CORD, POWER (KR)
08 1-769-744-52 CORD, POWER (E51,SP,MY)
08 1-775-790-31 CORD, POWER (AUS)
08 1-783-531-22 CORD, POWER (TW)
08 1-783-531-81 CORD, POWER (US,CND)
08 1-827-226-11 CORD, POWER (MX)
9 1-688-197-11 POWER BOARD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
10 1-693-620-11 TUNER (FM/AM)(EXCEPT AEP,UK,KR,CND)
10 1-693-622-11 TUNER (FM/AM)(AEP,UK,KR)
10 1-693-624-11 TUNER (FM/AM)(CND)
11 4-246-784-01 FOOT RUBBER (US,AEP,UK,E51,MX)
0 T902 1-439-784-11 TRANSFORMER, POWER (AEP,UK)
0 T902 1-439-785-11 TRANSFORMER, POWER (US,CND)
0 T902 1-439-777-11 TRANSFORMER, POWER
(E51,SP,MY,AUS,TW,MX)
0 T902 1-443-040-11 TRANSFORMER, POWER (KR)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-647-11 SCREW +B 3X10
#6 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
#7 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
Ver 1.1 2003.06

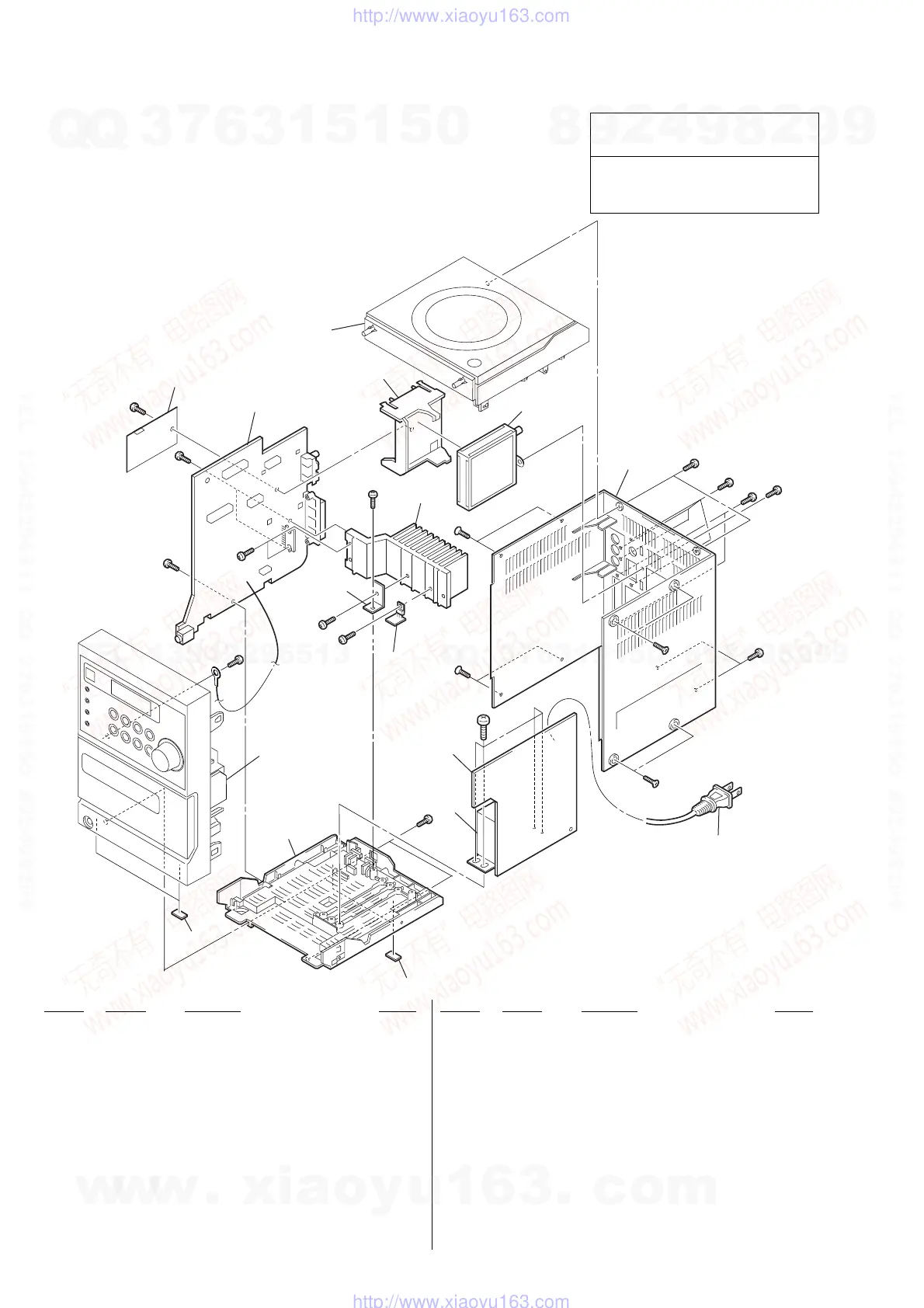

7-1. Cabinet Section
9
11
11
#6
#7
#1
#1
front panel section
#1
#1
#1
#1
1
10
7
8
#7
#1
CD cabinet section
#1
#1
#1
#
#1
#1
#7
#7
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not
supplied
#1
