Sony CX-LEM200 - 3 Disassembly; Rear Cabinet

7
CX-LEM200
SECTION 3
DISASSEMBLY

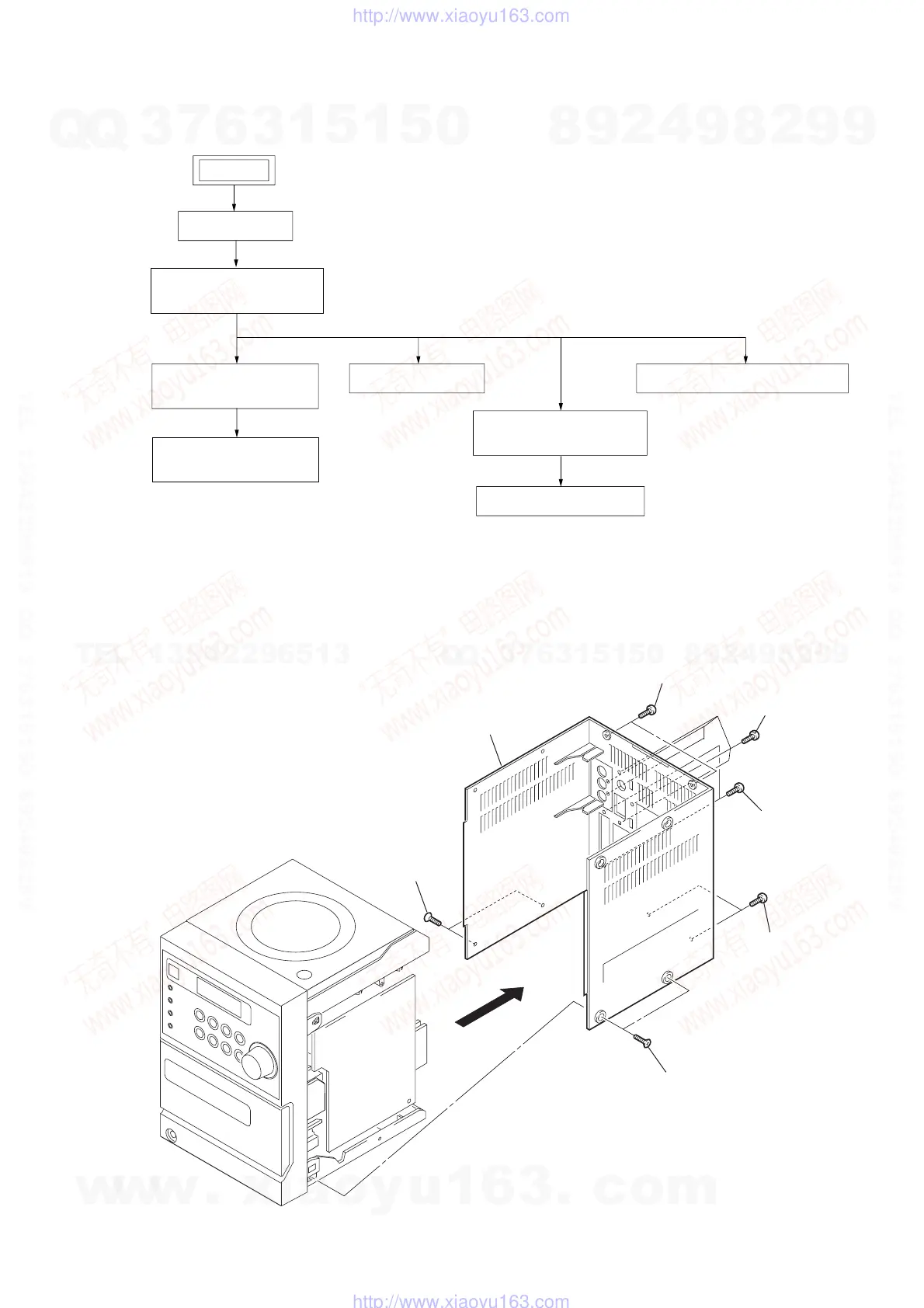

Note: Follow the disassembly procedure in the numerical order given.
• This set can be disassembled in the order shown below.
3-1. Rear Cabinet
REAR CABINET
CD MECHANISM DECK
(KSM-213EDP)
OPTICAL PICK-UP
(KSS-213E/C2N)
CONTROL BOARD POWER BOARD , MAIN BOARD
TAPE MECHANISM DECK
(CMAL5Z220A)
CASSETTE DOOR ASSY
SET
CD CABINET SECTION,
FRONT PANEL SECTION
1 two screws
(+BVTP3 × 10)
3 two screws
(+BVTP3 × 10)
4 two screws
(+BVTP3 × 10
)
2 five screws
(+BVTP3
× 10)
5 two screws
(+K3 × 5)
6 two screws
(+K3 × 5)
7 rear cabinet
