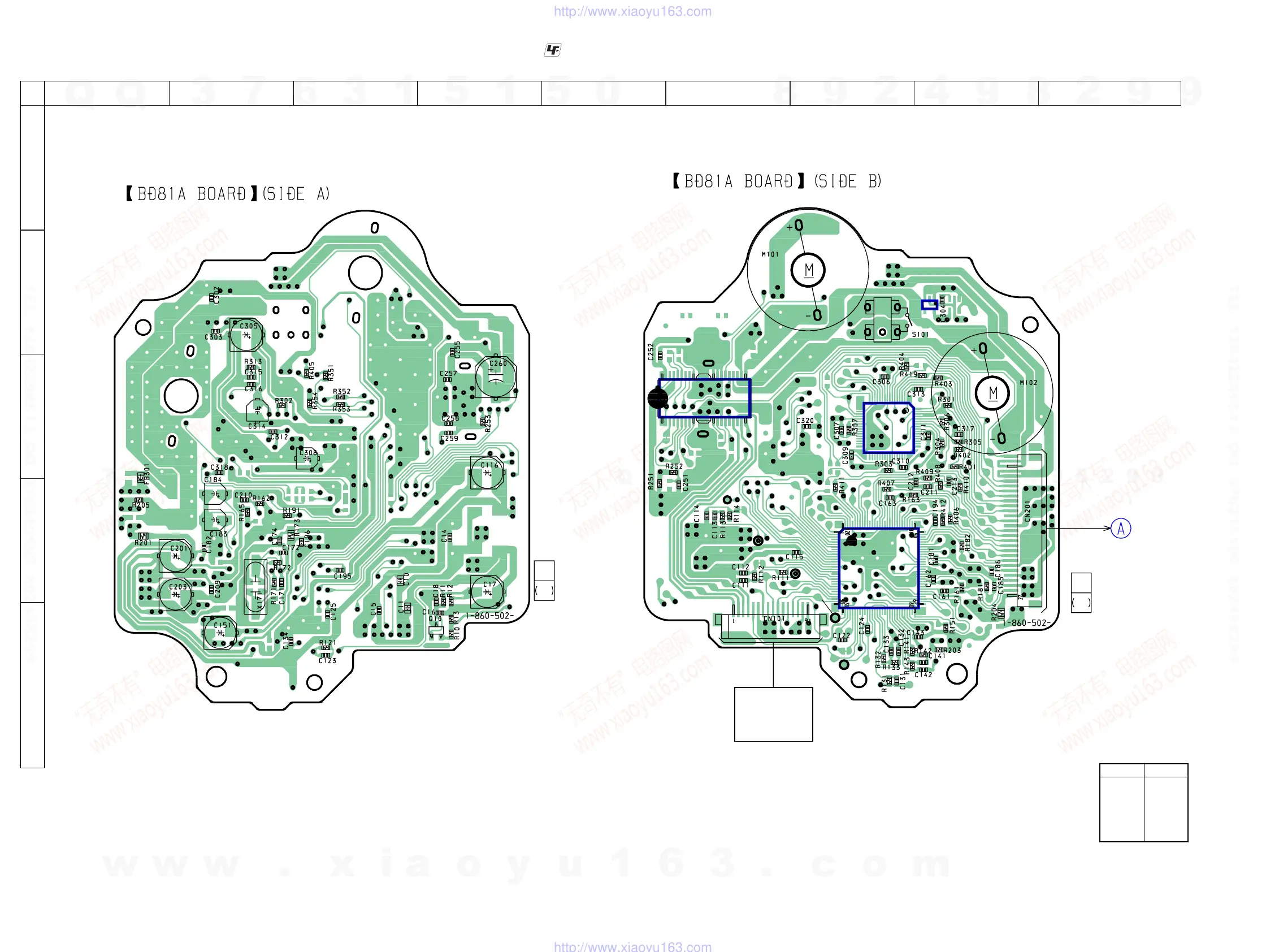

7-2. PRINTED WIRING BOARD — BD81A SECTION —
• Semiconductor
Location
Ref. No. Location
IC101 D-7
IC251 C-6
IC301 C-7
IC303 B-7
Q10 E-4
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
IC251
IC101
IC301
IC303
OPTICAL
PICK-UP
BLOCK
(KSM–215DCP)
MAIN
BOARD
CN604
(Page 26)
SPINDLE
MOTOR
SLED
MOTOR
(LIMIT)
4
5
1
1
64
16
17
32
33
48
49
3
12
A
B
C
D
E
3456789
E
12
12
1
9
10
18
192728
36
12
12
TP
(VC)
TP
(TEO)
TP
(FEO)
TP
(RFACO)
TP
(RFDCO)
