CX-LFA660/LFA770
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
Ref. No. Part No. Description Remark

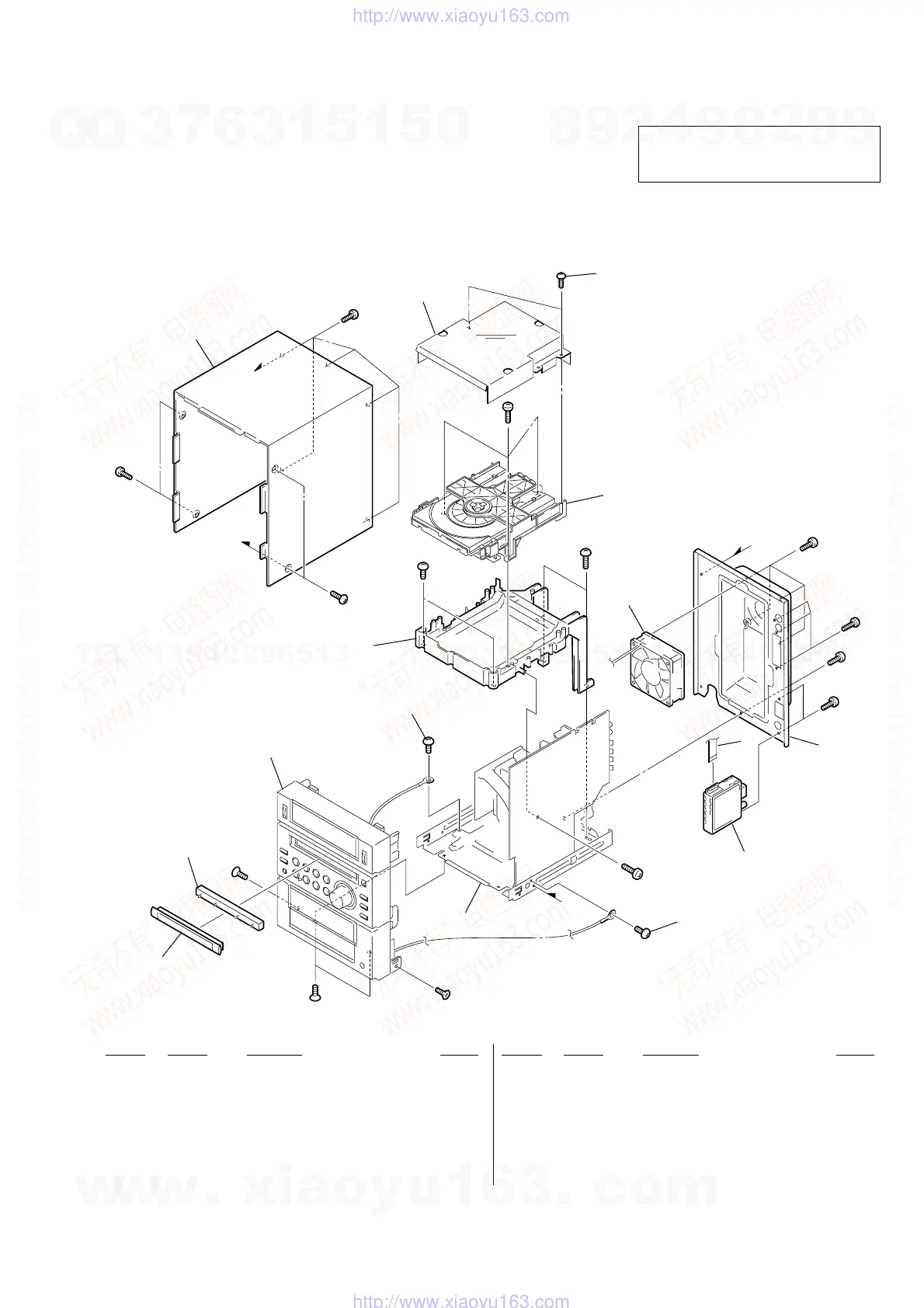

8-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
7
6
not
supplie
a
b
2
3
#3
#2
#4
#2
#3
#3
#3
#3
#3
#3
a
front panel section
CD mechanism deck section
(CDM77B-F1BD81A)
chassis section
not
supplied
not
supplied
not
supplied
#4
#1
#1
#1
4
4
5
1
b
Ref. No. Part No. Description Remark
1 2-059-826-01 PANEL (DVD)
2 2-024-357-11 COVER TOP (660)
2 2-024-357-21 COVER TOP (770)
3 4-951-620-11 SCREW (2.6X10), +BVTP
4 3-970-608-11 SUMITITE (B3), +BV
5 1-787-194-11 FAN, DC
6 1-827-731-11 WIRE (FLAT TYPE) (11 CORE) (AUS)
6 1-828-984-11 WIRE (FLAT TYPE) (15 CORE) (EXCEPT AUS)
7 1-693-626-11 TUNER (FM/AM) (EXCEPT AUS)
7 1-693-628-21 TUNER (FM/AM) (AUS)
#1 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
#2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
