43
CX-LFA660/LFA770
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

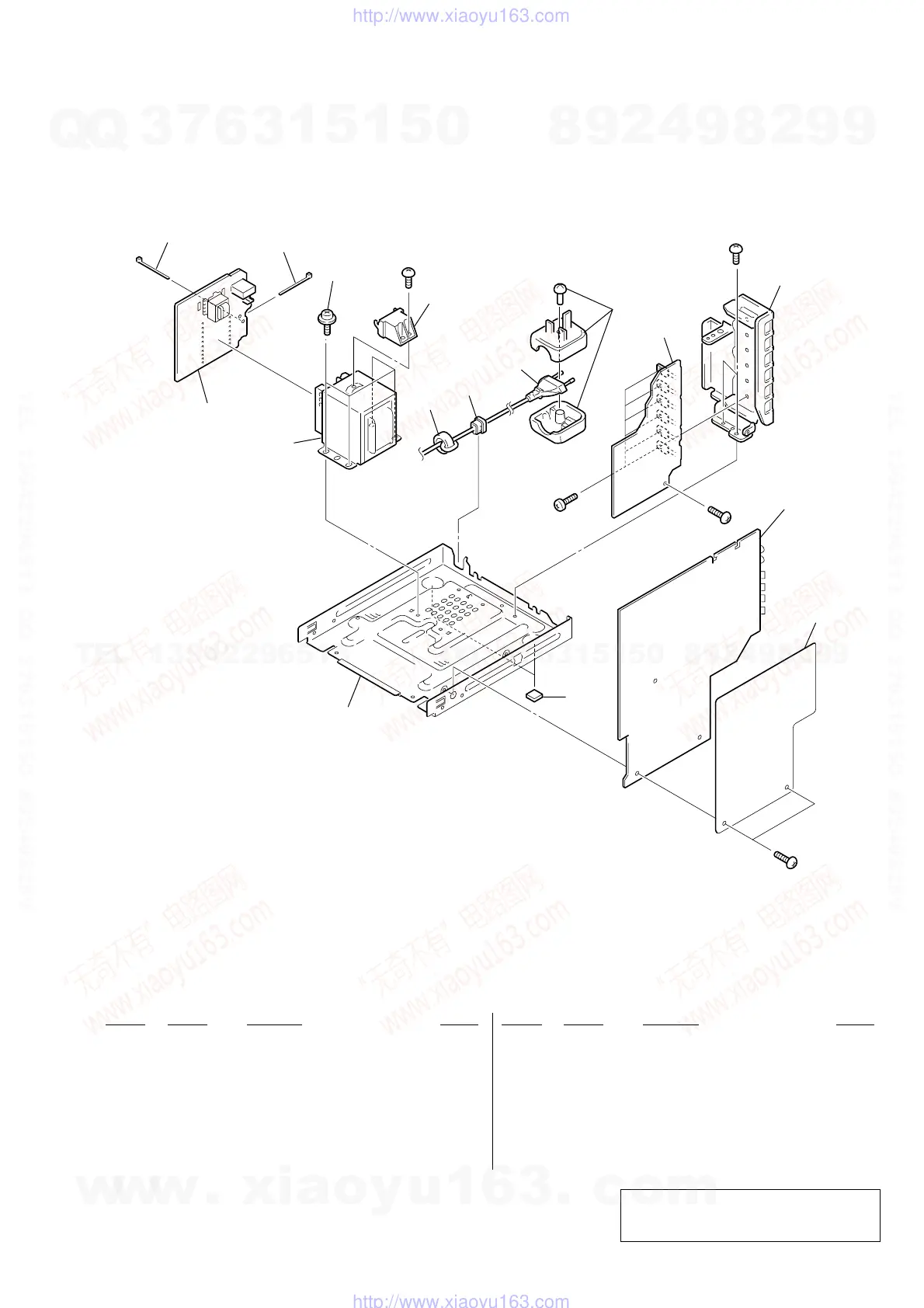

B8-3. CHASSIS SECTION
101
107
103
PT252
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
102
104
105
108
106
#4
#4
#4
#3
#3
101 1-469-636-11 CORE, FERRITE (ESD-R-25SD)
102 3-703-244-00 BUSHING (2104), CORD
103 4-900-386-01 SCREW
0 104 1-696-848-12 CORD, POWER (AUS)
0 104 1-769-744-52 CORD, POWER (AEP, UK)
105 A-1054-464-A AMP (A) BOARD, COMPLETE (770)
105 A-1056-986-A AMP (A) BOARD, COMPLETE (660)
106 A-1054-462-A MAIN (A) BOARD, COMPLETE (770)
106 A-1056-982-A MAIN (A) BOARD, COMPLETE (660:AEP,UK)
106 A-1057-173-A MAIN (A) BOARD, COMPLETE (AUS)
107 4-247-752-01 FOOT, RUBBER
0108 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
0PT252 1-443-407-11 TRANSFORMER, POWER (770)
0PT252 1-443-408-11 TRANSFORMER, POWER (660)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
