CX-LFA660/LFA770
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

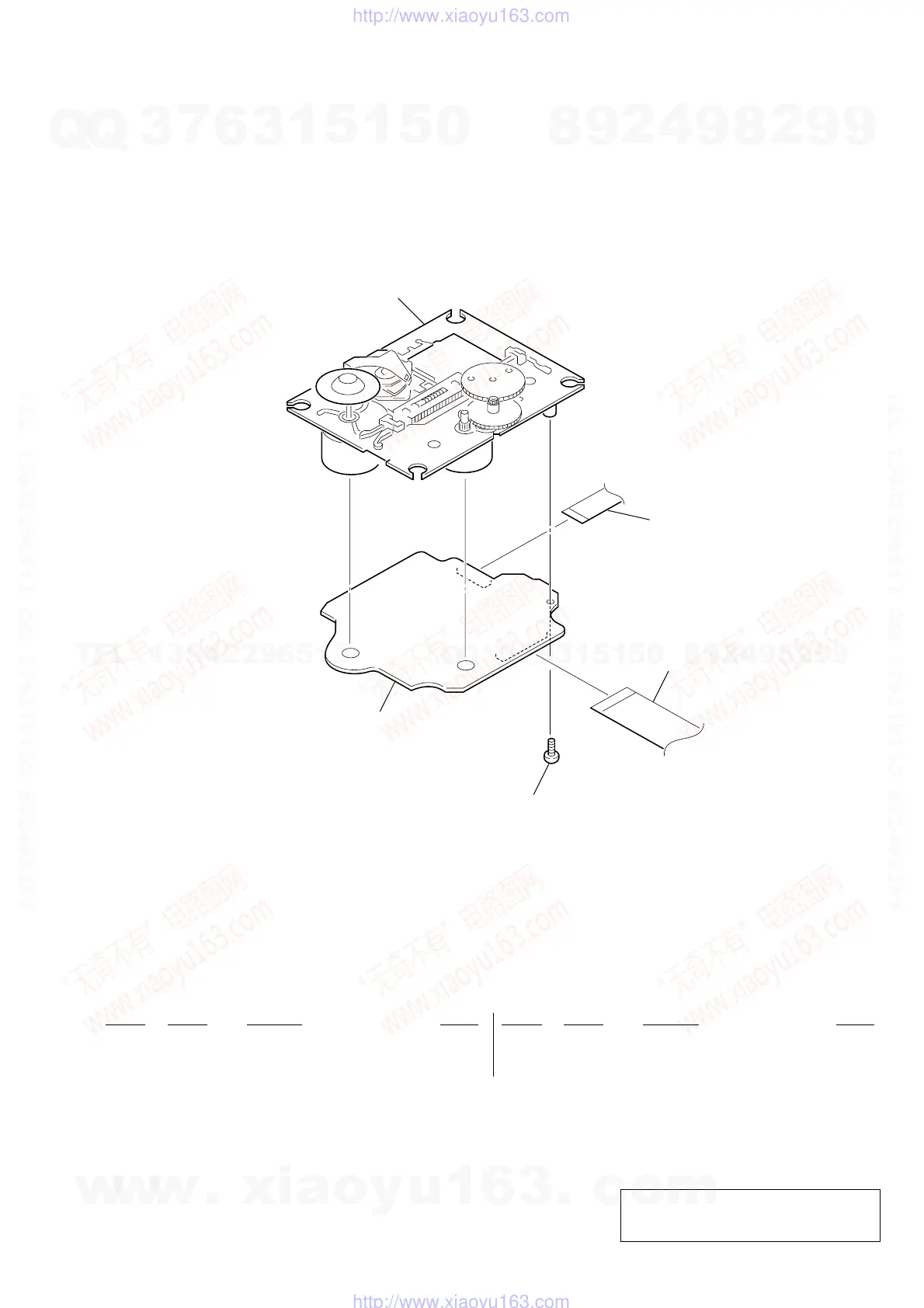

8-5. BASE UNIT (BU-F1BD81A)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
202
203
204
205
201
201 A-4751-431-A BD81A BOARD, COMPLETE
0 202 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP)
203 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
204 1-828-659-11 WIRE (FLAT TYPE) (27 CORE)
205 3-087-053-01 +BVTP 2.6 (3CR)
