Getting Started – BASIC –
The following is the basic connection of the system.

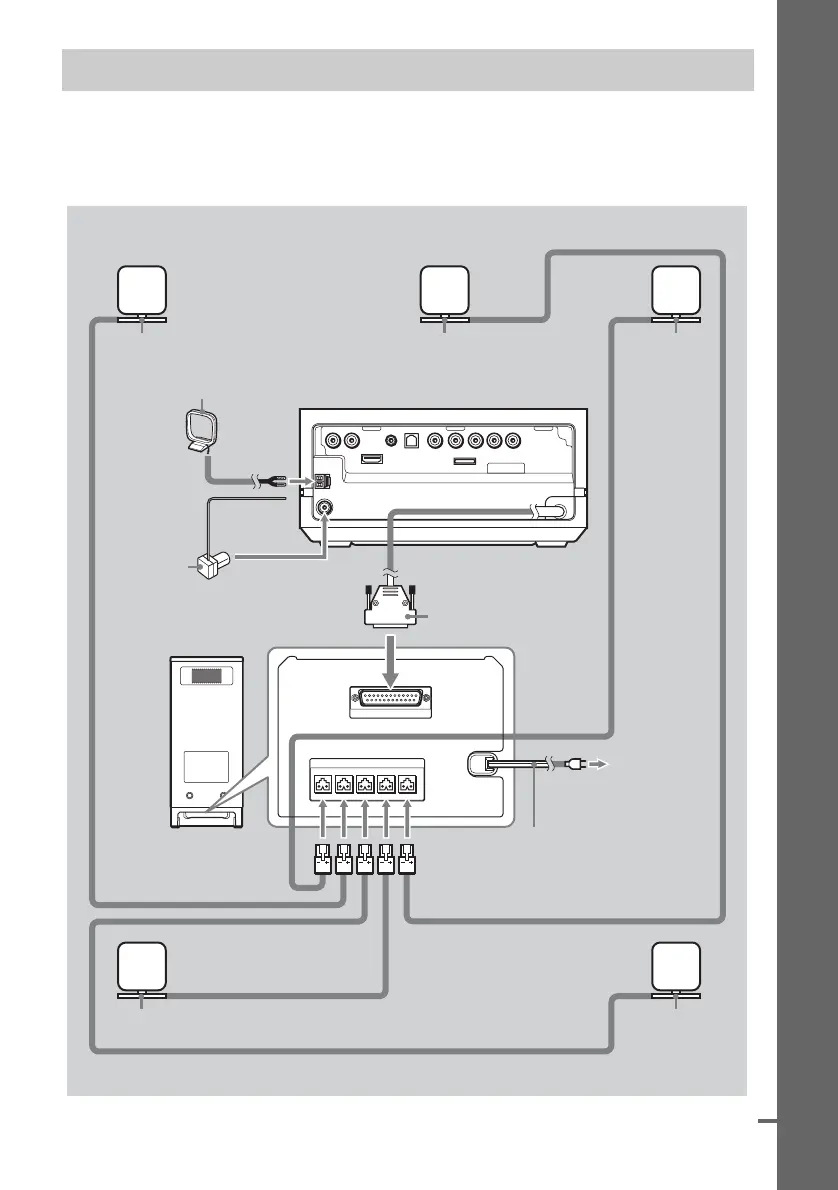

Refer to the connection diagram below, and read the additional information from 1 to 4 on the
following pages.
Step 2: Connecting the System
DMPORT
CENTERSUR LSUR RFRONT LFRONT R
SYSTEM CONTROL
ONLY FOR HCD-IS10
SPEAKER
ONLY FOR SS-IS10
3 AM loop antenna (aerial)
Subwoofer
4 AC power cord
(mains lead)
3 FM wire
antenna
(aerial)
2 Front
speaker (L)
2 Center speaker
2 Surround
speaker (R)
2 Surround
speaker (L)
2 Front
speaker (R)
1 Plug
Bottom of the
subwoofer
Rear of the control unit
cont
nue
To Next Page
