Sony Digital Duplicator - 4 A: Connecting the Audio Components

19
GB
Getting Started
Notes
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tips
• To output the sound of the TV from the speakers
connected to the receiver, be sure to
– connect the audio output jacks of the TV to the
TV IN jack of the receiver.
– turn off the TV’s volume or activate the TV’s
muting function.
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
4a: Connecting the audio
components

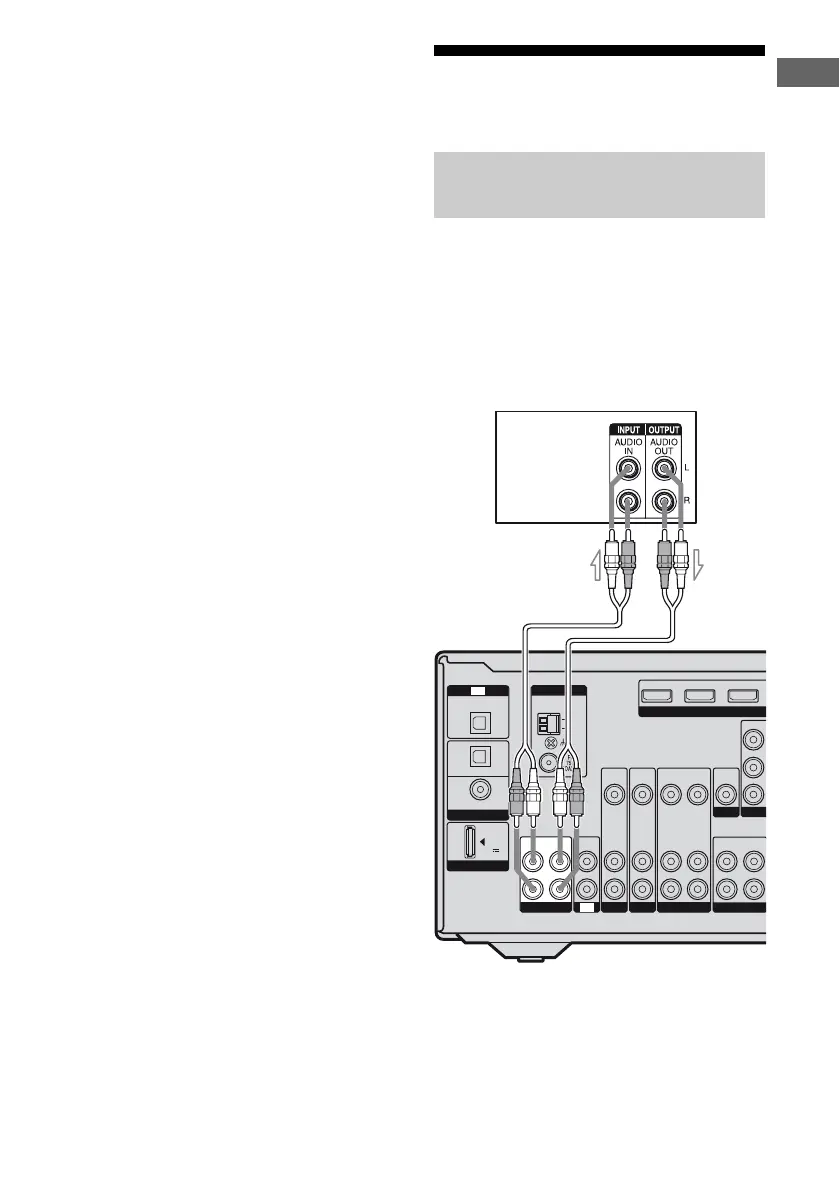

The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder. Before connecting the cords,
be sure to disconnect the AC power cord.
After connecting your audio component,
proceed to “4b: Connecting the video
components” (page 20).
Connecting a Super Audio CD
player/CD player or CD recorder
VIDEO
OUT
SAT IN
VIDEO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
AUDIO
IN
AUDIO
OUT
SUBWOOFER
AM
ANTENNA
L
R
IN
SAT DVD VIDEO 1
VIDEO
OUT
MONITOR
C
DIGITAL
(ASSIGNABLE)
OPTICAL
OPTICAL
SAT
IN
DVD
IN
COAXIAL
IN
TV
DMPORT
DC5V
0.7A MAX
HDMI
SAT IN DVD IN BD IN
R
SA-CD / CD / CD-R
L
INOUT
TV
Super Audio
CD player/
CD player/
CD recorder
A
A Audio cord (not supplied)
