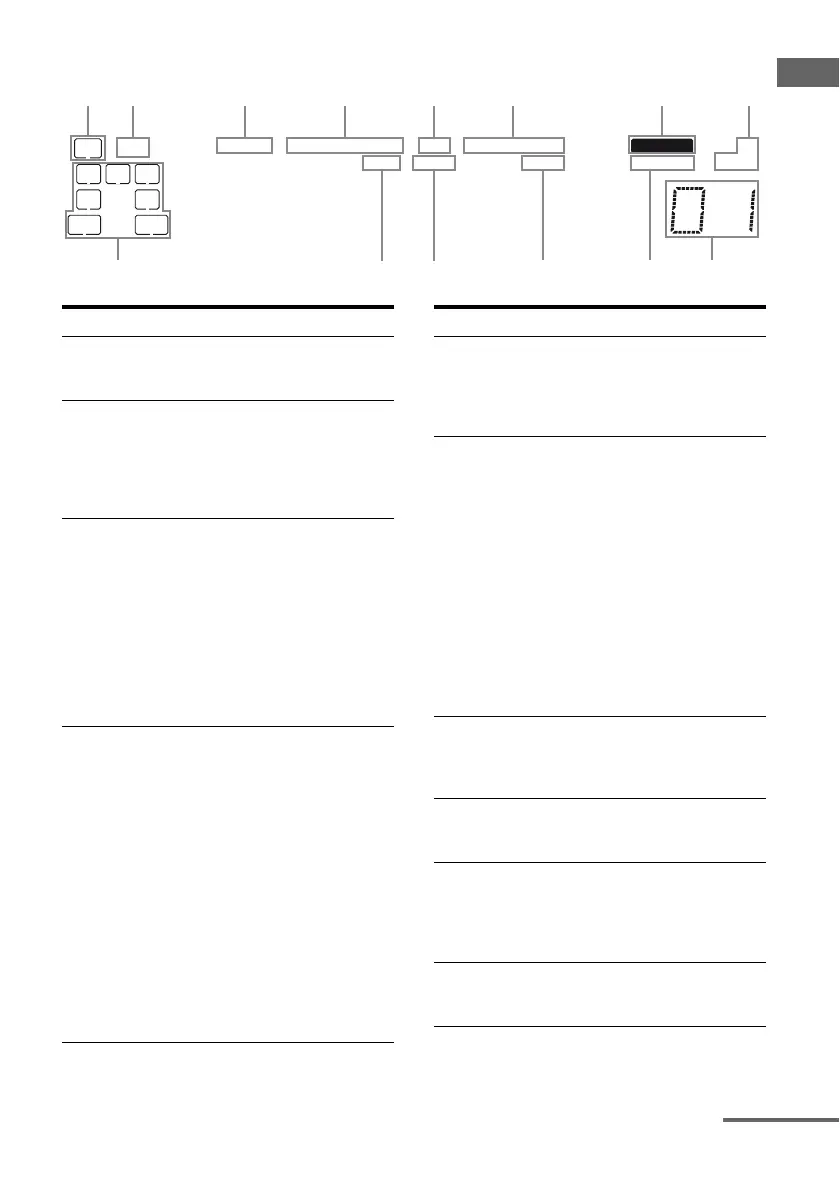

About the indicators on the display
SW
LFE
LC
SL S
;
D EX
;
PLIIx
;
PL OPT DTS
-ES 96/24 MEMORY ST
MONOD.RANGECOAXHDMI NEO:6
R
SR
9q;qf qsqd qa
SB
SBL SBR
Name Function
A SW Lights up when the audio signal
is output from the
SUBWOOFER jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C ; D/
; D EX
“; D” lights up when Dolby
Digital signals are input.
“; D EX” lights up when
Dolby Digital Surround EX
signals are decoded.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set to
“AUTO” (page 65).
D ; PL/
; PLII/
; PLIIx
“; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PLII” lights up when the
Pro Logic II Movie/Music/
Game decoder is activated.
“; PLIIx” lights up when the
Pro Logic IIx Movie/Music/
Game decoder is activated.
Note
Dolby Pro Logic IIx decoding
does not function for DTS
format signals or for signals
with a sampling frequency of
more than 48 kHz.
Name Function
E OPT Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack (page 65).
F DTS/
DTS-ES/
DTS 96/24
“DTS” lights up when the
receiver is decoding DTS
signals.
“DTS-ES” lights up when the
receiver is decoding DTS-ES
signals.
“DTS 96/24” lights up when the
receiver is decoding DTS 96
kHz/24 bit signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is set to
“AUTO” (page 65).
G MEMORY Lights up when a memory
function, such as Preset
Memory (page 57), etc., is
activated.
H Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 55), etc.
I Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 57.
J D.RANGE Lights up when dynamic range
compression is activated (page
42).
