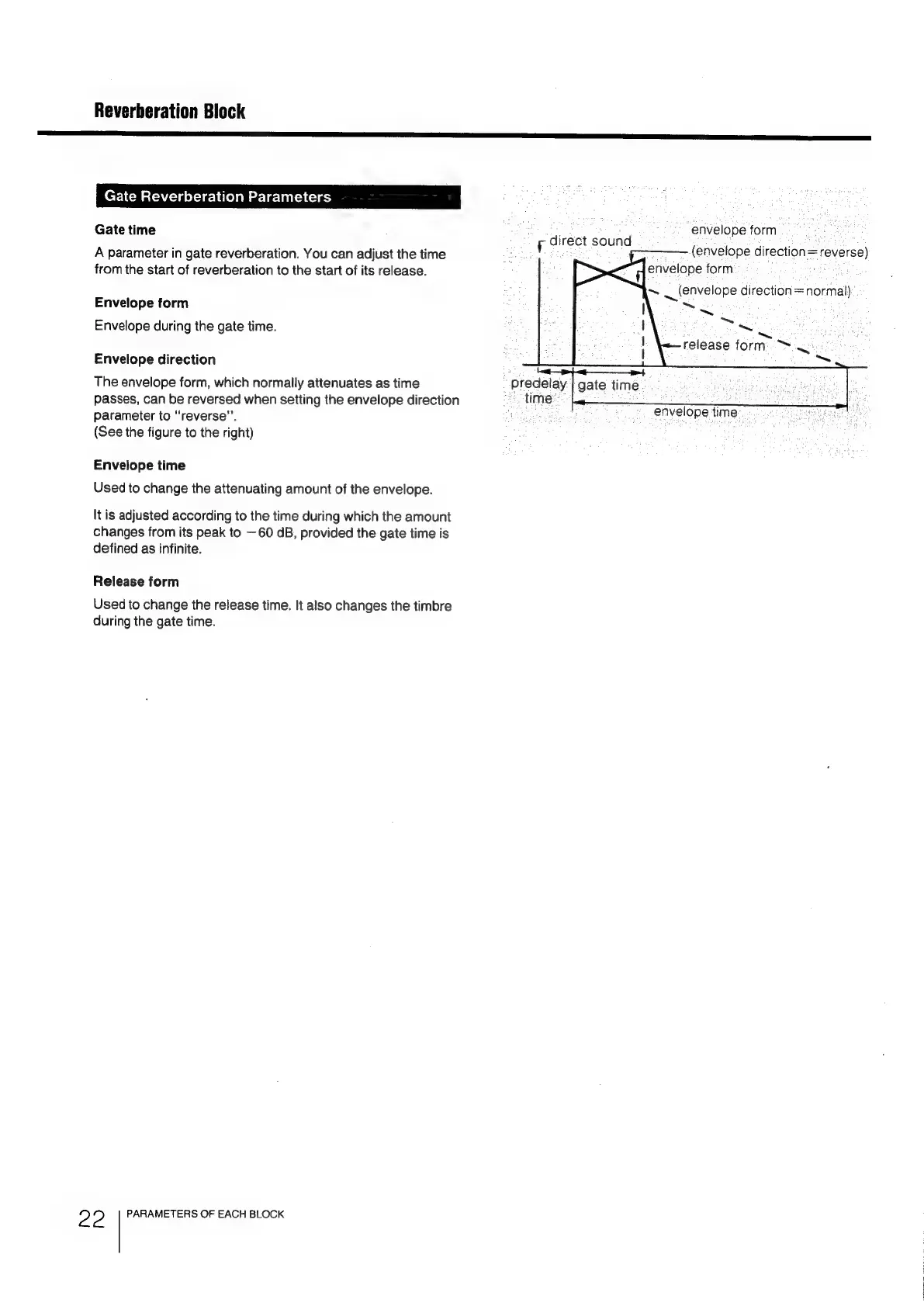

Reverberation Block
Gate Reverberation Parameters
Gate time
A parameter in gate reverberation. You can adjust the time
from the start of reverberation to the start of its release.
Envelope form
Envelope during the gate time.
Envelope direction
The envelope form, which normally attenuates as time
passes, can be reversed when setting the envelope direction
parameter to “reverse”’.
(See the figure to the right)
Envelope time
Used to change the attenuating amount of the envelope.
It is adjusted according to the time during which the amount
changes from its peak to — 60 dB, provided the gate time is
defined as infinite.
Release form
Used to change the release time. It also changes the timbre
during the gate time.
2 2 PARAMETERS OF EACH BLOCK
envelope form
direct sound pase
f
;
(envelope
direction=reverse)
<4 envelope form
~ ~ (envelope direction =normal)
~
~
~
; SS
release form...
~
predelay | gate time
time
envelope time
