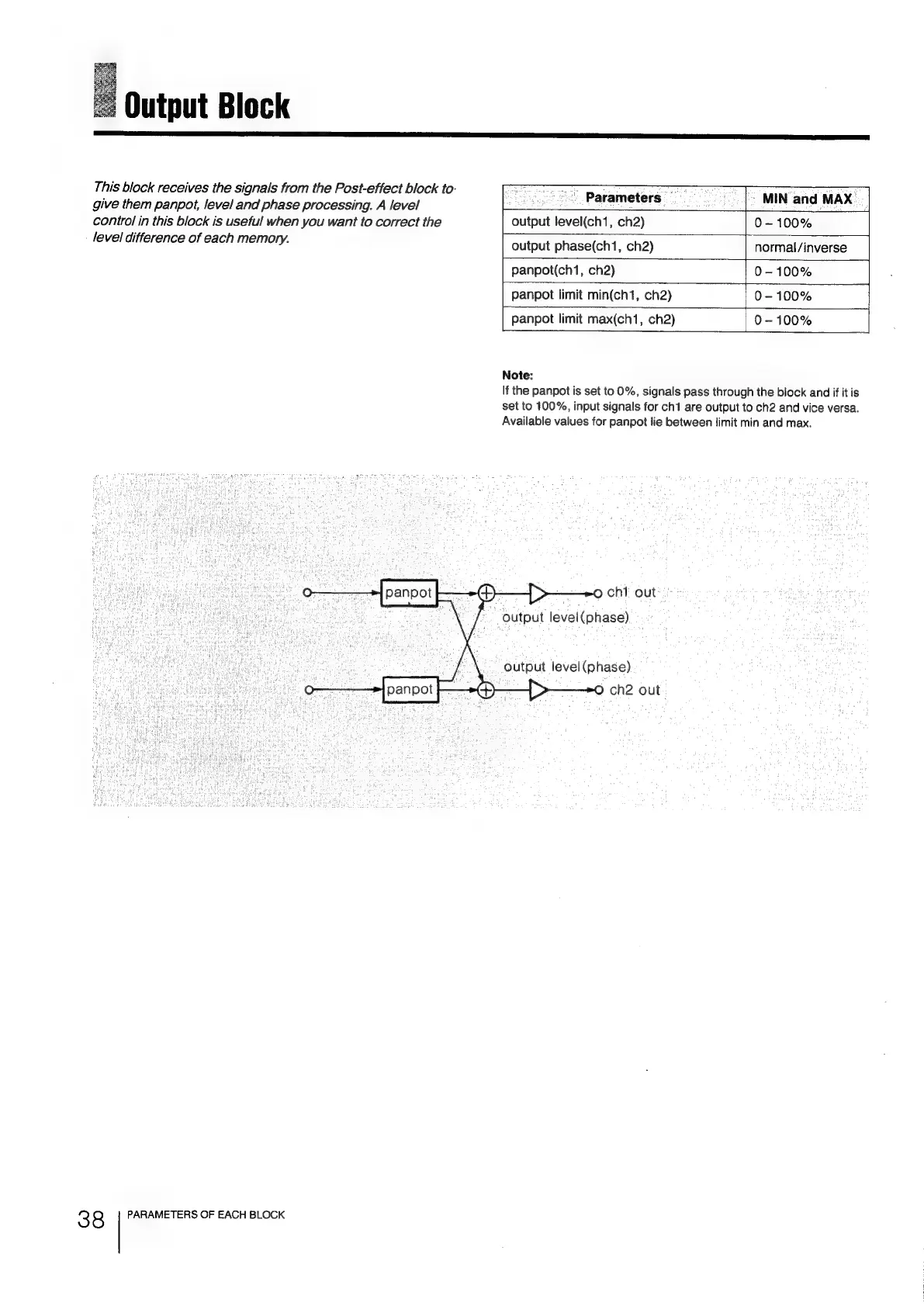

Output Block
eee
a
TIE
2
I
I
Ts
TE
This block receives the signals from the Post-effect block to-
give them panpot, level and phase processing. A level
control in this block is useful when you want to correct the
level difference of each memory.
3 8 PARAMETERS OF EACH BLOCK
ooo Parameters 002000 -./- MIN'and MAX.
output level(ch1, ch2) 0-100%
output phase(ch1, ch2) normal/inverse
panpot(ch1, ch2) 0-100%
panpot limit min(cht, ch2) 0- 100% |
panpot limit max(ch1, ch2) 0-100%
Note:
If the panpot is set to 0%, signals pass through the block and if it is
set to 100%, input signals for chi are output to ch2 and vice versa.
Available values for panpot lie between limit min and max.
© cht out
“output level(phase)
output level (phase)
anpot O ch2 out
