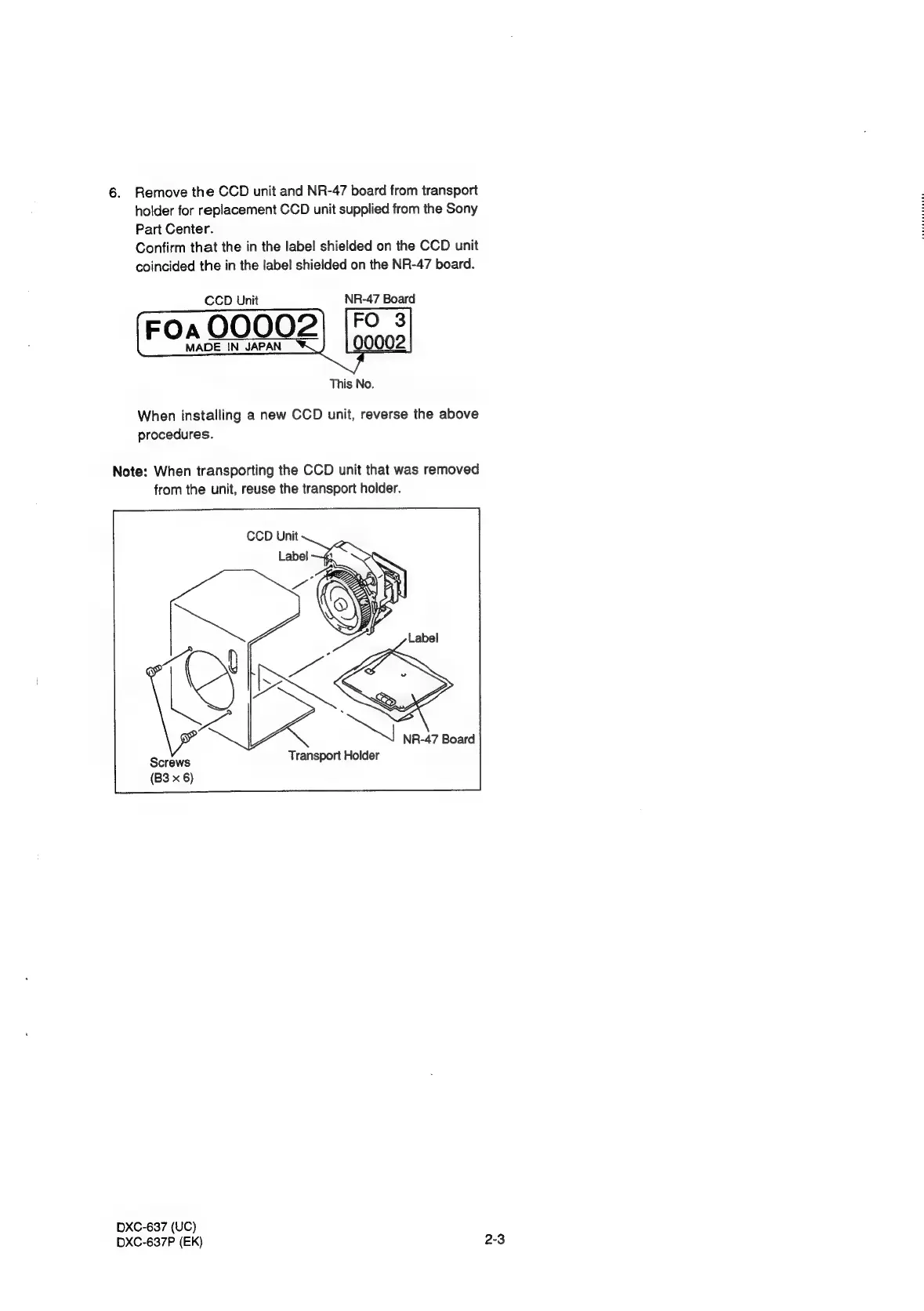

6. Remove the CCD unit and NR-47 board from transport
holder for replacement CCD unit supplied from the Sony
Part Center.
Confirm that the in the label! shielded on the CCD unit
coincided the in the label shielded on the NR-47 board.
CCD Unit NR-47 Board
When installing a new CCD unit, reverse the above
procedures.
This No.
Note: When transporting the CCD unit that was removed
from the unit, reuse the transport holder.
NR-47 Board
Transport Holder
DXC-637 (UC)
DXC-637P (EK) 2-3
