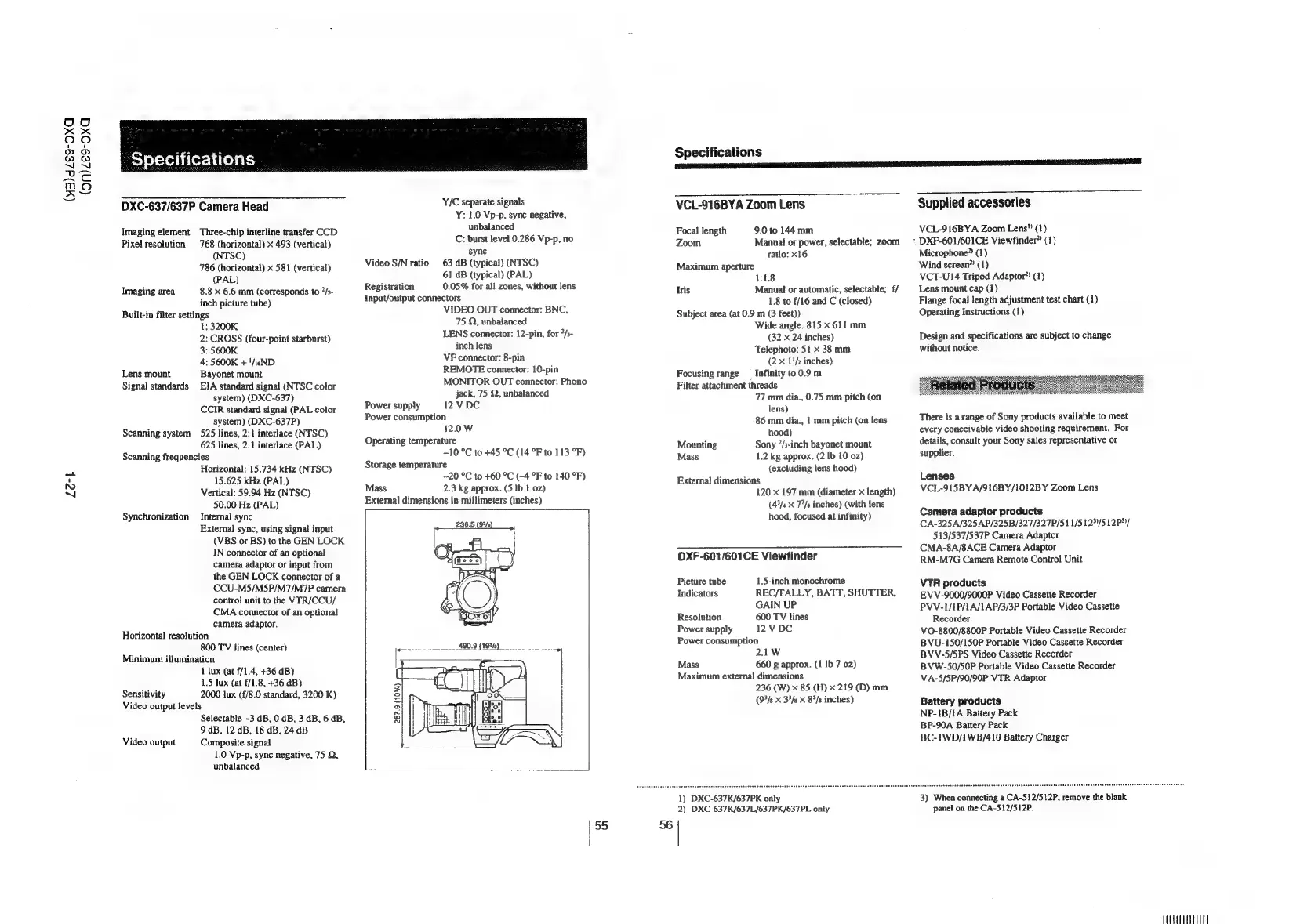

Specifications
DXC-637/637P Camera Head
Imaging element Three-chip interline transfer CCD
Pixel resolution 768 (horizontal) x 493 (vertical)
(NTSC)
786 (horizontal) x 581 (vertical)
(PAL)
8.8 x 6.6 mm (corresponds to ?/s-
inch picture tube)
Built-in filter settings
1; 3200K
2: CROSS (four-point starburst)
3: 5600K
4: 5600K + '/isND
Lens mount Bayonet mount
Signal standards EIA standard signal (NTSC color
system) (DXC-637)
CCIR standard signal (PAL color
system) (DXC-637P)
Scanning system 525 lines, 2:1 interlace (NTSC)
625 lines, 2:1 interlace (PAL)
Scanning frequencies
Horizontal: 15.734 kHz (NTSC)
15.625 kHz (PAL)
Vertical: 59.94 Hz (NTSC)
50.00 Hz (PAL)
Internal sync
External sync, using signal input
(VBS or BS) to the GEN LOCK
IN connector of an optional
camera adaptor or input from
the GEN LOCK connector of a
CCU-M5/MSP/M7/M7P camera
control unit to the VTR/CCU/
CMA connector of an optional
camera adaptor.
Horizontal resolution
800 TV lines (center)
Minimum illumination
1 lux (at £/1.4, +36 dB)
1.5 Jux (at £/1.8, +36 dB)
Sensitivity 2000 lux (f/8.0 standard, 3200 K)
Video output levels
Selectable -3 dB, 0 dB, 3 dB, 6 dB,
9 dB, 12 dB, 18 dB, 24 dB
Composite signal
1.0 Vp-p, sync negative, 75 Q,
unbalanced
Imaging area
Synchronization
Video output
Y/C separate signals
Y: 1.0 Vp-p, sync negative,
unbalanced
C: burst level 0.286 Vp-p, no
sync
63 dB (typical) (NTSC)
61 dB (typical) (PAL)
Registration 0.05% for all zones, without lens
Input/output connectors
VIDEO OUT connector: BNC,
75 Q, unbalanced
LENS connector: 12-pin, for 7/3-
inch lens
VF connector: 8-pin
REMOTE connector: 10-pin
MONITOR OUT connector: Phono
jack, 75 Q, unbalanced
Power supply 12 VDC
Power consumption
12.0 W
Operating temperature
-10 °C to +45 °C (14 °F to 113 °F)
Storage temperature
~20 °C to +60 °C (-4 °F to 140 °F)
Mass 2.3 kg approx. (5 Ib t oz)
Extemal dimensions in millimeters (inches)
Video S/N ratio
| 236.5 (9/6
has
1) DXC-637K/637PK only
56
Specifications
VCL-916BYA Zoom Lens Supplied accessories
Focal length 9.0 to 144 mm VCL-916BYA Zoom Lens" (1)
Zoom Manual or power, selectable; zoom = DXF-601/601CE Viewfinder” (1)
ratio: X16 Microphone” (1)
Maximum aperture
1:1.8
Iris Manual or automatic, selectable; f/
1.8 to f/16 and C (closed)
Subject area (at 0.9 m (3 feet))
Wide angle: 815 x 611 mm
(32 x 24 inches)
Telephoto: 51 x 38 mm
(2 x I'/2 inches)
Focusing range _ Infinity to 0.9m
Filter attachment threads
77 mm dia., 0.75 mm pitch (on
lens)
86 mm dia., 1 mm pitch (on lens
hood)
Mounting Sony 7/3-inch bayonet mount
Mass 1.2 kg approx. (2 lb 10 oz)
(excluding lens hood)
External dimensions
120 x 197 mm (diameter x length)
(4°/s x 7'/s inches) (with lens
hood, focused at infinity)
OXF-601/601CE Viewfinder
Picture tube 1,5-inch monochrome
Indicators REC/TALLY, BATT, SHUTTER,
GAIN UP
Resolution 600 TV lines
Power supply 12V DC
Power consumption
2.1.W
Mass 660 g approx. (1 Ib 7 oz)
Maximum external dimensions
236 (W) x 85 (H) x 219 (D) mm
(93/s x 3*/s X 8°/s inches)
2) DXC-637K/637L/637PK/637PL only
Wind screen” (1)
VCT-U14 Tripod Adaptor (1)
Lens mount cap (1)
Flange focal length adjustment test chart (1)
Operating Instructions (1)
Design and specifications are subject to change
without notice.
There is a range of Sony products available to meet
every conceivable video shooting requirement. For
details, consult your Sony sales representative or
supplier.
Lenses
VCL-915BYA/916BY/1012BY Zoom Lens
Camera adaptor products
CA-325A/325 AP/325B/327/327P/5 1 1/5 1251/5 12P*/
513/537/537P Camera Adaptor
CMA-8A/8ACE Camera Adaptor
RM-M7G Camera Remote Control Unit
VTR products
EVV-9000/9000P Video Cassette Recorder
PVV-1/EP/1A/1AP/3/3P Portable Video Cassette
Recorder
VO-8800/8800P Portable Video Cassette Recorder
BVU-150/150P Portable Video Cassette Recorder
BVV-5/S5PS Video Cassette Recorder
BVW-50/50P Portable Video Cassette Recorder
VA-5/SP/90/90P VTR Adaptor
Battery products
NP-1B/tA Battery Pack
BP-90A Battery Pack
BC-1WD/1WB/410 Battery Charger
3) When connecting a CA-512/512P, remove the blank
panel on the CA-512/512P.
