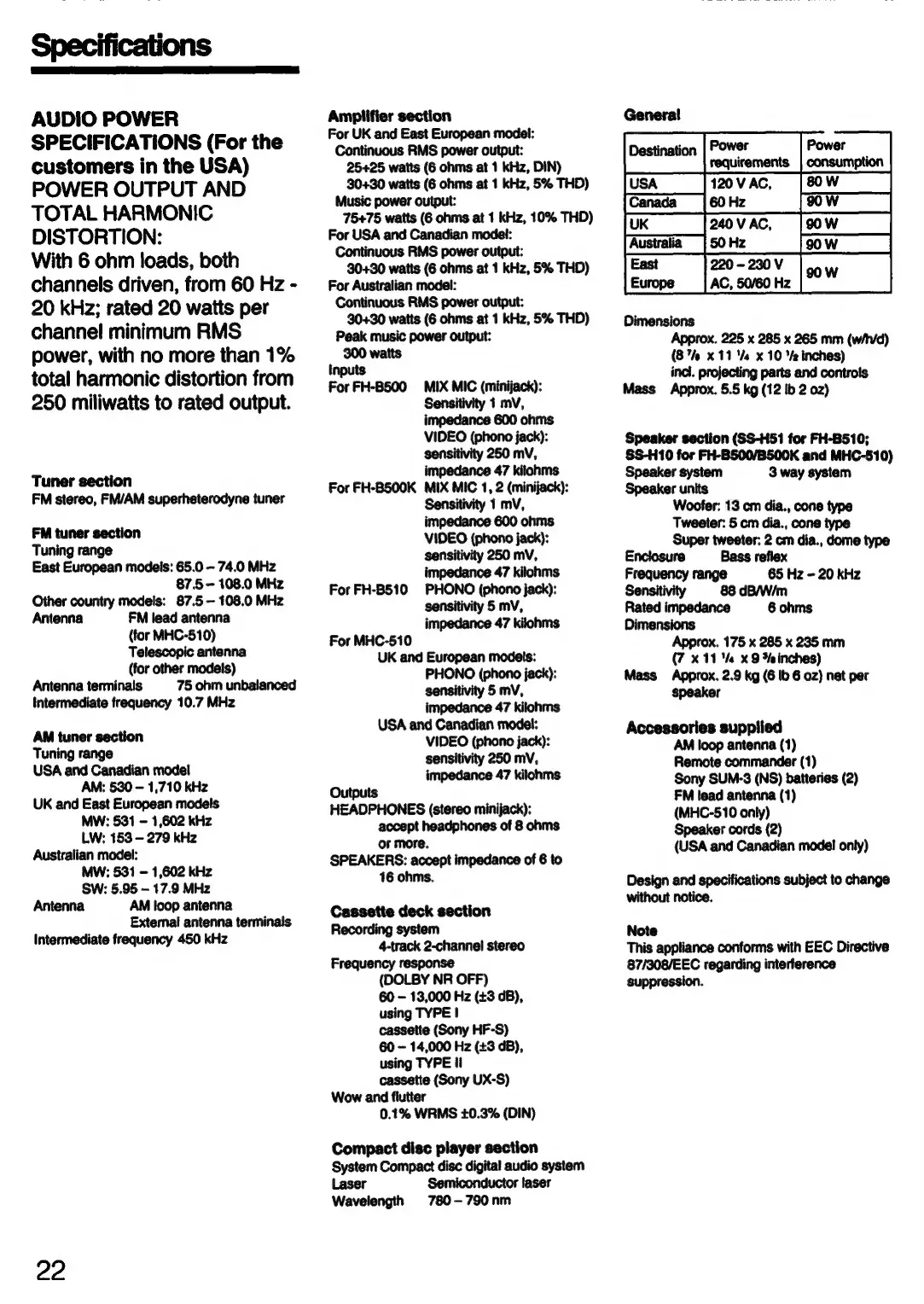

Specifications
AUDIO POWER
SPECIFICATIONS (For the
customers in the USA)
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, both
channels driven, from 60 Hz -
20 kHz; rated 20 watts per
channel minimum RMS
power, with no more than 1%
total harmonic distortion from
250 miliwatts to rated output.
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
East European models: 65.0 - 74.0 MHz
87.5 - 108.0 MHz
Other country models: 87.5 — 108.0 MHz
Antenna FM lead antenna
(for MHC-510)
Telescopic antenna
(for other models)
Antenna terminals 75 ohm unbalanced
intermediate frequency 10.7 MHz
AM tuner section
Tuning range
USA and Canadian model
AM: 530 - 1,710 kHz
UK and East European models
MW: 531 - 1,602 kHz
LW: 153 - 279 kHz
Australian model:
MW: 531 - 1,602 kHz
SW: 5.95 — 17.9 MHz
Antenna AM loop antenna
External antenna terminals
Intermediate frequency 450 kHz
22
Amplifier section
For UK and East European model:
Continuous RMS power output:
25+25 watts (6 ohms at 1 kHz, DIN)
30+30 watts (6 ohms at 1 kHz, 5% THD)
Music power output:
75+75 watts (6 ohms at 1 kHz, 10% THD)
For USA and Canadian model:
Continuous RMS power output:
30+30 watts (6 ohms at 1 kHz, 5% THD)
For Australian model:
Continuous RMS power output:
30+30 watts (6 ohms at 1 kHz, 5% THD)
Peak music power output:
300 watts
Inputs
For FH-B500 MIX MIC (minijack):
Sensitivity 1 mV,
impedance 600 ohms
VIDEO (phono jack):
For FH-BS500K MIX MIC 1, 2 (minijack):
Sensitivity 1 mV,
impedance 600 ohms
VIDEO (phono jack):
sensitivity 250 mV,
impedance 47 kilohms
PHONO (phono jack):
sensitivity 5 mV,
impedance 47 kiiohms
For FH-B510
For MHC-510
UK and European models:
PHONO (phono jack):
sensitivity 5 mV,
impedance 47 kilohms
USA and Canadian model:
VIDEO (phono jack):
sensitivity 250 mV,
impedance 47 kitohms
Outputs
HEADPHONES (stereo minijack):
accept headphones of 8 ohms
or more.
SPEAKERS: accept impedance of 6 to
16 ohms.
Cassette deck section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
60 - 13,000 Hz (3 dB),
using TYPE |
cassette (Sony HF-S)
60 — 14,000 Hz (+3 dB),
using TYPE Ii
cassette (Sony UX-S)
Wow and flutter
0.1% WRMS +0.3% (DIN)
Compact disc player section
System Compact disc digital audio system
Laser Semiconductor laser
Wavelength 780-790 nm
Dimensions
Approx. 225 x 285 x 265 mm (w/h/d)
(8 %/e x 11 Ya x 10 ‘Ye inches)
incl. projecting parts and controls
Mass Approx. 5.5 kg (12 Ib 2 oz)
Speaker section (SS-H51 for FH-B510;
SS-H10 for FH-B500/B500K and MHC-510)
Speaker system 3 way system
Speaker units
Woofer: 13 cm dia., cone type
Tweeter: 5 cm dia., cone type
Super tweeter: 2 cm dia., dome type
Enclosure Bass reflex
Frequency range 65 Hz - 20 kHz
Sensitivity 88 dB/Wim
Rated impedance 6 ohms
Dimensions
Approx. 175 x 285 x 235 mm
(7 x 11% x9 Yeinches)
Mass Approx. 2.9 kg (6 Ib 6 oz) net per
Speaker
Accessories supplied
AM loop antenna (1)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
FM lead antenna (1)
(MHC-510 only)
Speaker cords (2)
(USA and Canadian model only)
Design and specifications subject to change
without notice.
Note
This appliance conforms with EEC Directive
87/308/EEC regarding interference
suppression.
