Sony FH-B500 - Parts Identification

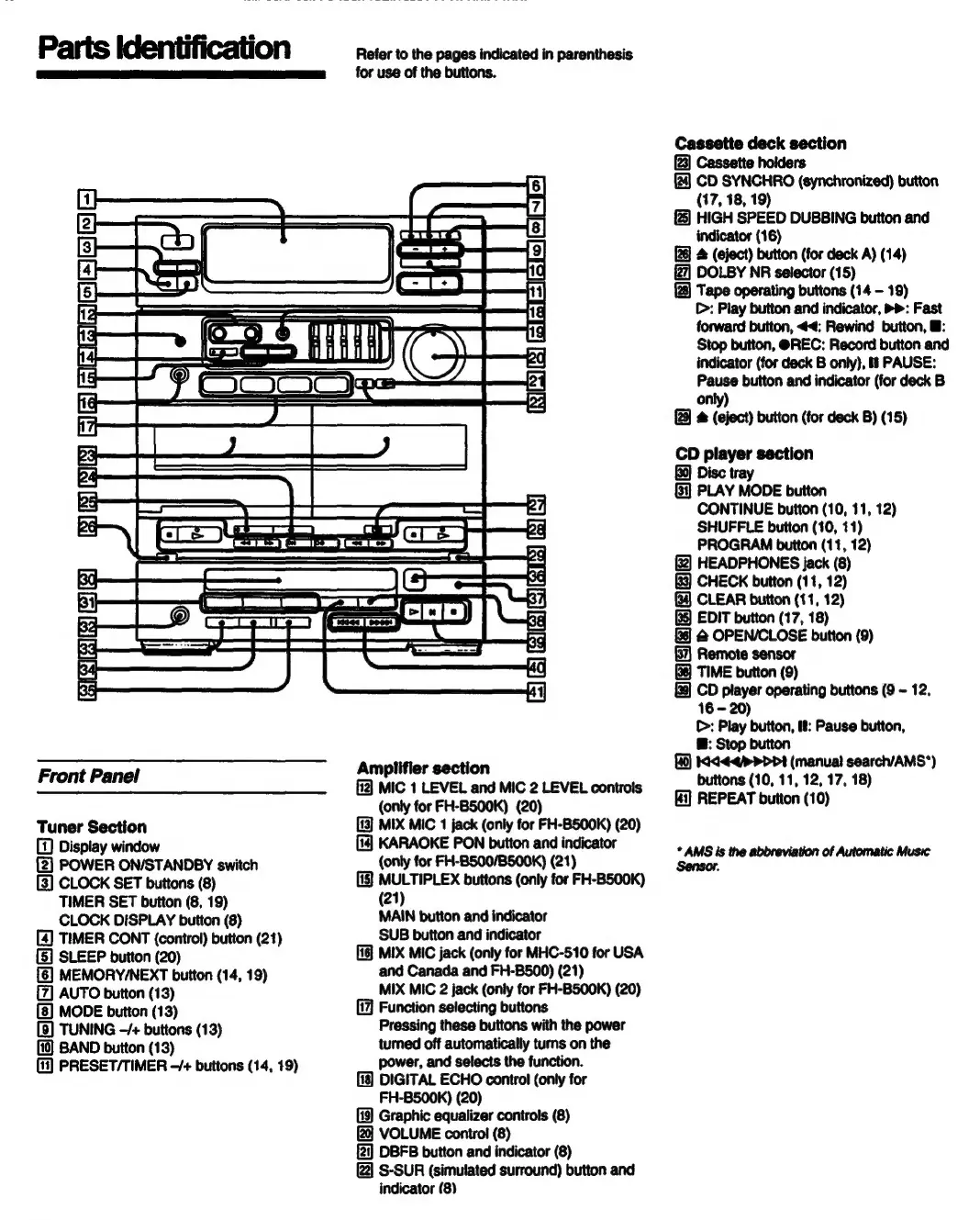

Parts Identification
URSA) Ba | Ea Fal FS || | |
bs
:
it
arene i pee =i
EE—E—ES ee —
a a wm a |
[9 Se ee
na es
esitgs SIS]
RY
dl
|
Front Panel
Tuner Section
[1) Display window
(2] POWER ON/STANDBY switch
[3] CLOCK SET buttons (8)
TIMER SET button (8, 19)
CLOCK DISPLAY button (8)
TIMER CONT (control) button (21)
{5] SLEEP button (20)
MEMORY/NEXT button (14, 19)
AUTO button (13)
MODE button (13)
TUNING -/+ buttons (13)
BAND button (13)
(i) PRESET/TIMER -/+ buttons (14, 19)
Refer to the pages indicated in parenthesis
for use of the buttons.
zee
Amplifier section
fi2] MIC 1 LEVEL and MIC 2 LEVEL controls
(only for FH-BS00K) (20)
[13] MIX MIC 1 jack (only for FH-BS00K) (20)
[J KARAOKE PON button and indicator
(only for FH-B500/BS500K) (21)
[13] MULTIPLEX buttons (only for FH-BS00K)
(21)
MAIN button and indicator
SUB button and indicator
MIX MIC jack (only for MHC-510 for USA
and Canada and FH-B500) (21)
MIX MIC 2 jack (only for FH-BS00K) (20)
[7] Function selecting buttons
Pressing these buttons with the power
turned off automatically turns on the
power, and selects the function.
DIGITAL ECHO control (only for
FH-BS00K) (20)
Graphic equalizer controls (8)
VOLUME control (8)
(2) DBFB button and indicator (8)
S-SUR (simulated surround) button and
indicator (8)
Cassette deck section
Cassette holders
2 CD SYNCHRO (synchronized) button
(17, 18, 19)
HIGH SPEED DUBBING button and
indicator (16)
& (eject) button (for deck A) (14)
DOLBY NR selector (15)
Tape operating buttons (14 - 19)
CD: Play button and indicator, >>: Fast
forward button, <4: Rewind button, @:
Stop button, @REC: Record button and
indicator (for deck B only), ii PAUSE:
Pause button and indicator (for deck B
only)
# (eject) button (for deck B) (15)
CD player section
Disc tray
3] PLAY MODE button
CONTINUE button (10, 41, 12)
SHUFFLE button (10, #1)
PROGRAM button (11, 12)
HEADPHONES jack (8)
CHECK button (11, 12)
CLEAR button (11, 12)
EDIT button (17, 18)
@ OPEN/CLOSE button (9)
Remote sensor
TIME button (9)
CD player operating buttons (9 ~ 12,
16 - 20)
CD: Play button, tf: Pause button,
®: Stop button
1444/PD>pPt (manual search/AMS*)
buttons (10, 11, 12, 17, 18)
fi] REPEAT button (10)
* AMS is the abbreviation of Automatic Music
Sensor.
