FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
6

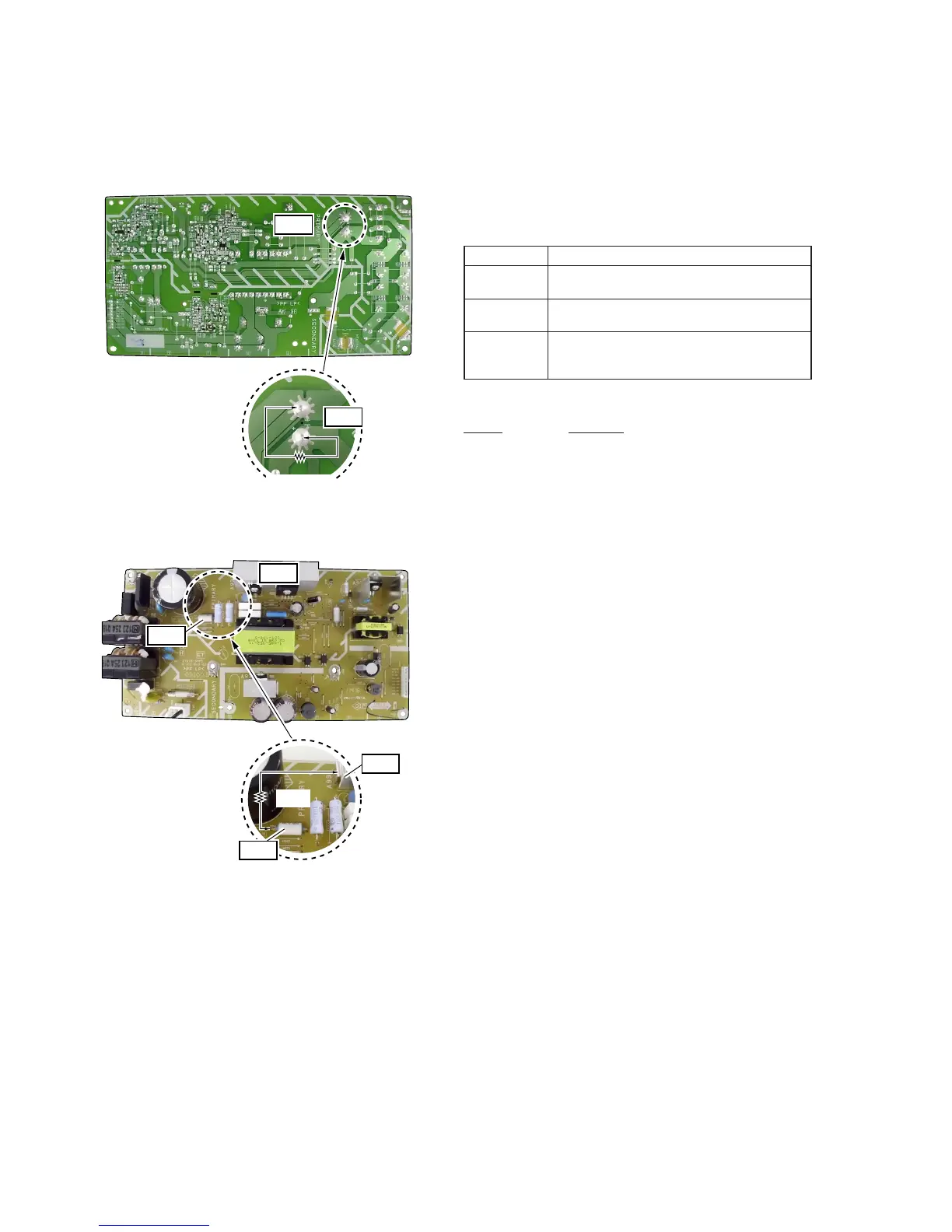

3. GTK33-SMPS board (Ref. No. C914) (GTK33iP only)
The GTK33-SMPS board can be discharged by two kinds of fol-
lowing methods.
1. Both ends of C914.
– GTK33-SMPS Board (Conductor Side) –
C914
C914
800 :/2 W
2. Heat sink (A930) and R914.
A930
0 :
– GTK33-SMPS Board (Component Side) –
R914
R914
A930
BOND FIXATION OF ELECTRIC PARTS
When MAIN board is replaced or the following object parts are
replaced, it is necessary to fi x parts to the boards by using a speci-
fi ed bond without fail.
• Object boards
Complete MAN board
• Object parts
Board Ref. No.
GTK11-SMPS
C905, C914, C967, C969, L903, L904, R933,
R934, T901, VDR901
GTK33-SMPS
C905, C911, C912, C914, C943, C944, C986,
L901, L902, R930, R931, T901, T903, VDR901
MAIN
C730, C731, C732, C733, C734, C811, L703,
L704, L705, L706, L707, L708, L709, L710,
R727
• Use bond
Part No. Description
7-432-912-52 BOND, SONY (SC-608LV)
• Parts position
1. MAIN board (page 7)
2. GTK11-SMPS board (GTK11iP only) (page 8)
3. GTK33-SMPS board (GTK33iP only) (page 9)
