FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
8

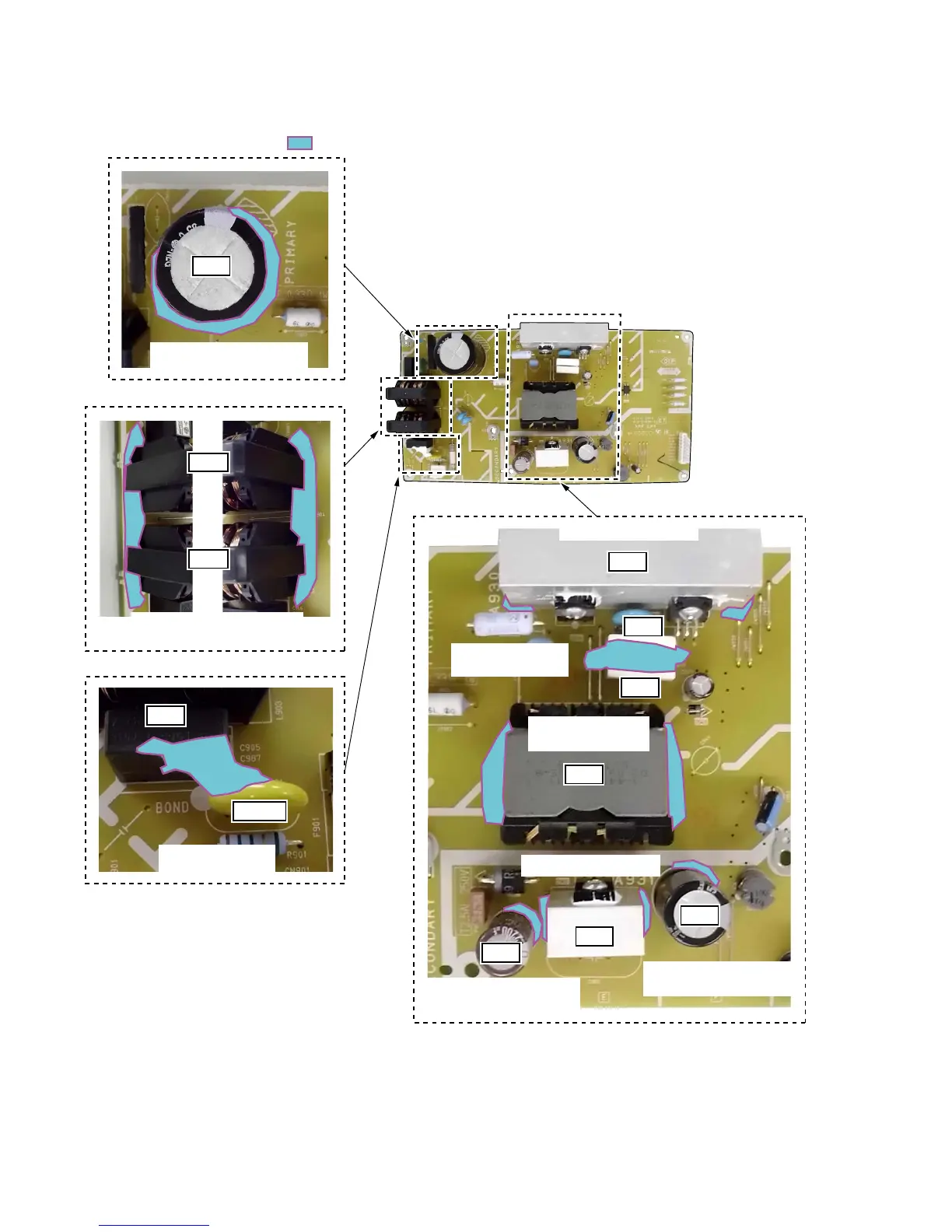

2. GTK11-SMPS board (GTK11iP only)
– GTK11-SMPS Board (Component Side) –
C905
VDR901
C914
A930
A931
C967
T901
R933
R934
C969
Fix the 180-degree or larger
circumferences of C914.
Fix the 90-degree or larger
circumferences of C967.
Fix the 90-degree or larger
circumferences of C969.
Fix both the sides of
L903 and L904 with the board.
Fix both the sides of
T901 with the board.
Fix A931 with the board.
Fix A930 with the board.
Fix R933 and R934
with the board.
Apply bond on
C905 and VDR901.
L904
L903
The portion which applies bond:
To Next Page
