FST-GTK11iP/GTK33iP/RDH-GTK11iP/GTK33iP
9

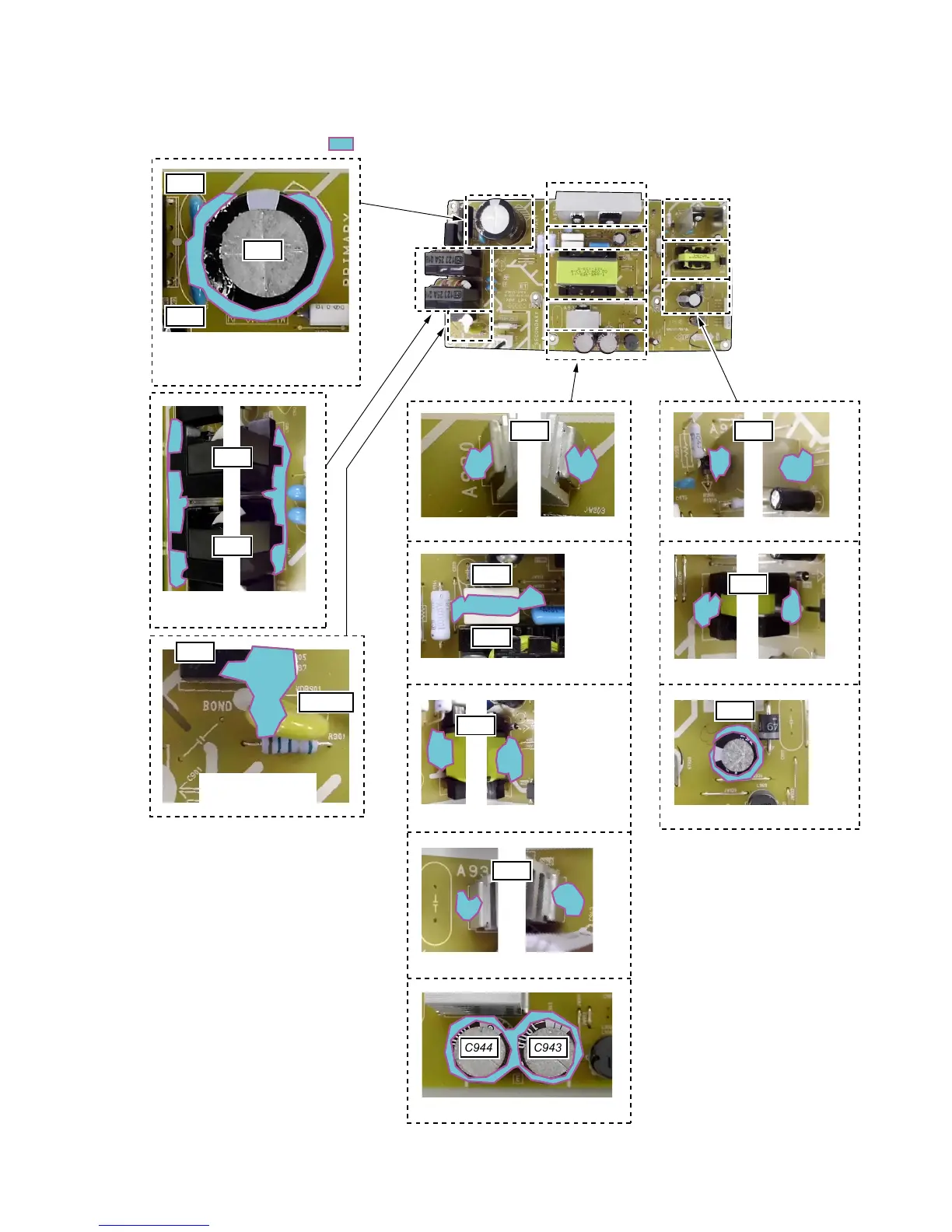

3. GTK33-SMPS board (GTK33iP only)
– GTK33-SMPS Board (Component Side) –
A932A930
L902
L901
C905
VDR901
A931
C986
C944 C943
T901
T903
R930
R931
C914
C911
C912
Fix the 180-degree or larger
circumferences of C914, and
fix C911 and C912 with the board.
Fix circumferences of C986.
Fix circumferences of C943 and C944.
Fix both the sides of
L901 and L902 with the board.
Fix A930 with the board.
Fix A931 with the board.
Fix T901 with the board.
Fix T903 with the board.Fix R930 and R931 with the board.
Fix A932 with the board.
Apply bond on
C905 and VDR901.
The portion which applies bond:
To Next Page
