Sony HBD-DZ310 - DVD Mechanism Deck Section; Tray

HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
16

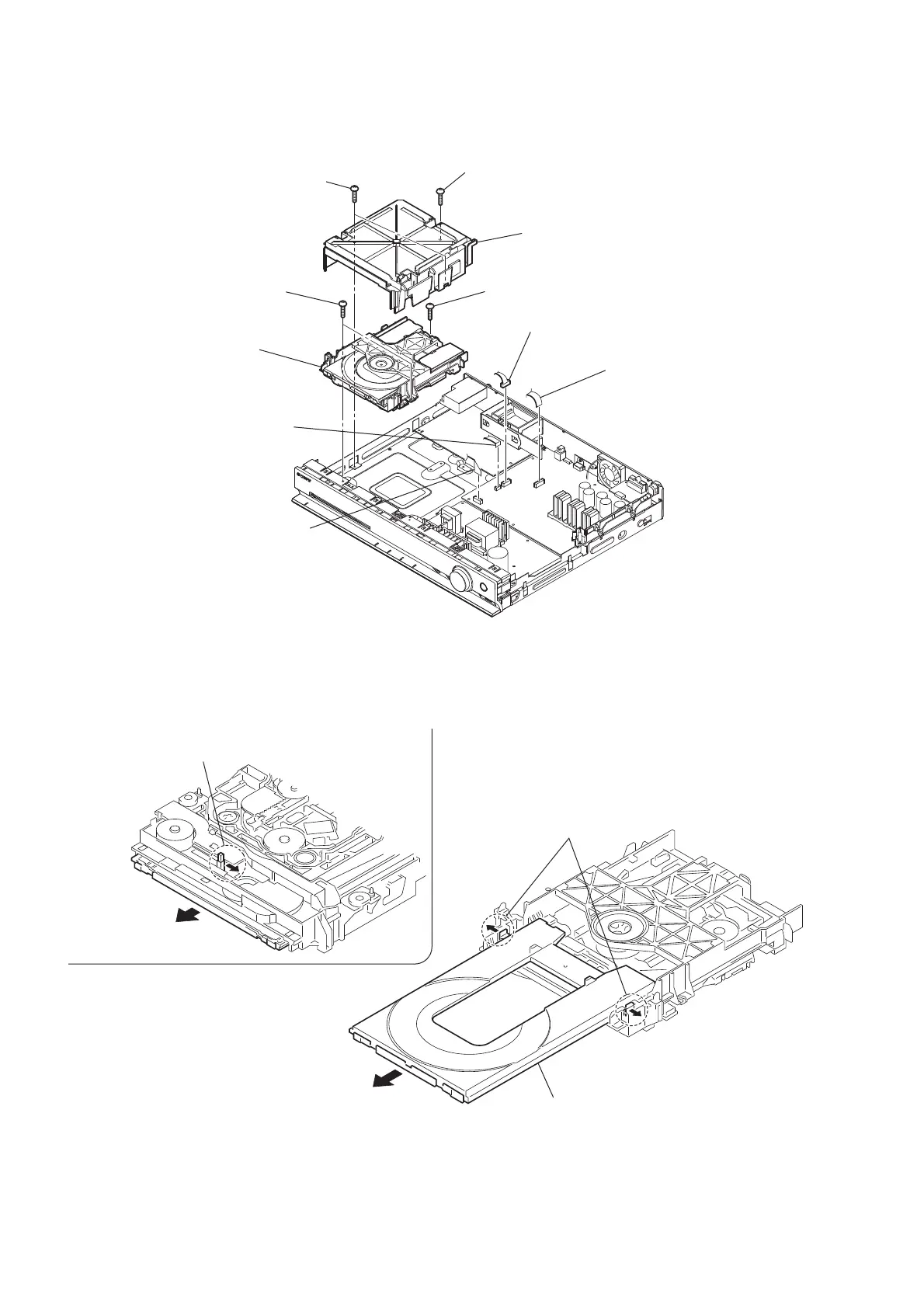

2-11. DVD MECHANISM DECK SECTION
2-12. TRAY
4
2
3 two claws
5 tray
1 Move the chuck cam
in the direction of the arrow.
bottom side
3 CN1501 (6P)
5 two screws
(+BV3 (3-CR))
8 two screws
(+BV3 (3-CR))
6 screw
(+BV3 (3-CR))
9 screw
(+BV3 (3-CR))
7 cover (CDM-DSZ)
0 DVD mechanism deck
2 wire (flat type) (5 core)
(CN1502)
4 wire (flat type) (24 core)
(CN1101)
1 wire (flat type) (13 core) (CN507)
(DZ170/DZ171/DZ175)
wire (flat type) (15 core) (CN506)
(DZ310/DZ510/DZ610/DZ810)
