Sony HBD-DZ310 - DVD Mechanism Deck Section (CDM85 MB-DVBU102)

74
HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
251 A-1749-923-A CDM85 (MB) ASSY
252 3-088-371-01 BELT
253 4-974-725-11 SCREW (M1.7X2.5), P
254 4-674-137-11 SCREW (PTP2X5)
255 2-634-618-01 INSULATOR
256 3-087-599-01 SCREW, INSULATOR
0 257 8-820-321-12 OPTICAL PICK-UP (KHM-313CAA/C2RP1)
258 1-828-773-51 WIRE (FLAT TYPE) (24 CORE)
259 3-113-851-01 SHEET (E12)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

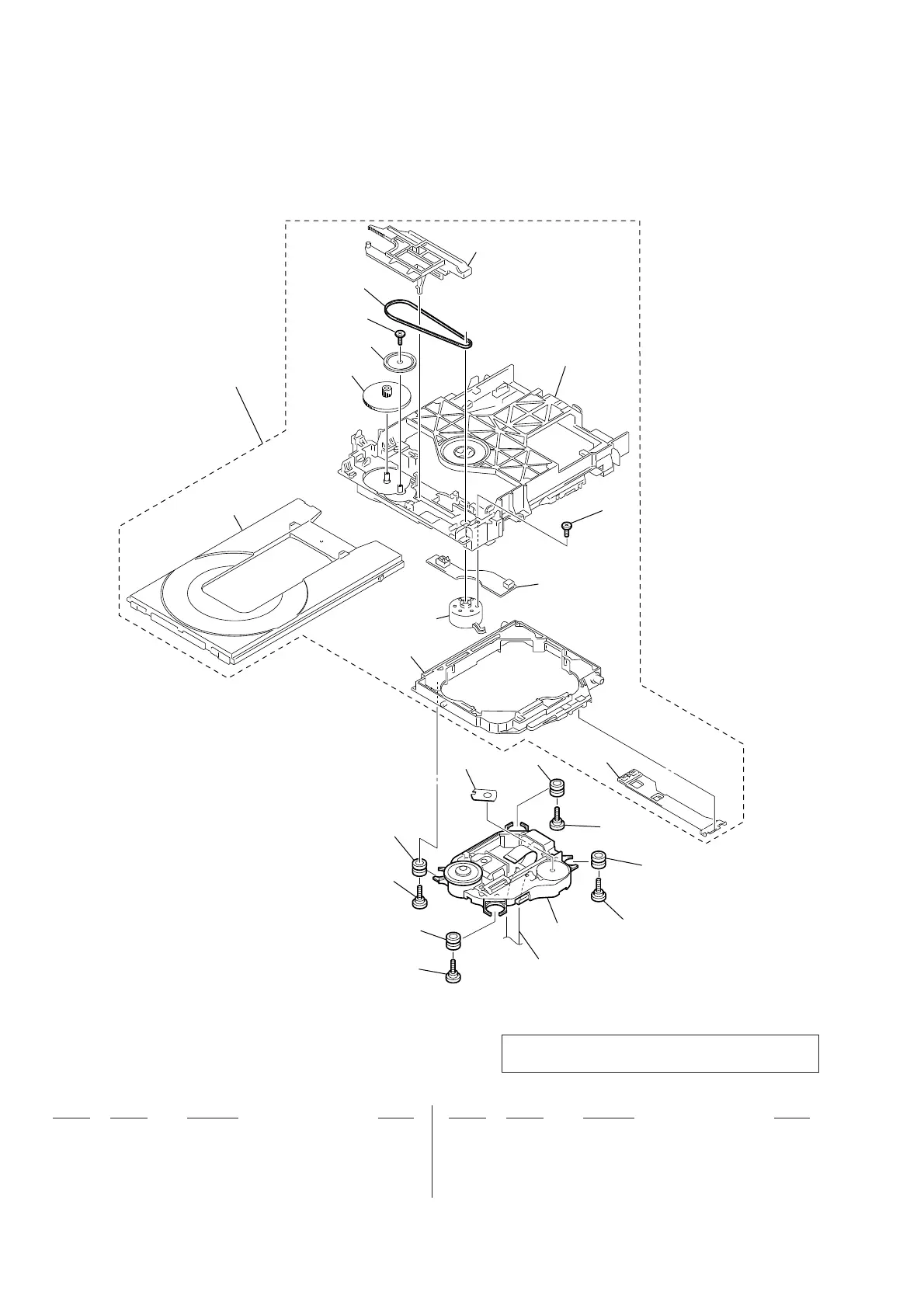

6-6. DVD MECHANISM DECK SECTION
(CDM85MB-DVBU102)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-203 board)
not
supplied
251
254
252
253
255
255
255
255
257
258
259
256
256
256
256
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
